■ CIS model
9.17.2 Battery
(1) Remove the Battery. (for the model supporting the Battery only)
(2) Disconnect the connector of the Battery from the Connector of the Battery harness.
(3) Disconnect the Connector of the Battery harness from the Main PCB.

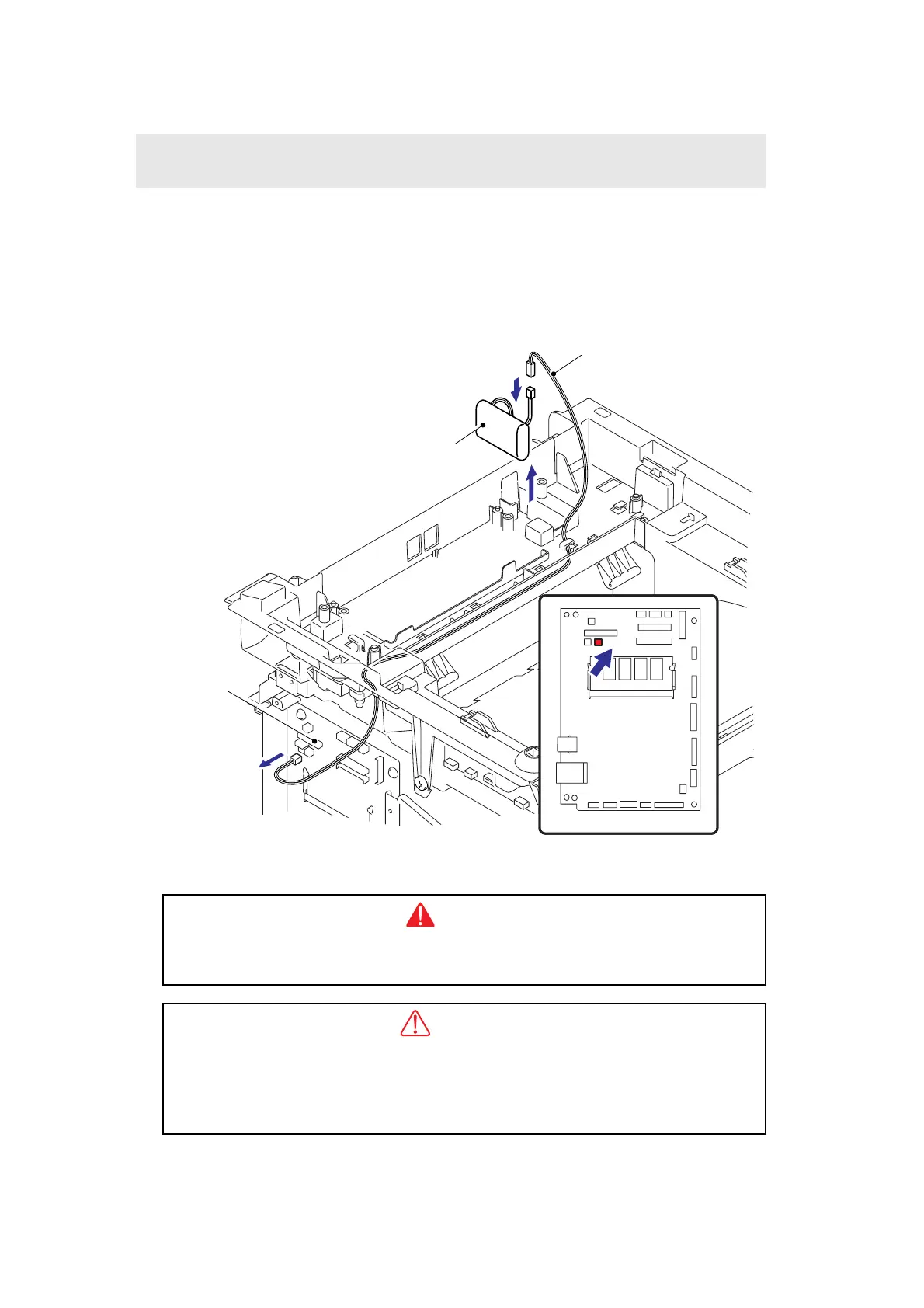

Fig. 5-201
Note:
• In the case of the CCD model, refer to "9.17.1 Battery".
DANGER
• Never disassemble or recharge the battery.
• Never dispose of the battery in fire.
WARNING
• There is a danger of explosion if the battery is incorrectly replaced.
• When replacing the battery, use the spare part authorized by Brother Industries.
• Batteries used should be disposed of in accordance with the local codes and
regulations.
Main PCB
Main PCB
Battery harness
2
1
3
Battery
