Brother MFC-8880DN Service Manual

5-1
Confidential
1. SAFETY PRECAUTIONS
To avoid creating secondary problems by mishandling, follow the warnings and precautions
below during maintenance work.
• Be careful not to lose screws, washers, or other parts removed.
• Be sure to apply grease to the gears and applicable positions specified in this chapter.
• When using soldering irons or other heat-generating tools, take care not to accidentally
damage parts such as wires, PCBs and covers.
• Static electricity charged in your body may damage electronic parts. When transporting
PCBs, be sure to wrap them in conductive sheets.
• When replacing the PCB and all the other related parts, put on a grounding wrist band and
perform the job on a static mat. Also take care not to touch the conductor sections on the
flat cables or on the wire harness.
• When connecting or disconnecting cable connectors, hold the connector body, not the
cables. If the connector has a lock, release the connector lock first to release it.
• After a repair, check not only the repaired portion but also all connectors. Also check that
other related portions are functioning properly before operational checks.
• After disconnecting flat cables, check that each cable is not damaged at its end or short-
circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check that the
cables are not at an angle.
WARNING
• Always turn off the power switch and unplug the power cord from the power outlet
before accessing any parts inside the machine.

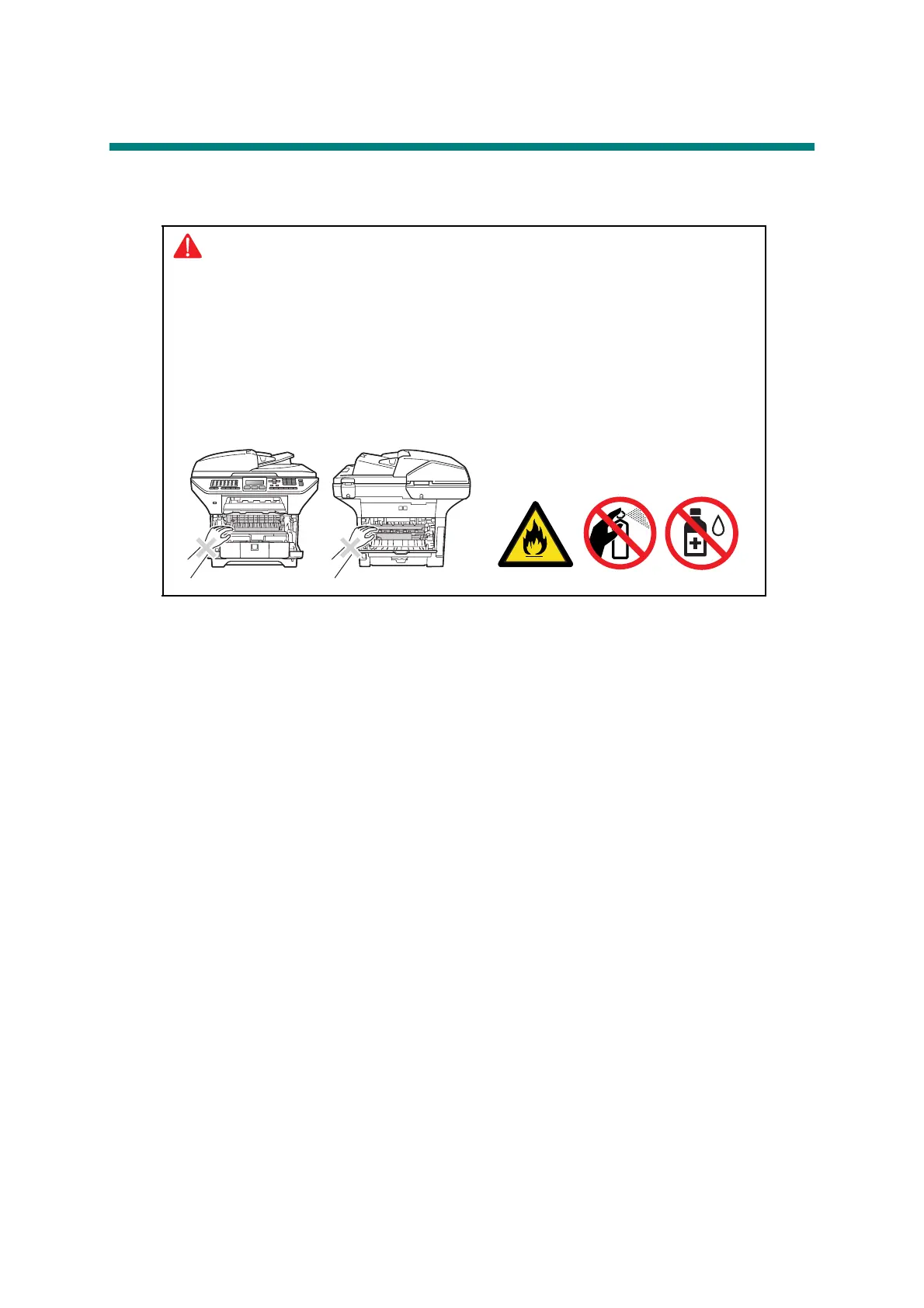

• When opening the front cover or back cover to access any parts inside the machine,
never touch the shaded parts shown in the following figures.
• DO NOT use flammable substances such as alcohol, benzine, thinner or any type
of spray to clean the inside or outside of the machine. Doing this may cause a fire or
electrical shock.

Brother MFC-8880DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	E-mail, E-mail Server, File, FTP, Image, OCR, USB
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16
Time to first copy (black, normal)	10.5 s
Copy speed (black, normal quality, A4)	30 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	300
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	64 MB
Card reader integrated	No
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	LCD
Market positioning	Business
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Print, Scan
Maximum internal memory	0.576 GB
Color all-in-one functions	Scan
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	85 W
Power consumption (PowerSave)	18 W
Power consumption (average operating)	680 W
Maximum duty cycle	- pages per month
Package weight	22100 g
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Ultimate, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
