Brother MFC-8880DN - LF Roller 1 ASSY

5-115
Confidential

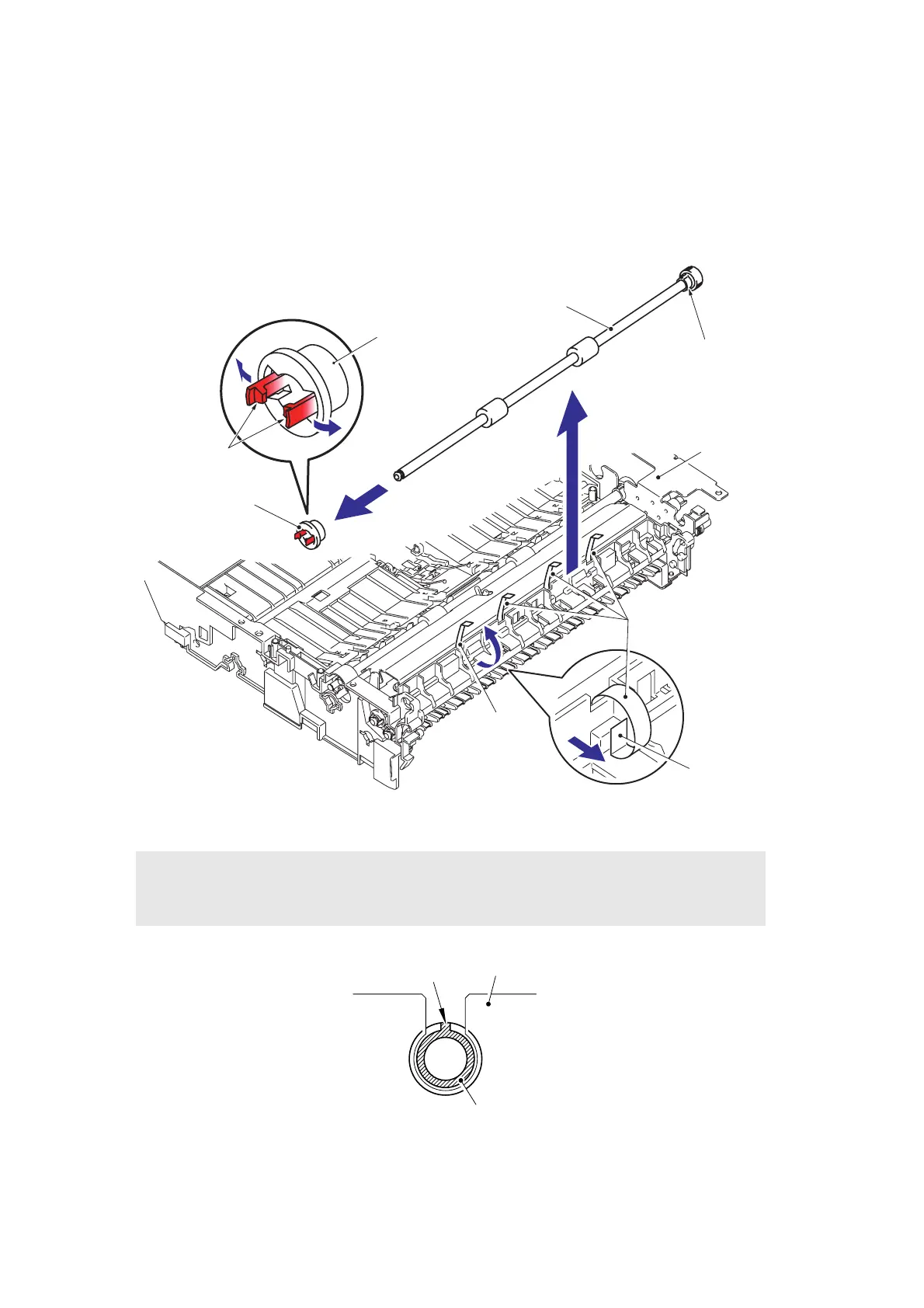

9.8.57 LF Roller 1 ASSY
(1) Remove the End “a” of the LF2 film from the ADF chute ASSY.
(2) Release the Hook of the Conductive Bushing N to remove the Conductive Bushing N.
(3) Remove the Bushing 6 from the ADF chute ASSY, and remove the LF roller 1 ASSY
from the ADF chute ASSY.
Fig. 5-124
Fig. 5-125
Assembling Note:
• When assembling the LF roller 1 ASSY, assemble the Bushing 6 with aligning the Boss
of the Bushing 6 with the notch on the ADF chute ASSY.
2a
2a
2b
3
1
Conductive Bushing N
LF roller 1 ASSY
Conductive Bushing N
ADF chute ASSY
LF2 film
LF2 film
"a"
Hook
Bushing6
Boss
ADF chute ASSY
Bushing 6
