9.48 PE EG Sensor ASSY
(1) Remove the three bind B M4x12 Taptite screws, and remove the MP feed frame.

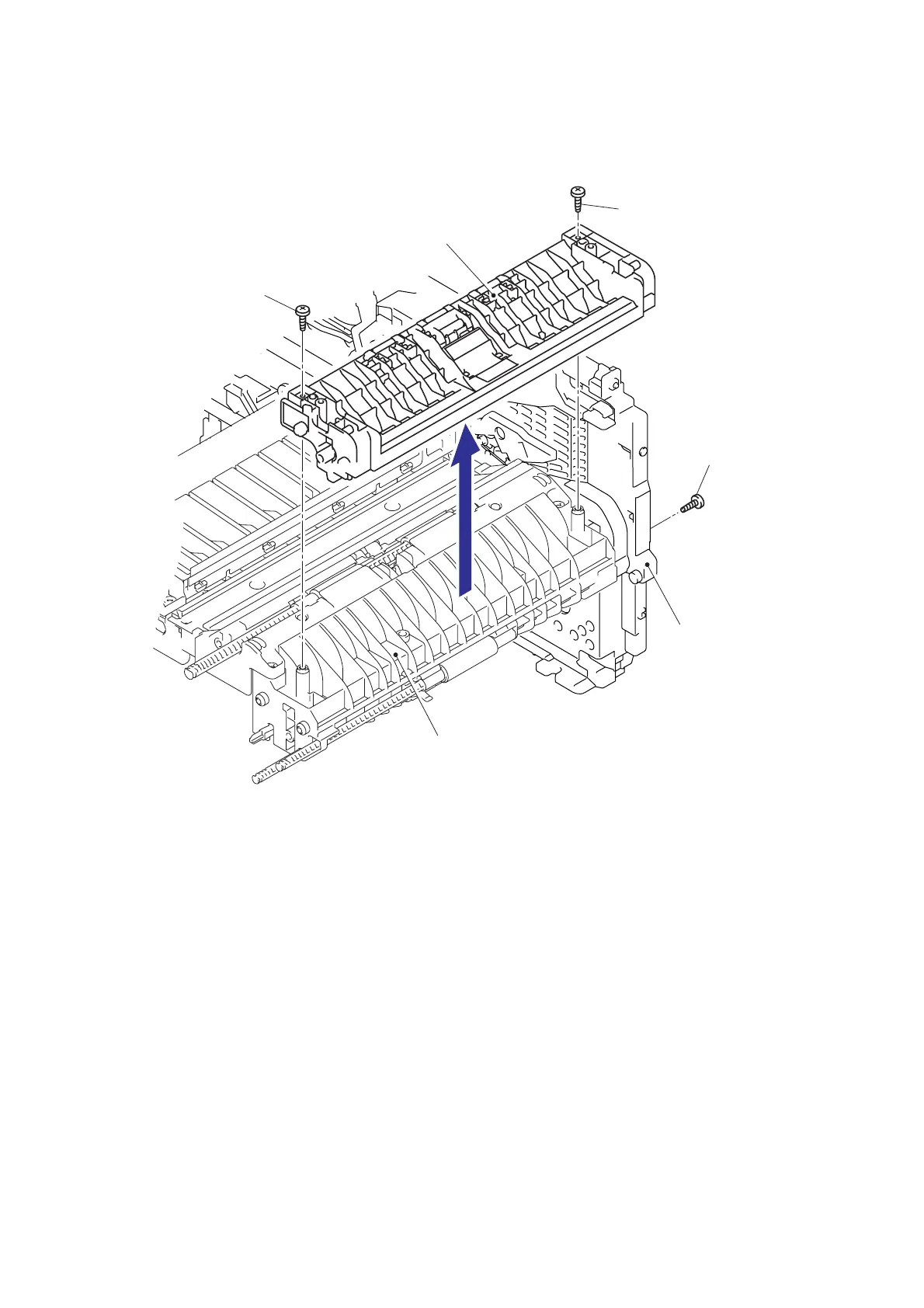

Fig. 5-288
Paper feed frame
Frame R
MP feed frame
Taptite bind B M4x12
Taptite bind B M4x12
Taptite, bind B M4x12
