Brother MFC-8880DN - LF Roller 1 ASSY

5-71
Confidential

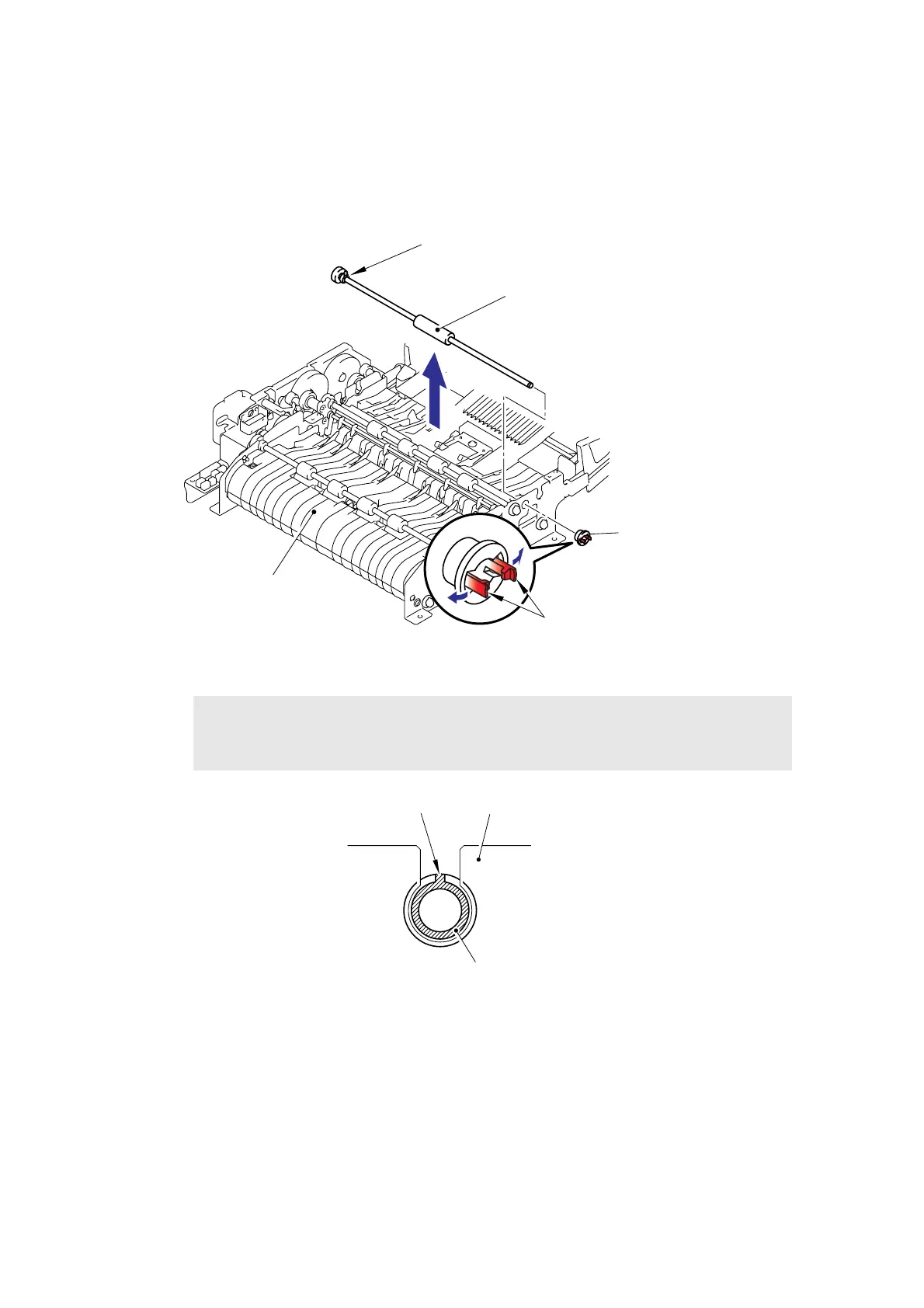

9.8.13 LF Roller 1 ASSY
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Release the Lock lever and then remove the Bushing from the ADF chute ASSY, and
remove the LF roller 1 ASSY from the ADF chute ASSY.
Fig. 5-55
Fig. 5-56
Assembling Note:
• When assembling the LF roller 1 ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Hooks
Bushing
LF roller 1 ASSY
ADF chute ASSY
Conductive bushing A
<Front side>
Boss ADF chute ASSY
Bushing
