Brother MFC-8880DN Service Manual

2-2
Confidential
2. ELECTRONICS

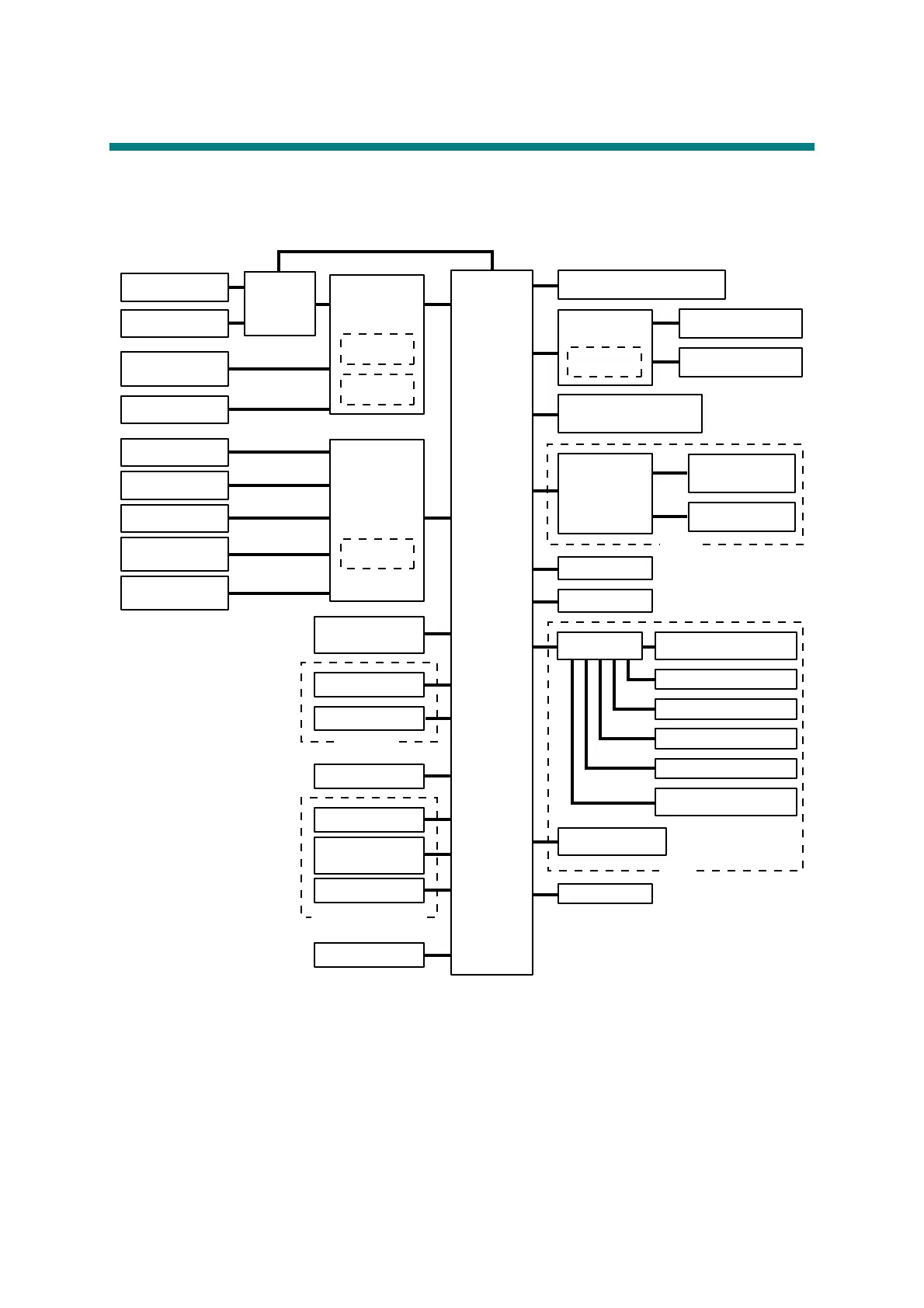

2.1 General Block Diagram
Fig. 2-2
High-voltage
power supply
Low-voltage power supply
Fuser thermistor
Main PCB
Regist front
sensor
Main fan
LT sensor PCB
(PE+PEDGE)
Regist rear
sensor
Toner
sensor PCB
(Light
reception)
(Main fan)
Toner LED PCB
(Light emission)
Power supply fan
Front cover
sensor ASSY
Wireless LAN
(Wireless LAN model)
MP sensor PCB
Tray1 solenoid
Regist solenoid
Main motor
Panel PCB
DX solenoid
DX unit sensor PCB
MP solenoid
LT solenoid
Front relay
PCB
New toner
sensor
Rear relay
PCB
Paper eject
sensor
Document eject sensor
(CIS model)
LT PCB
LT1
Polygon motor
Laser diode PCB
Sensor PCB
(PE+PEDGE)
Document front sensor 1
Document front sensor 2
Document rear sensor
Switch back sensor
Document scanner
unit ASSY
ADF cover open sensor
(CIS model)
ADF
Laser unit
ADF relay
PCB
FB cover sensor
(CCD model)
Battery
NCU PCB
Speaker ASSY
Scanner motor
Scanner module
Home position
sensor (CCD model)

Brother MFC-8880DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	E-mail, E-mail Server, File, FTP, Image, OCR, USB
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16
Time to first copy (black, normal)	10.5 s
Copy speed (black, normal quality, A4)	30 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	300
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	64 MB
Card reader integrated	No
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	LCD
Market positioning	Business
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Print, Scan
Maximum internal memory	0.576 GB
Color all-in-one functions	Scan
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	85 W
Power consumption (PowerSave)	18 W
Power consumption (average operating)	680 W
Maximum duty cycle	- pages per month
Package weight	22100 g
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Ultimate, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
