Document Exit Tray Sensor Cover ASSY
(1) Remove the cup B M3x10 Taptite screw, and remove the Document exit tray sensor
cover ASSY from the ADF chute ASSY.

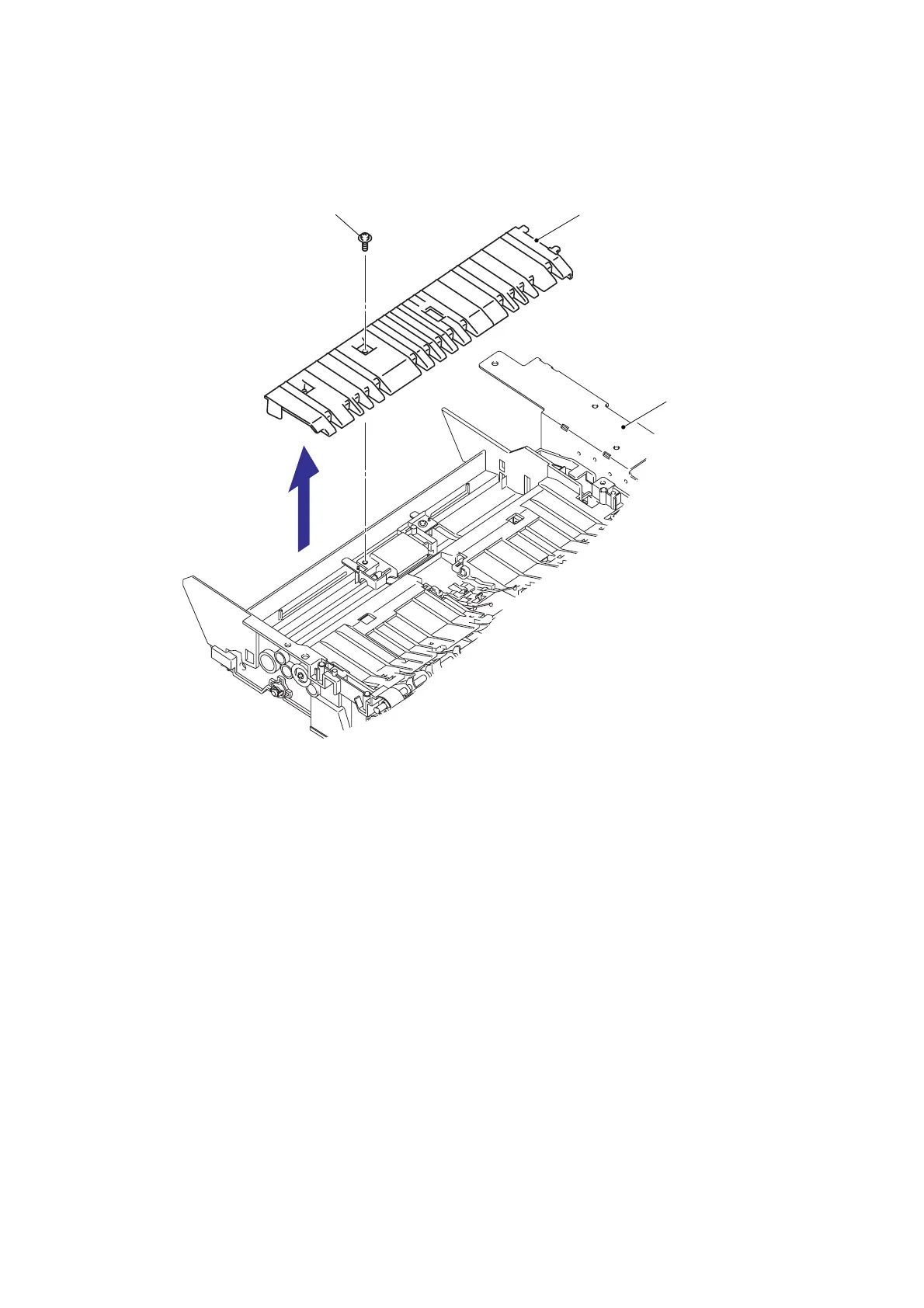

Fig. 5-128
Taptite cup B M3x10
ADF chute ASSY
Document exit tray sensor cover ASSY
