9.8.60 Document Eject Actuator / Document Eject Sensor
(1) Turn the Document exit tray sensor cover ASSY upside down.
(2) Push down the Stopper, slide the Document eject actuator to the Stopper side and pull
up the Document eject actuator.
(3) Remove the Document rear actuator/Switch back spring from the Document eject
actuator.
(4) Release the Hook of the Document eject sensor, and remove the Document eject sensor
from the Document exit tray sensor cover ASSY.
(5) Disconnect the Connector from the Document eject sensor.

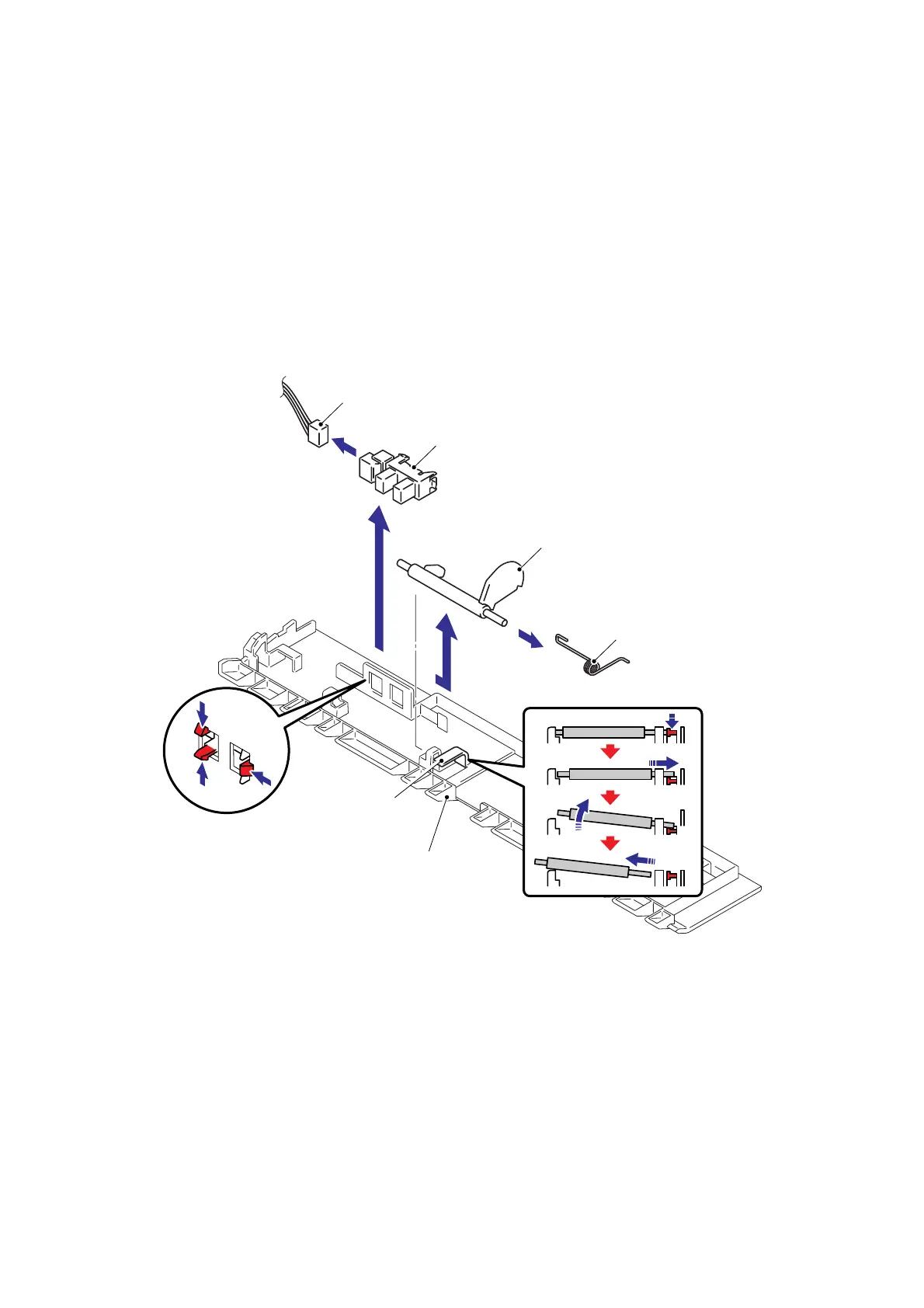

Fig. 5-129
22
33
44
55
Document exit tray sensor cover ASSY
Stopper
Document eject actuator
Document rear actuator/
Switch back spring
Document eject sensor
Connector
