Brother MFC-8880DN - Front Cover Sensor ASSY; New Toner Actuator

5-196
Confidential

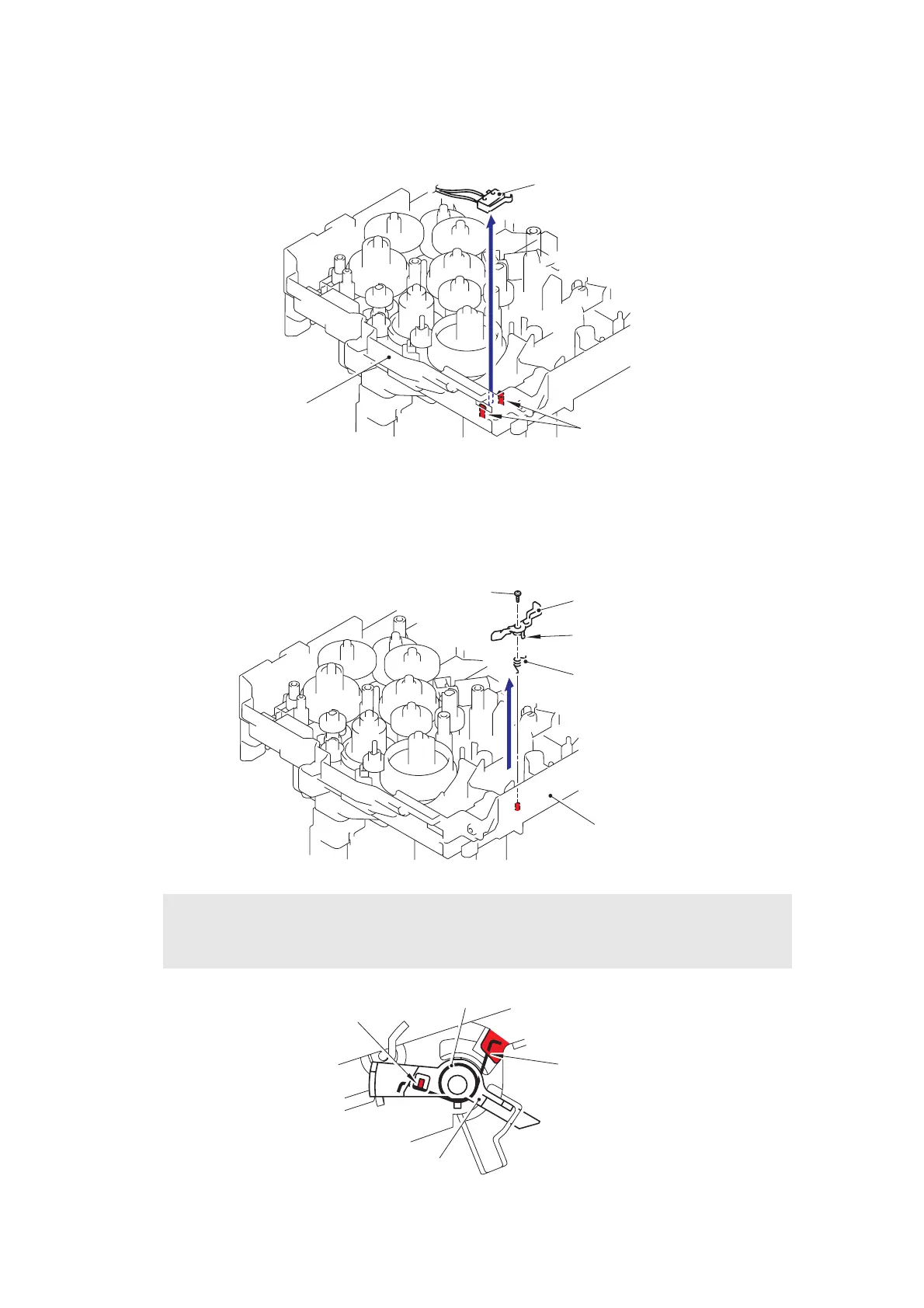

9.30 Front Cover Sensor ASSY
(1) Remove the Front cover sensor ASSY from the Frame L.
Fig. 5-235
9.31 New Toner Actuator
(1) Remove the cup B M2x6 Taptite screw.
(2) Remove the New toner actuator and the New toner actuator spring.
Fig. 5-236
Fig. 5-237
Assembling Note:
• When assembling the New toner actuator spring, ensure that its direction is correct
referring to the figure below.
Frame L
Front cover sensor ASSY
Hooks
Frame L
New toner actuator spring
New toner actuator
Taptite, cup B M2x6
Hook
New toner actuator spring
New toner actuator
Hook
Hook
