Lower Document Chute ASSY
(1) Remove the four cup B M3x10 Taptite screws, and remove the Lower document chute
ASSY from the ADF chute ASSY.

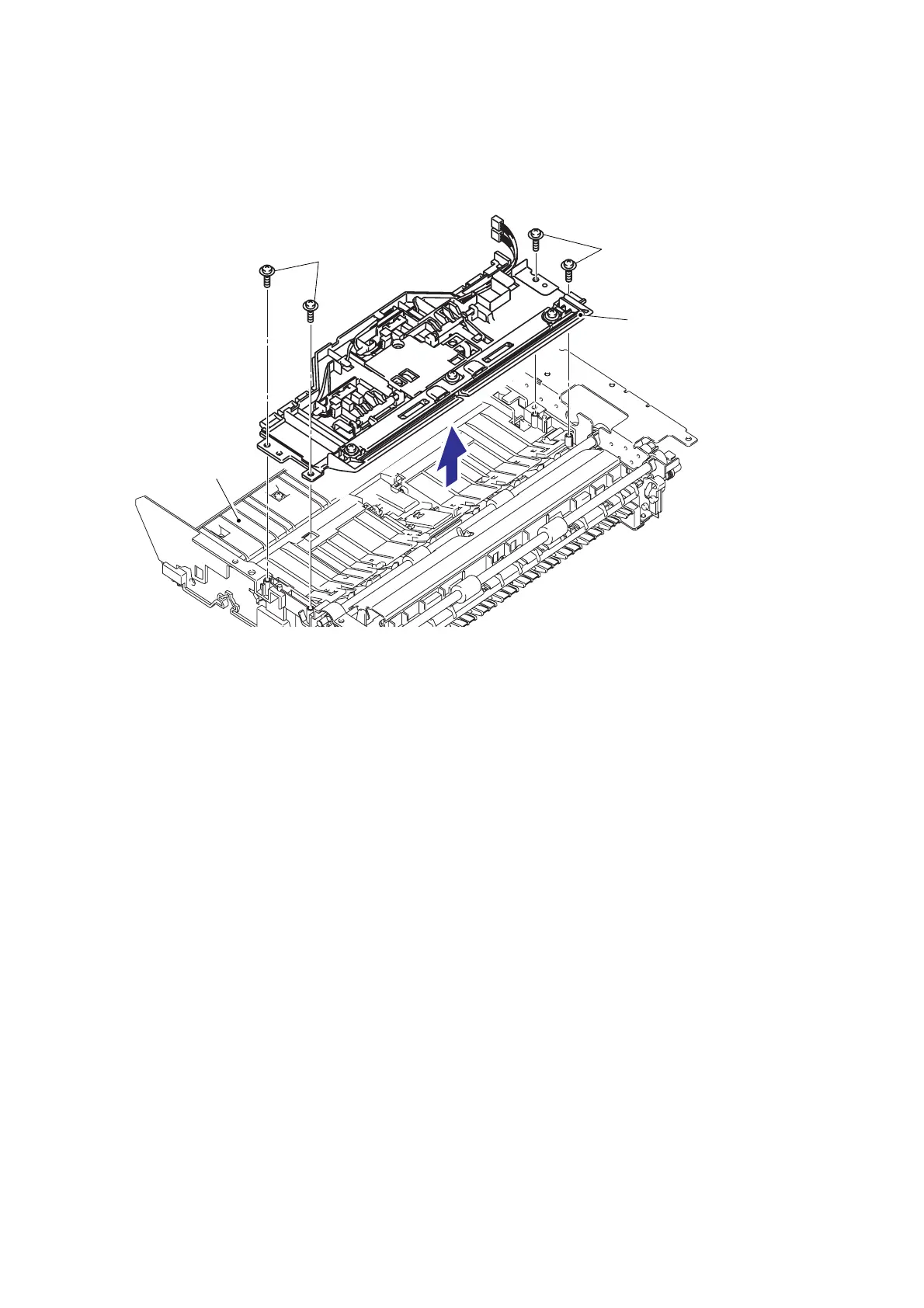

Fig. 5-118
Lower document chute ASSY
ADF chute ASSY
Taptite cup B M3x10
Taptite cup B M3x10
