Brother MFC-8880DN - Adf; ADF Gear Cover

5-99
Confidential

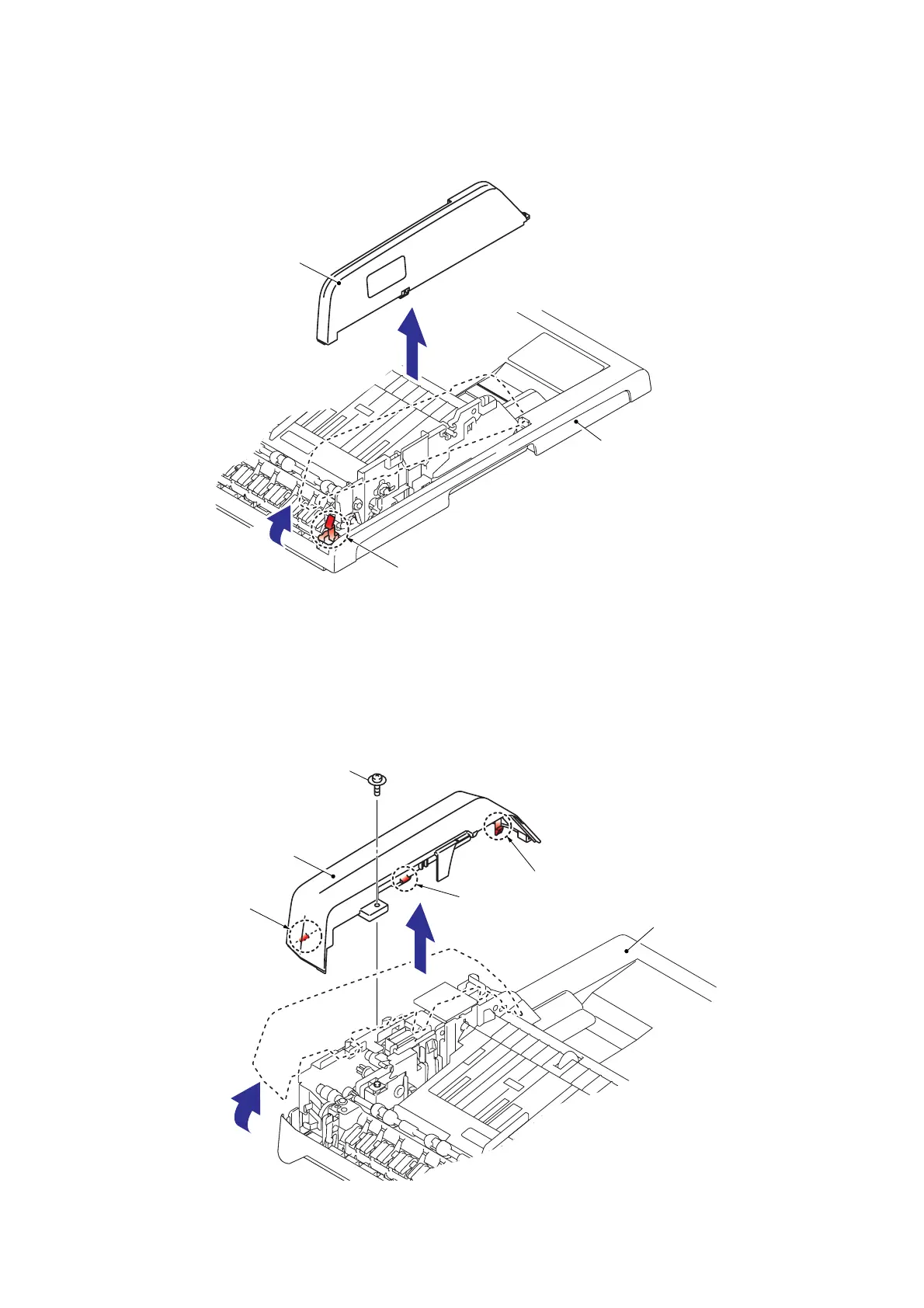

9.8.42 ADF Front Cover
(1) Release the Hook, and remove the ADF front cover from the ADF unit.
Fig. 5-104
9.8.43 ADF Gear Cover
(1) Remove the cup B M3x10 Taptite screw.
(2) Release the Hooks from the under side of the ADF unit, and remove the ADF gear cover
from the ADF unit.
Fig. 5-105
1b
1a
ADF unit
Hook
ADF front cover
2b
2a
Taptite cup B M3x10
ADF gear cover
ADF unit
Hook
Hook
Hook
