(4) Turn the Separate roller holder ASSY upside down.
(5) Push the Stopper, slide the Separation roller gear 35 to the Stopper side and remove the
Separation roller gear 35.
(6) Remove the Bushing from the Separation roller gear 35.
(7) Remove the Separate roller and the Suction roller.

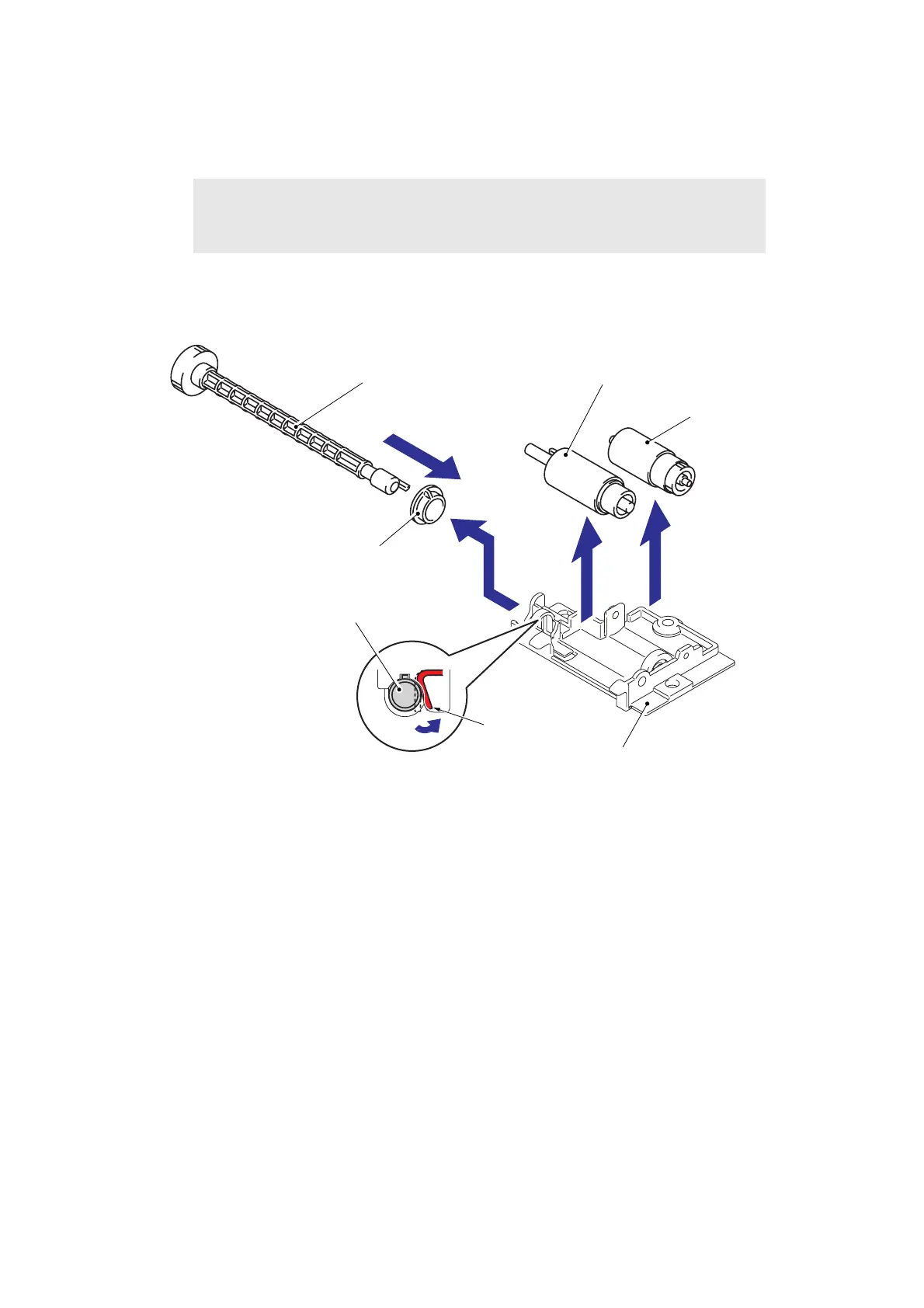

Fig. 5-117
Note:
• Align the protrusion on the Separation roller gear 35 with the notch on the
Separate roller holder ASSY, and pull out them.
5a
5b
6
Separate roller holder ASSY
Suction roller
Separate roller
Separation roller gear 35
Separation roller gear 35
Stopper
Bushing
