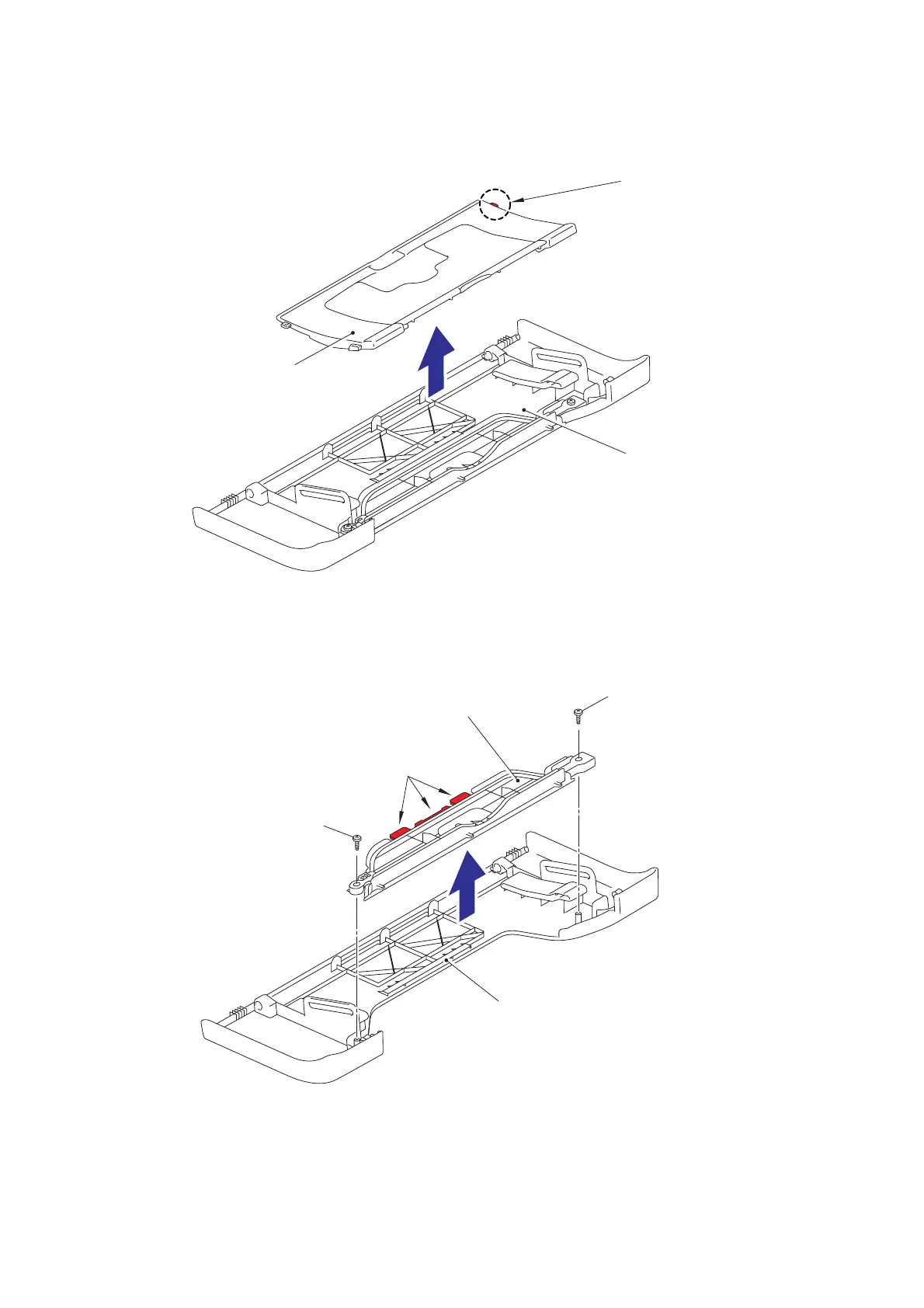

(8) Remove the Hook of the right side, and then remove the MP tray extention from the MP
tray cover ASSY.
Fig. 5-33
(9) Remove the two cup B M3x10 Taptite screws, and then remove the Emblem cover from
the MP tray cover.
Fig. 5-34
MP tray cover ASSY
MP tray extention
Hook
Taptite, cup B M3x10
Taptite, cup B M3x10
MP tray cover
Emblem cover
Hooks
