(2) Push down the Stopper, slide the Actuator switch back to the Stopper side and pull up
the Acutuator switch back.
(3) Remove the Document rear actuator/Switch back spring from the Actuator switch back.
(4) Release the Hooks of the Switch back sensor, and remove the Switch back sensor from
the Upper document sub chute ASSY.
(5) Disconnect the Connector from the Switch back sensor.

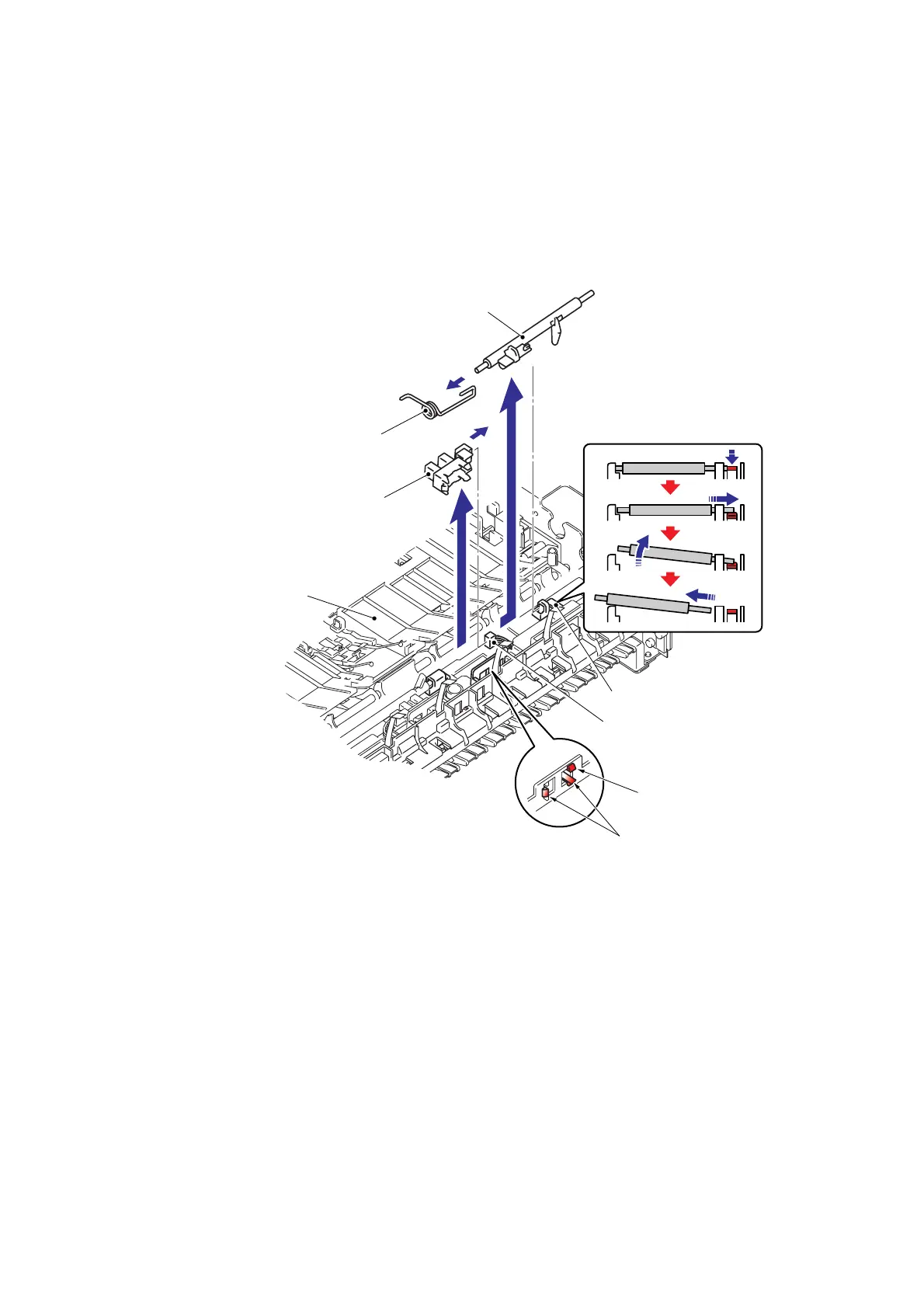

Fig. 5-132
2
3
5
4
Actuator switch back
Document rear actuator/Switch back spring
Switch back sensor
Upper document sub chute ASSY
Connector
Stopper
Hooks
Hook
