(6) Slide the MP roller holder ASSY to the direction of 6a and pull it down to remove.

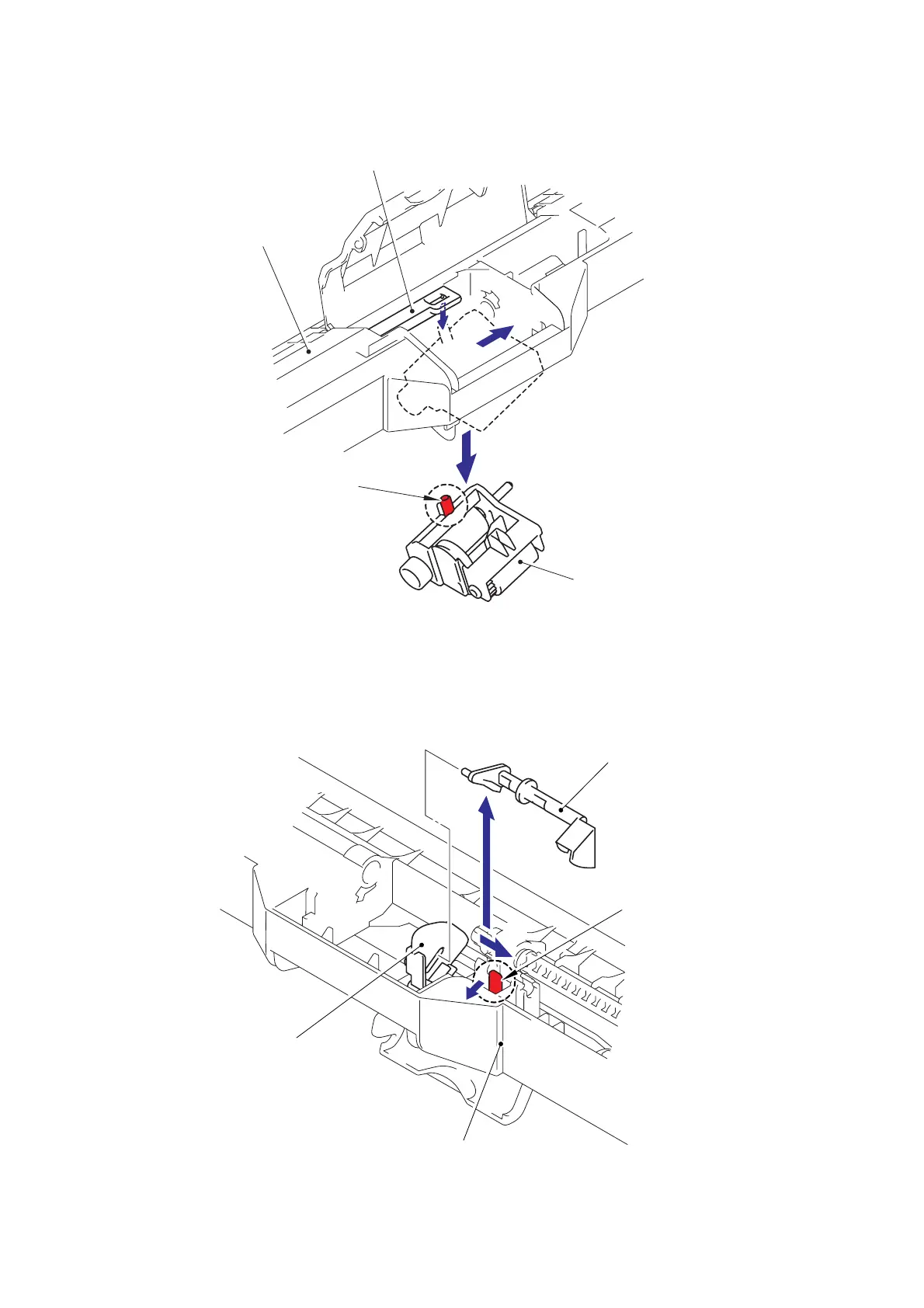

Fig. 5-271
(7) Turn the MP feed frame upside down.
(8) Slide the PE actuator MP B2 to the direction of 8b while pressing the Hook to the
direction of 8a, and pull it up to remove.
Fig. 5-272
Pin
Lift arm MP
MP roller holder ASSY
MP feed frame
6a
6b
PE actuator MP B2
Hook
MP feed frame
PE actuator MP
8b
8c
8a
