- ADF part (CIS model)

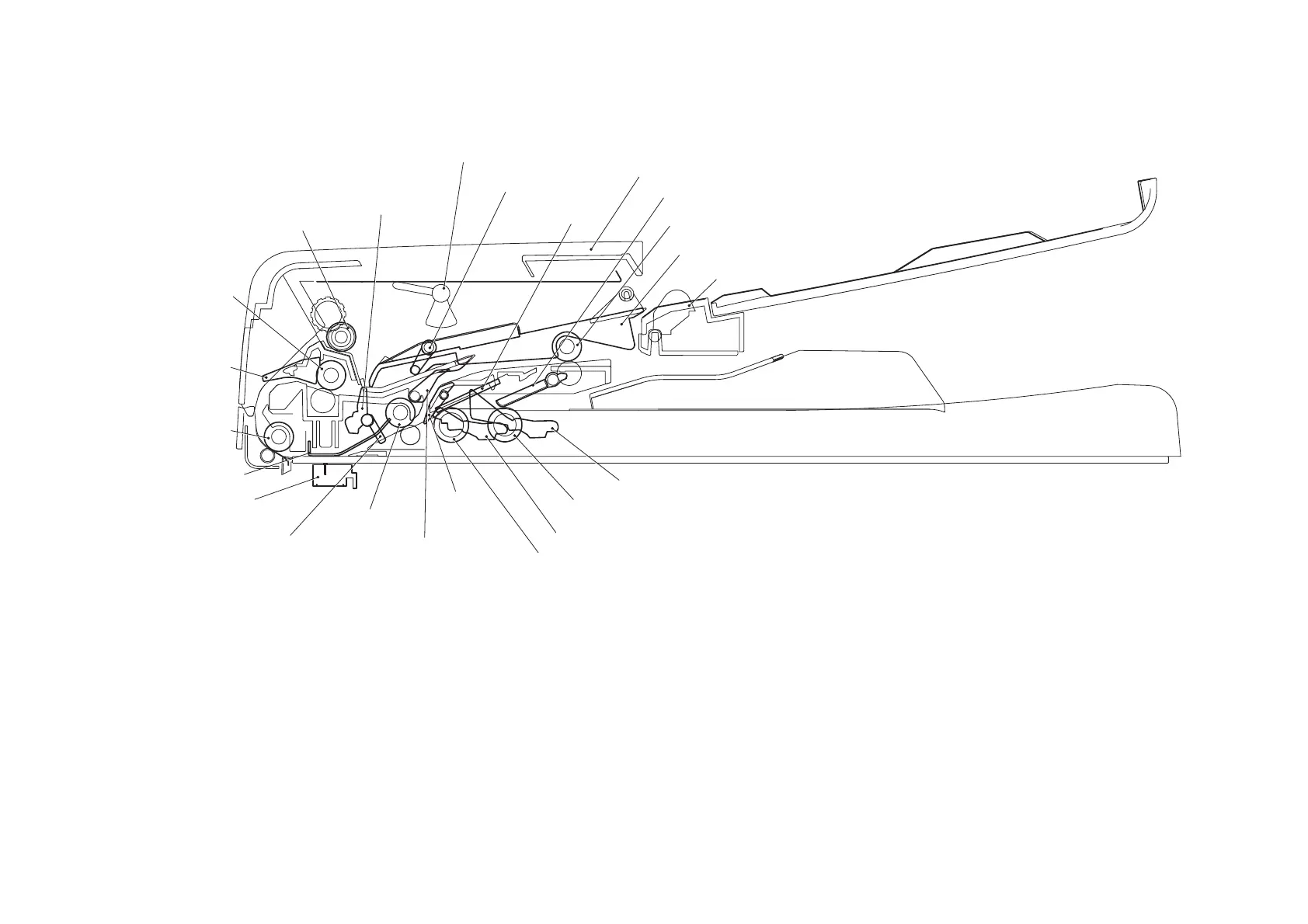

Fig. 2-5
Document front actuator 1
Document front actuator 2
Feed roller
Separation roller
Front flap
Document rear actuator
Paper feed roller 2
Switch back actuator
Switch back flap A
Paper feed roller 3
Switch back roller
Ejection flap
Document eject actuator
ADF cover
ADF cover open actuator
Separation flap cam
Exit roller
CIS unit
Document hold
Paper feed roller 1
Switch back flap B
Separation pad
Nip piece
