Brother PR655 - Change Box Center Cover Attachment

3 - 70
Needle bar change unit
Main unit
Assembly Assembly

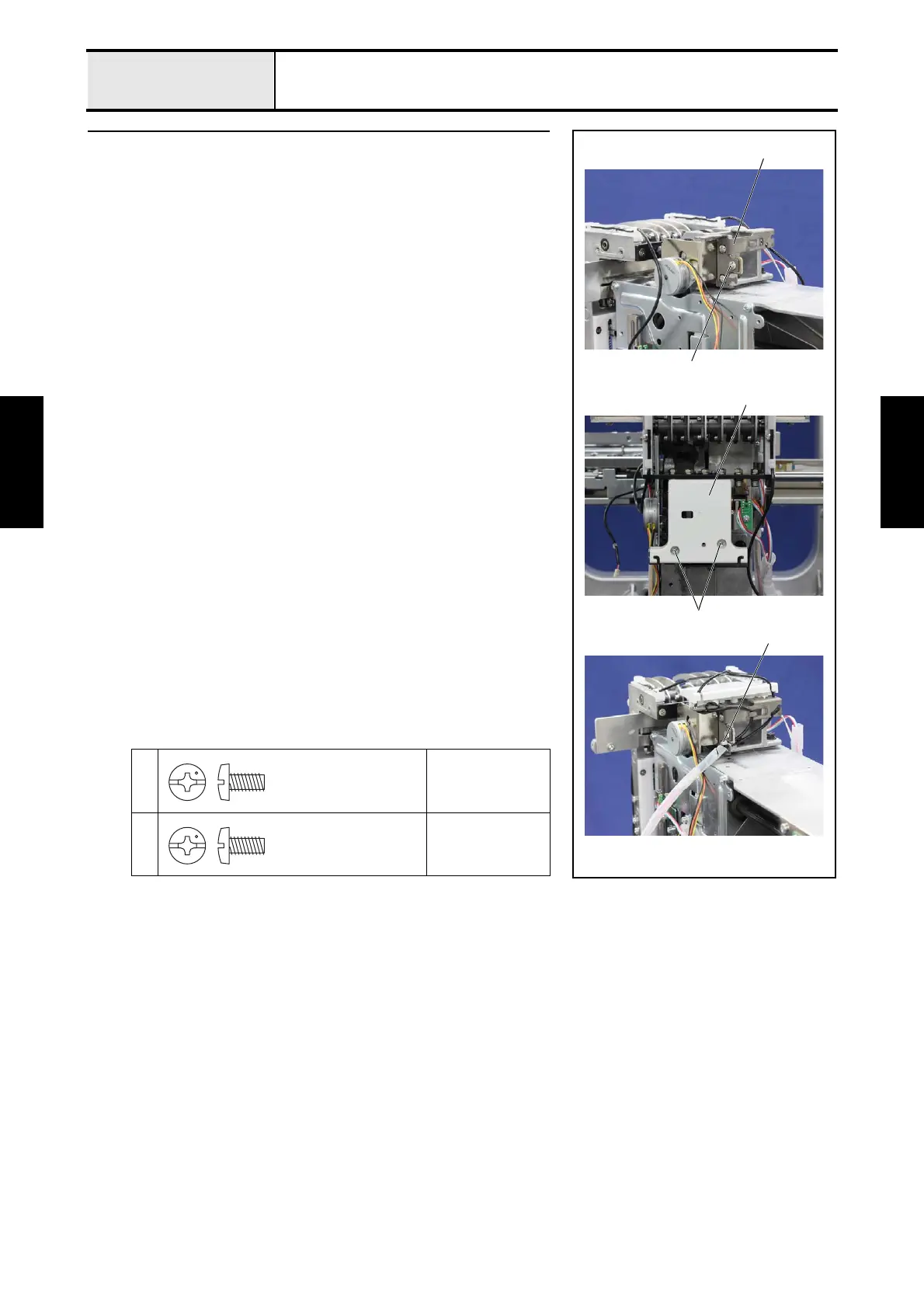

5 Change box center cover attachment
1. Attach the LED cord holder 1 with the screw 1.
2. Attach the change box center cover 2 with the 2 screws 2.
3. Secure the lead wires to the LED cord holder 1 with the band 3.
4. Attach the spiral tube to the lead wires
1
Torque
1.18 — 1.57 N-m
2
Torque
0.78 — 1.18 N-m
3
1
1
2
2
Screw, Bind
M4X8
Screw, Bind
M4X8
