Brother PR655 - Head Unit

6 - 22
Replacement
Maintenance &
Replacement
Maintenance &
Replacement
Head unit
3
21
Bracket cover
Head unit
Cord bush

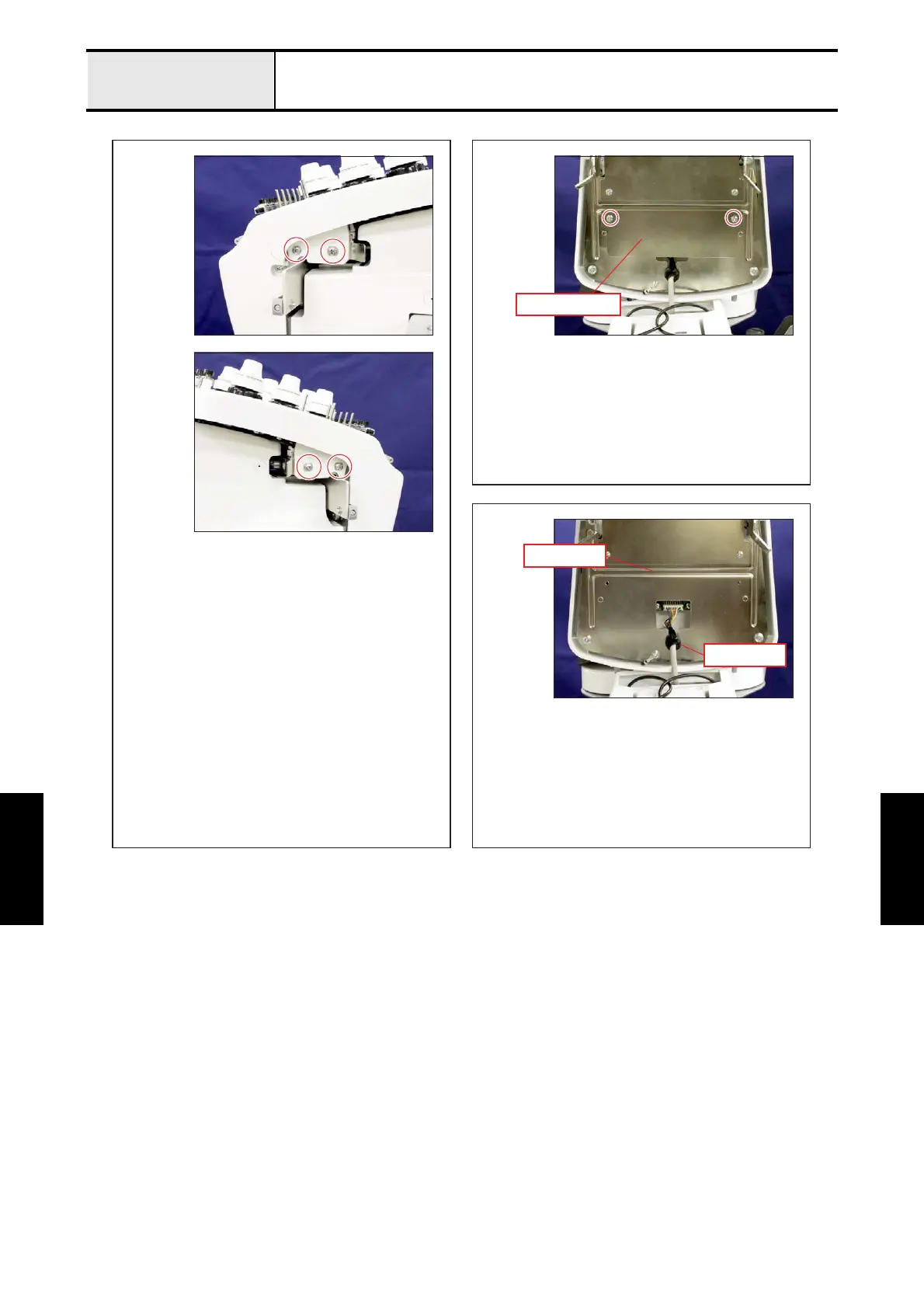

- Remove the 4 screws.
- Put the tension base as shown in the figure.
- Remove the 2 screws, and the remove the bracket
cover.
- Remove the cord bush.
- Disconnect the connector of the tension base lead
wire assy, and then remove the head unit.
