Brother PR655 - Wiper Set Assembly Removal

2 - 38
Thread wiper unit
Main unit
Disassembly Disassembly

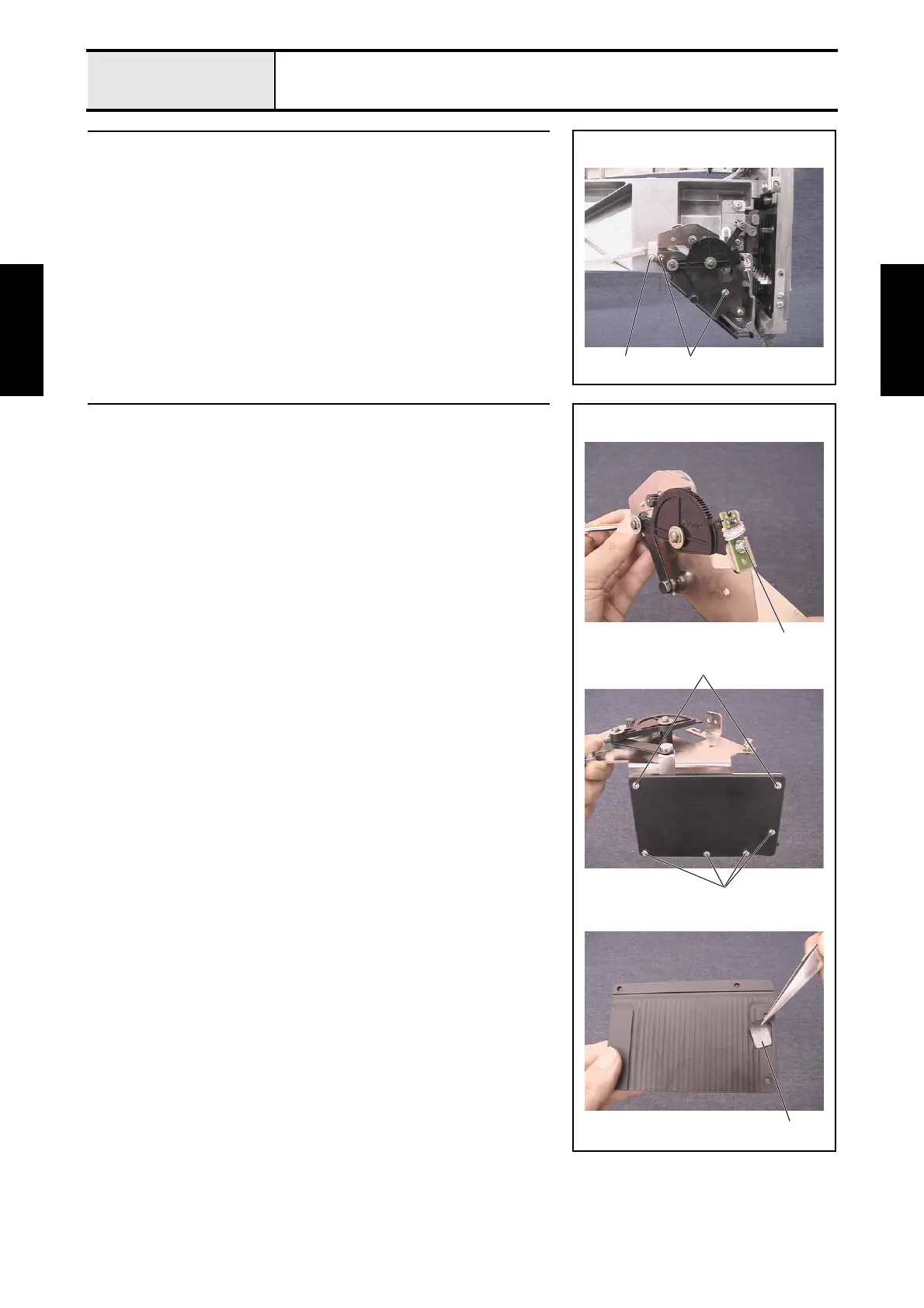

5 Wiper set assembly removal
1. Remove the screw 1, and then remove the cord clamp NK-5N.
2. Remove the 2 screws 2, and then remove the wiper set assembly.
12
6 Wiper guide and wiper sensor removal
1. Remove the screw 1, and then remove the wiper sensor assembly.
2. Remove the 6 screws 2, and then remove the wiper guide assembly.
3. Remove the wiper cushion 1 from the wiper guide assembly.
1
1
2
2
