Brother PR655 - Arm Cover R Attachment

3 - 104
Main unit
Main unit
Assembly Assembly

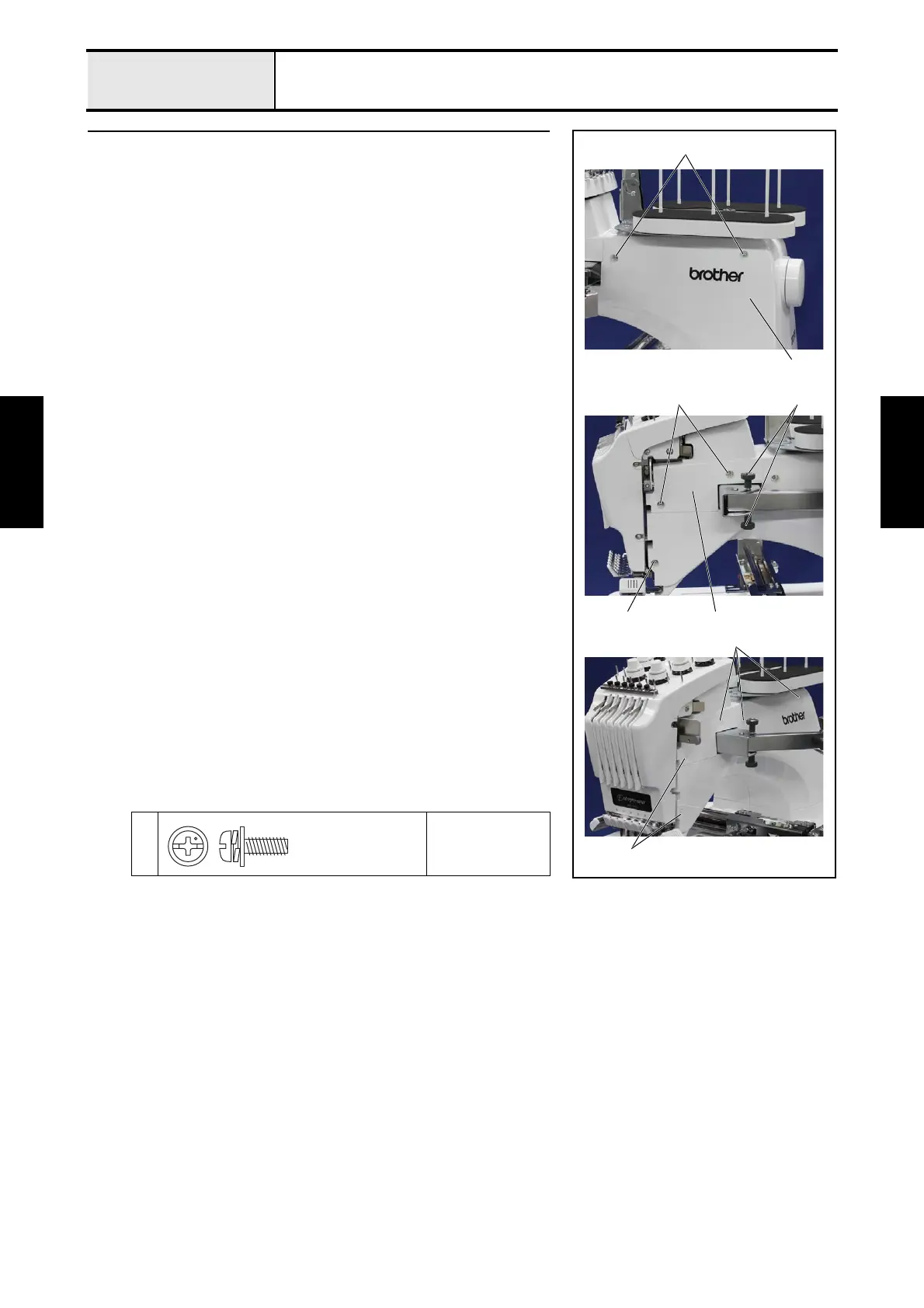

18 Arm cover R attachment
1. Attach the arm cover R 1 witht the 3 screws 1.
2. Attach the arm cover R lib 2 with the 2 screws 2.
3. Tighten the thumb bolt (M4L), spring washer (2-4), and plain washer (M4)
3. (2 locations)
4. Attach the 5 screw covers 4.
1
2
Torque
0.78 — 1.18 N-m
1
1
1
3
4
4
2
2
Screw, Pan (S/P washer)
M4X10
