Brother PR655 - Y-Carriage L Assembly

3 - 77
Feed unit
Main unit
Assembly Assembly

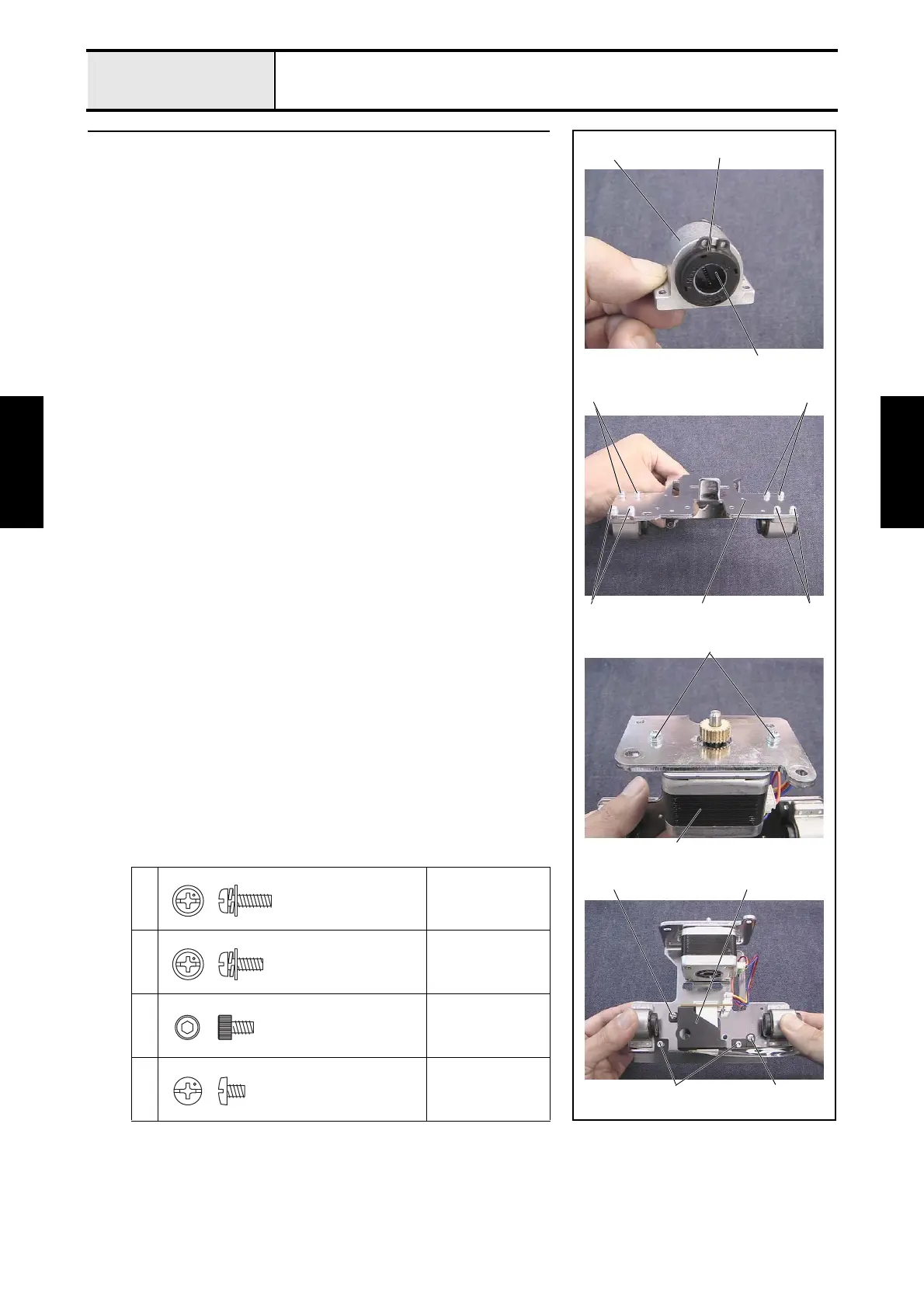

3 Y-carriage L assembly
1. Attach the linear bearing 10 2 to bearing case Y 1, and then attach the 2
external retaining rings C19. (2 sets)
2. Attach the 2 bearing case Y assemblies to Y-carriage L 3 with the 8
screws 1.
3. Attach the X-motor assembly 4 to Y-carriage L 3 with the 2 screws 2.
4. Attach the caution (easy to bend) Y-carriage L 3 with the 2 screws 3.
NOTE
•The Y sensor dog bends easily. Handle it carefully.
5. Attach the connect PCB finial assembly 5 to Y-carriage L with the 2
screws 4.
1
Torque
0.78 — 1.18 N-m
2
Torque
0.78 — 1.18 N-m
3
Torque
0.59 — 0.78 N-m
4
Torque
0.59 — 0.78 N-m
2
1
13
1
2
External retaining ring C19
11
4
4 5
3
4
Screw, Pan (S/P washer)
M3X10
Screw, Pan (S/P washer)
M3X8
Bolt, Socket
M3X5
Screw, Bind
M3X4
