Brother PR655 - Adjust-Bolt Removal

2 - 63
Main unit
Power unit
Disassembly Disassembly

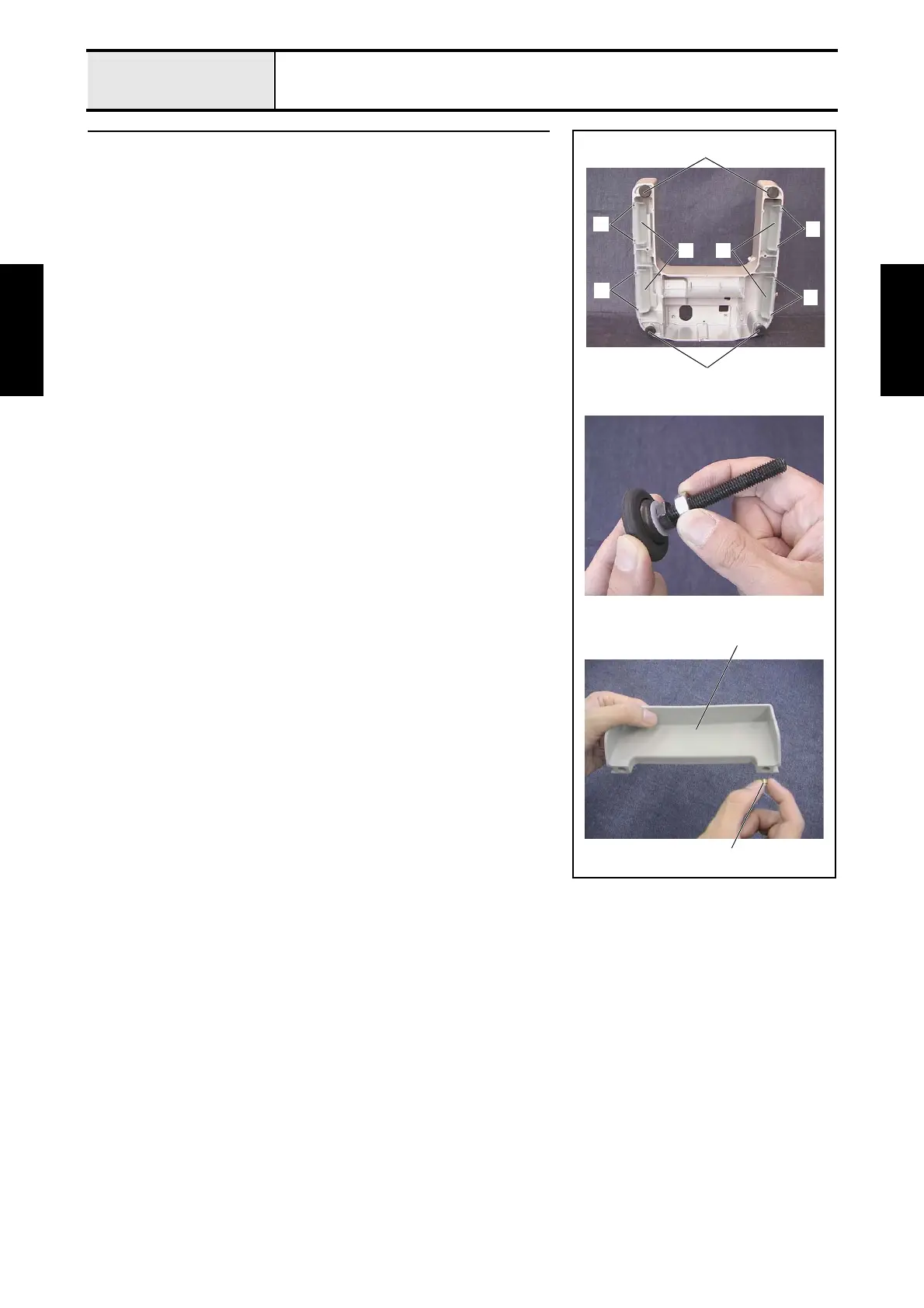

4 Adjust-bolt removal
1. Remove the 4 adjust-bolt assemblies 1 from the base frame.
2. Remove the 4 nuts (2, M8) from the 4 adjust-bolt assemblies.
3. Remove the 2 screws 1, and then remove the handle 2. (4 locations)
4. Remove the 2 bushes 3 from the handle 2. (4 locations)
1
1
1
1
1
1
2
2
3
2
