Brother PR655 - Tension Base Attachment

3 - 96
Main unit
Main unit
Assembly Assembly

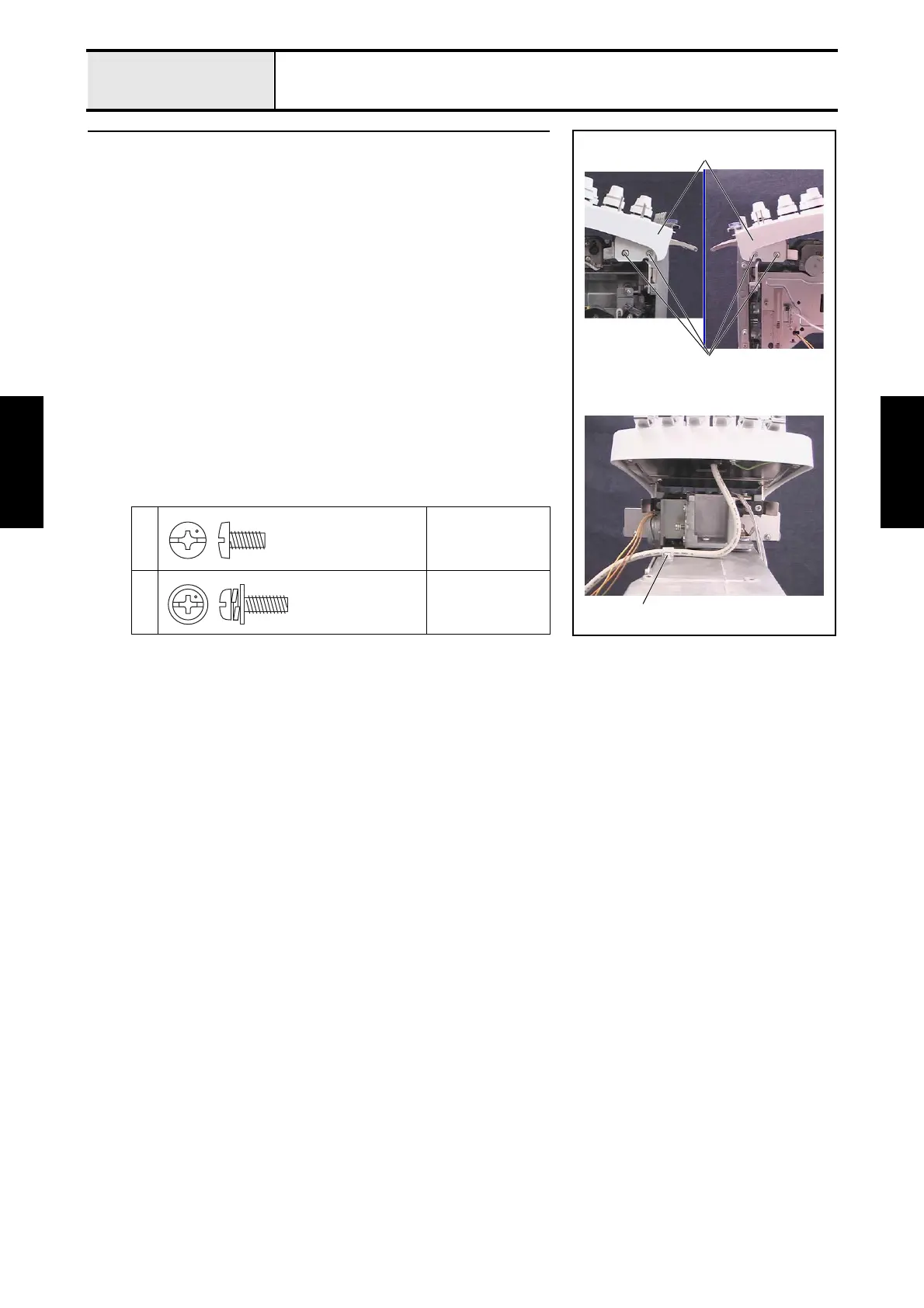

8 Tension base attachment
1. Attach the tension base assembly 1 to the needle bar case final assembly
with the 4 screws 1.
2. Attach the cord clamp to the tension base cord at a point 125 mm from the
tension base, and secure it to the arm bed with the screw 2.
1
Torque
1.18 — 1.57 N-m
2
Torque
0.78 — 1.18 N-m
2
1
1
Screw, Bind
M4X8
Screw, Pan (S/P washer)
M4X10
