Brother PR655 - Thread Take-Up Lever Assembly Removal

2 - 43
Needle bar unit
Main unit
Disassembly Disassembly

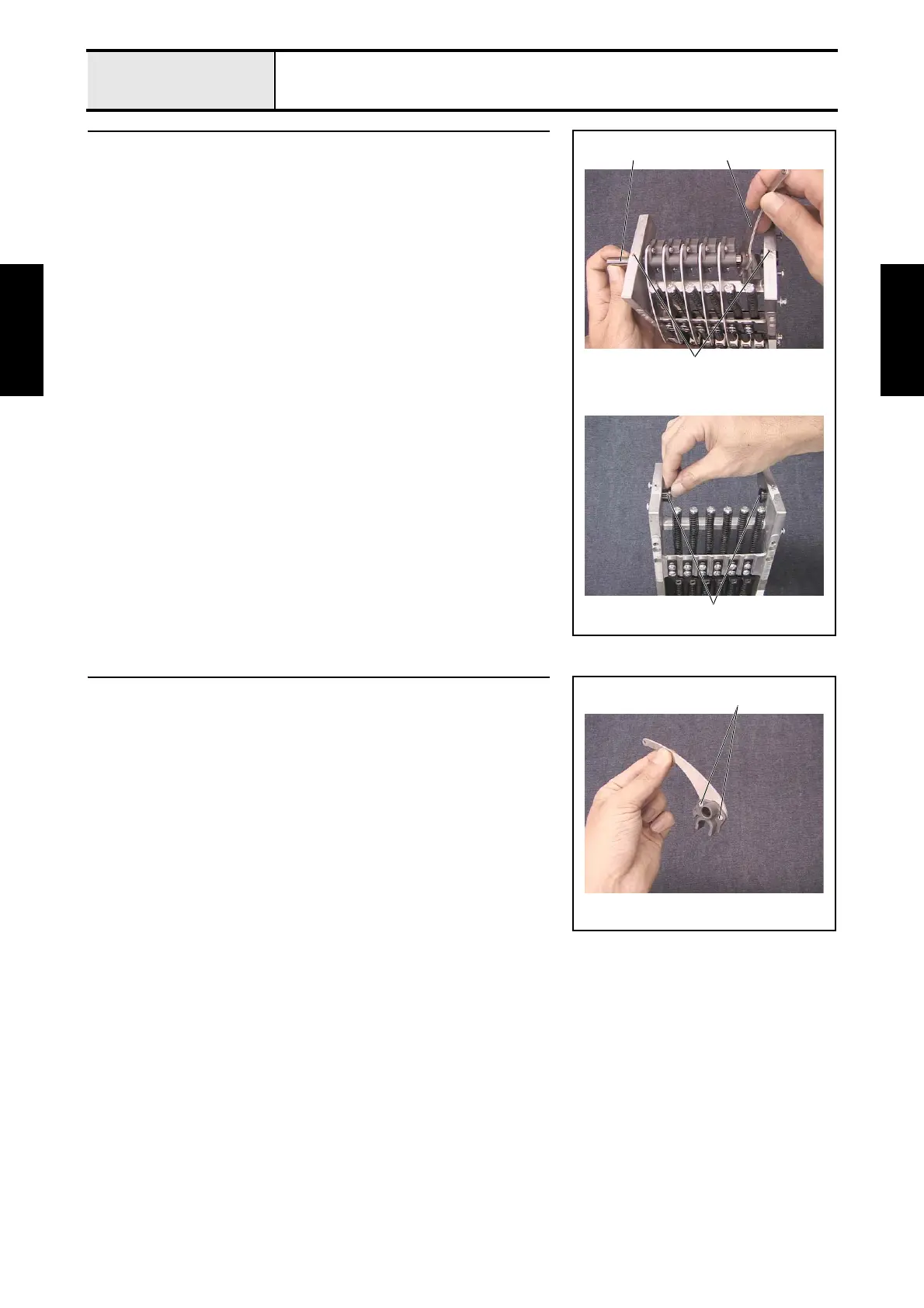

7 Thread take-up lever assembly removal
1. Remove the 2 screws 1, and then remove the thread take-up shaft 1 and
the 6 thread take-up lever assemblies 2.
2. Remove the 2 thread take-up bushes 3.
1
1
2
3
8 Thread take-up lever disassembly
1. Remove the 2 screws 1, and then remove the thread take-up boss from the
thread take-up lever. (6 sets)
1
