Brother PR655 - Main Motor Final Assembly Removal

2 - 49
Main unit
Upper shaft unit
Disassembly Disassembly
1 Main motor final assembly removal

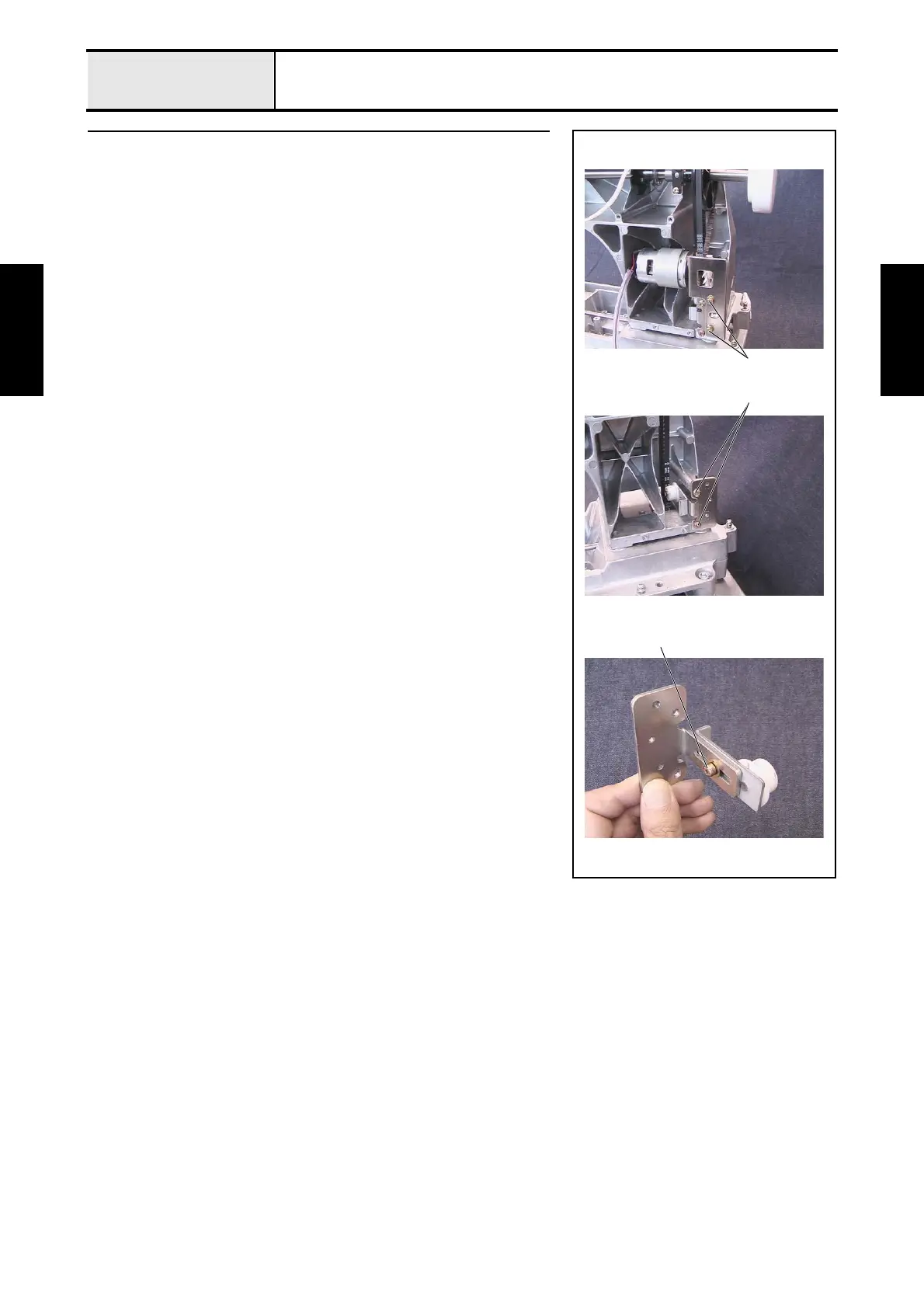

1. Remove the 2 screws 1, and then remove the main motor final assembly
and the T-belt (XA9644-050).
2. Remove the motor fan from the main motor final assembly.
3. Remove the 2 screws 2, and then remove the tension pulley final
assembly.
4. Remove the screw 3, and then remove the tension pulley assembly.
1
2
3
