Outline of Mechanism
Outline of
Mechanism
Outline of
Mechanism

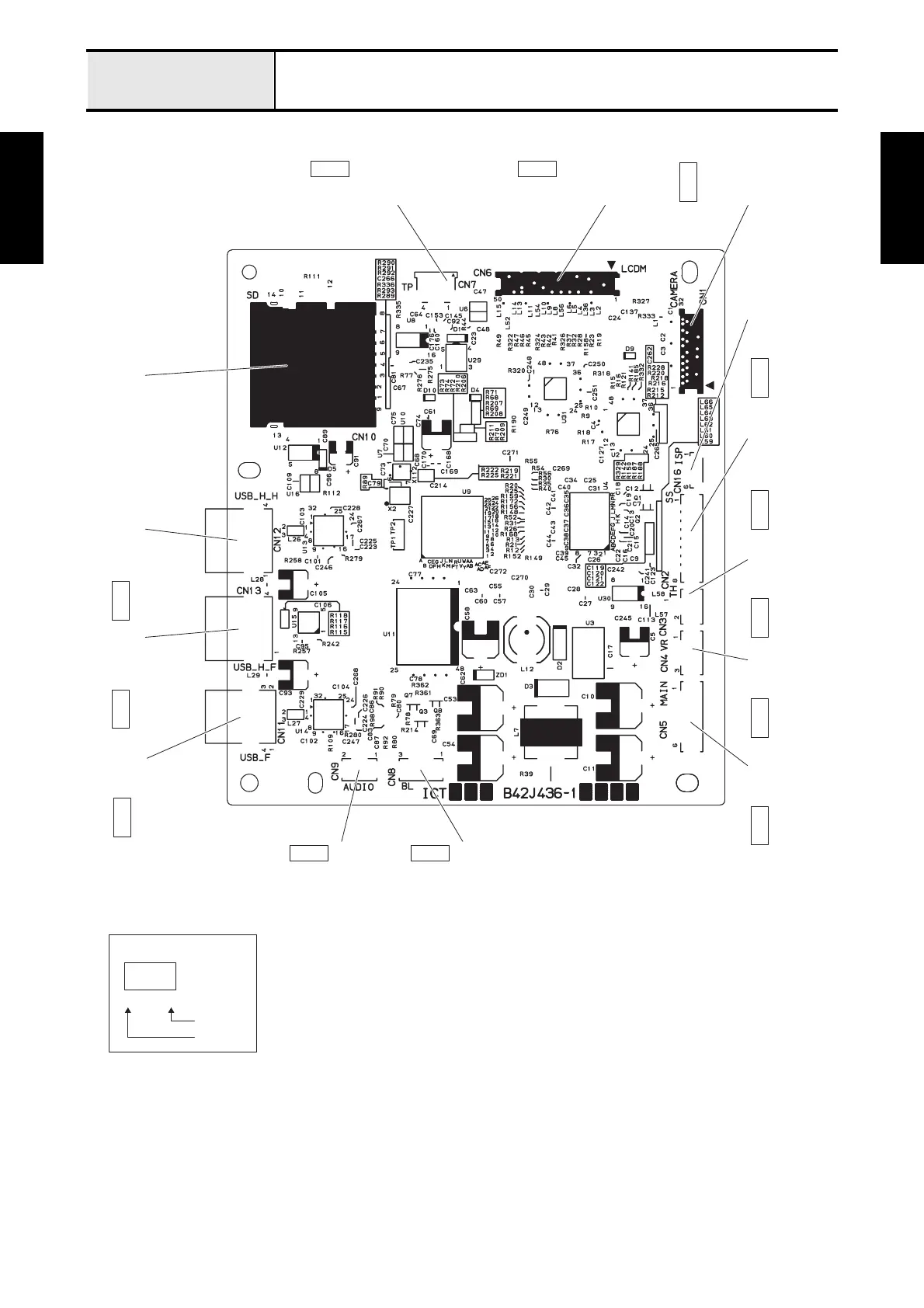

Layout for P.C.B. connectors
 Panel P.C.B.
Connector Pins
Pin # : 1
Pin # : 5
51
CN7
TP
(Touch panel)
41
CN6
LCDM
(LCD module)
50 1
CN8
CFL
(LCD back light PCB)
31
CN3
TH
*Not used
2
1
CN4
VR
*Not used
3
1
CN9
AUDIO
(Speaker)
21
CN5
MAIN
(Main PCB)
6
1
CN11
USB_F
(USB1.1 HOST)
1
2
CN13
USB_H_F
(USB2.0
Function)
1
4
CN12
USB_H_H
(USB2.0 HOST)
CN10
SD
*Not used
1
4
CN1
CAMERA
*Not used
1
32
CN2
SS
(Start/Stop
switch PCB)
8
1
CN16
ISP
*Not used
6
1
