2 - 9
Main parts
Main unit
Disassembly Disassembly

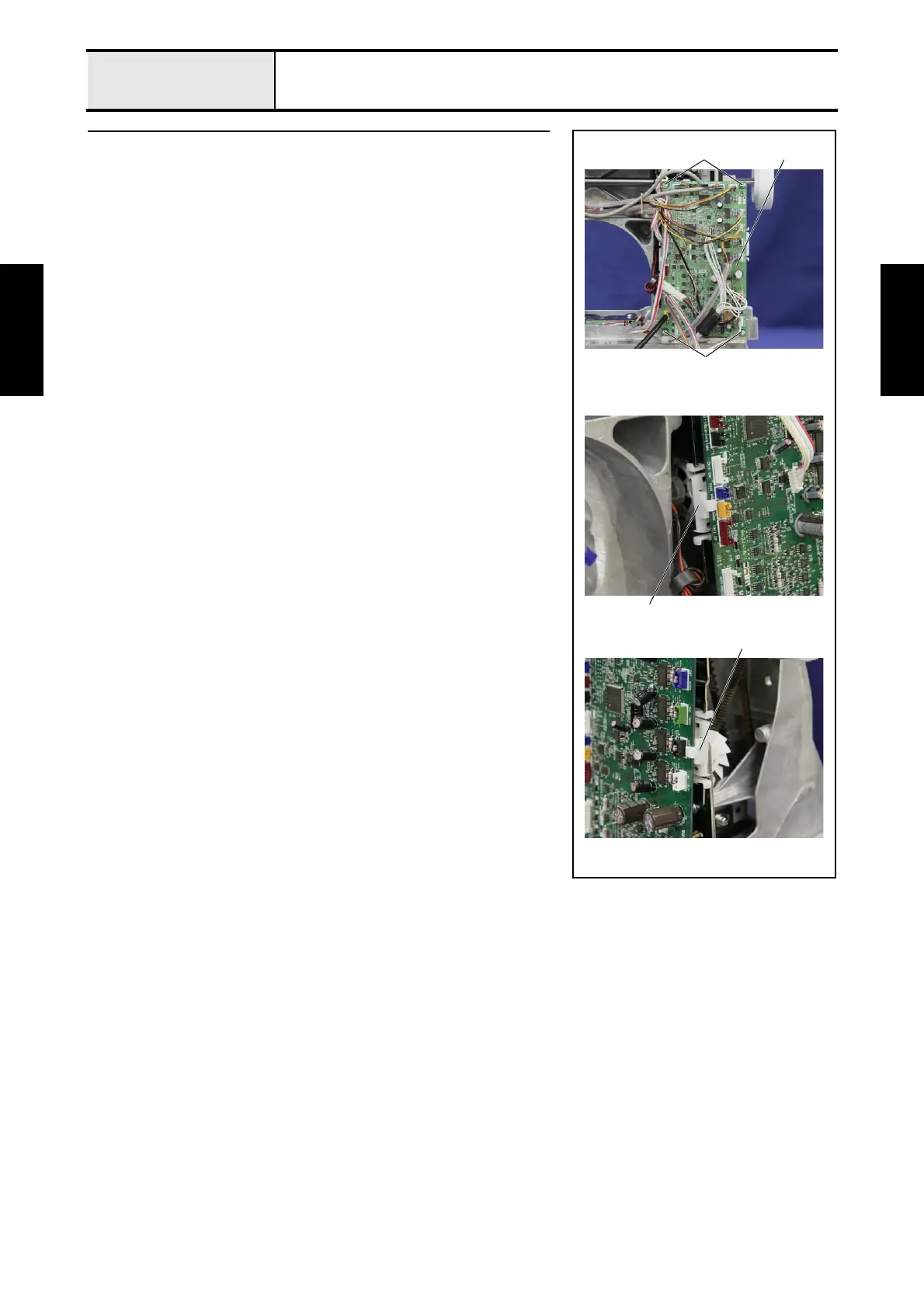

8 Main PCB assembly removal
1. Disconnect the all connectors from the main PCB assembly.
2. Disconnect the motor harness from the main PCB assembly.
3. Release the 2 hooks to remove the PCB supporter 1 (2 locations).
4. Remove the 4 screws 1, and then remove the main PCB assembly 2.
1 2
1
1
1
