2 - 11
Main parts
Main unit
Disassembly Disassembly

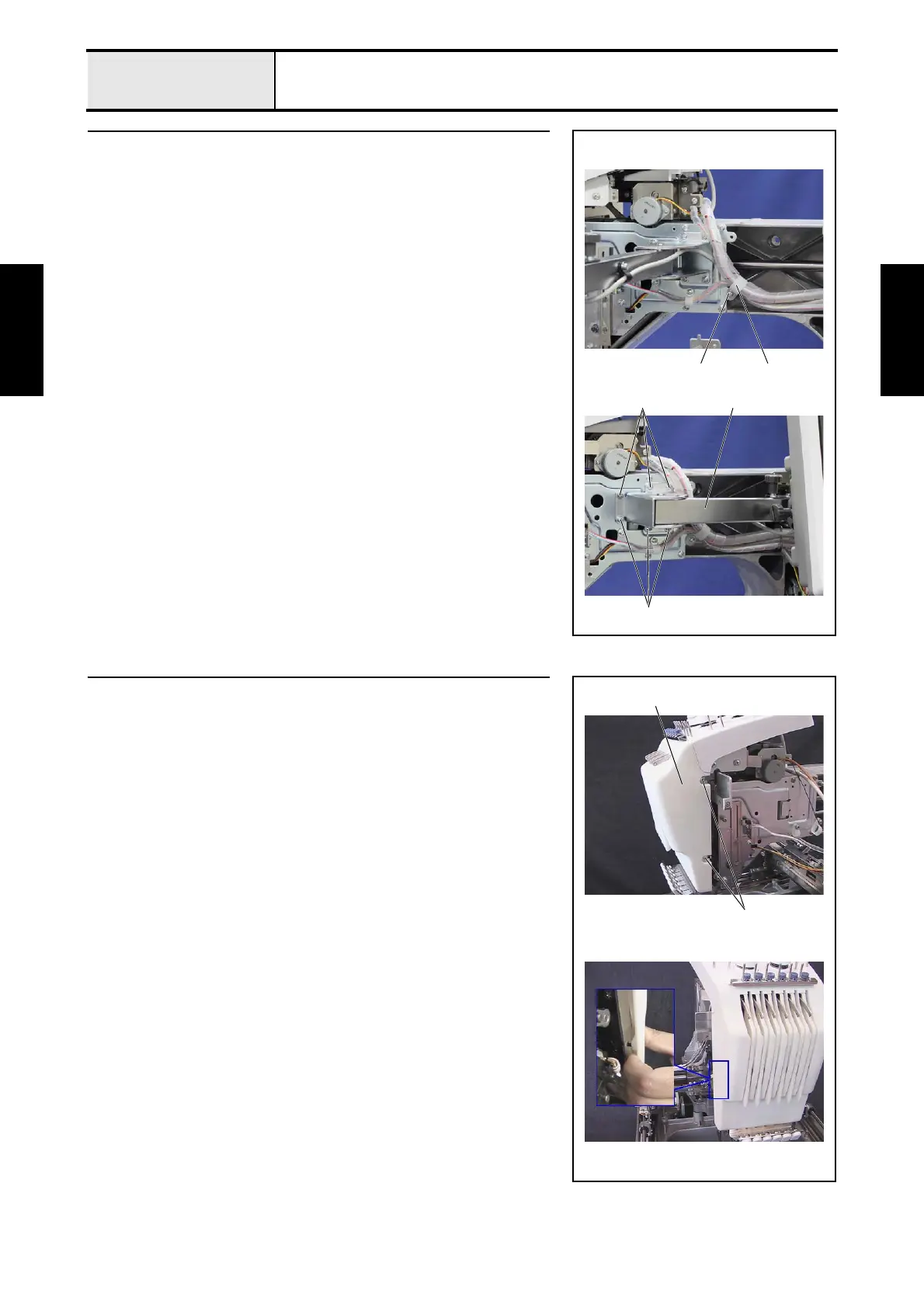

11 Operation panel assembly removal
1. Remove the screw 1, and then remove the cord clamp 1.
2. Remove the 6 screws 2, and then remove the operation panel assembly
2.
2
1 1
2
2
12 Thread take-up lever cover removal
1. Remove the 2 screws 1, and then remove the thread take-up lever cover
1.
*Key point
• The pin protruding from the needle bar case final assembly
rests on the inner left side of the thread take-up lever cover 1.
1
1
