Brother PR655 - Page 35

2 - 14
Main parts
Main unit
Disassembly Disassembly

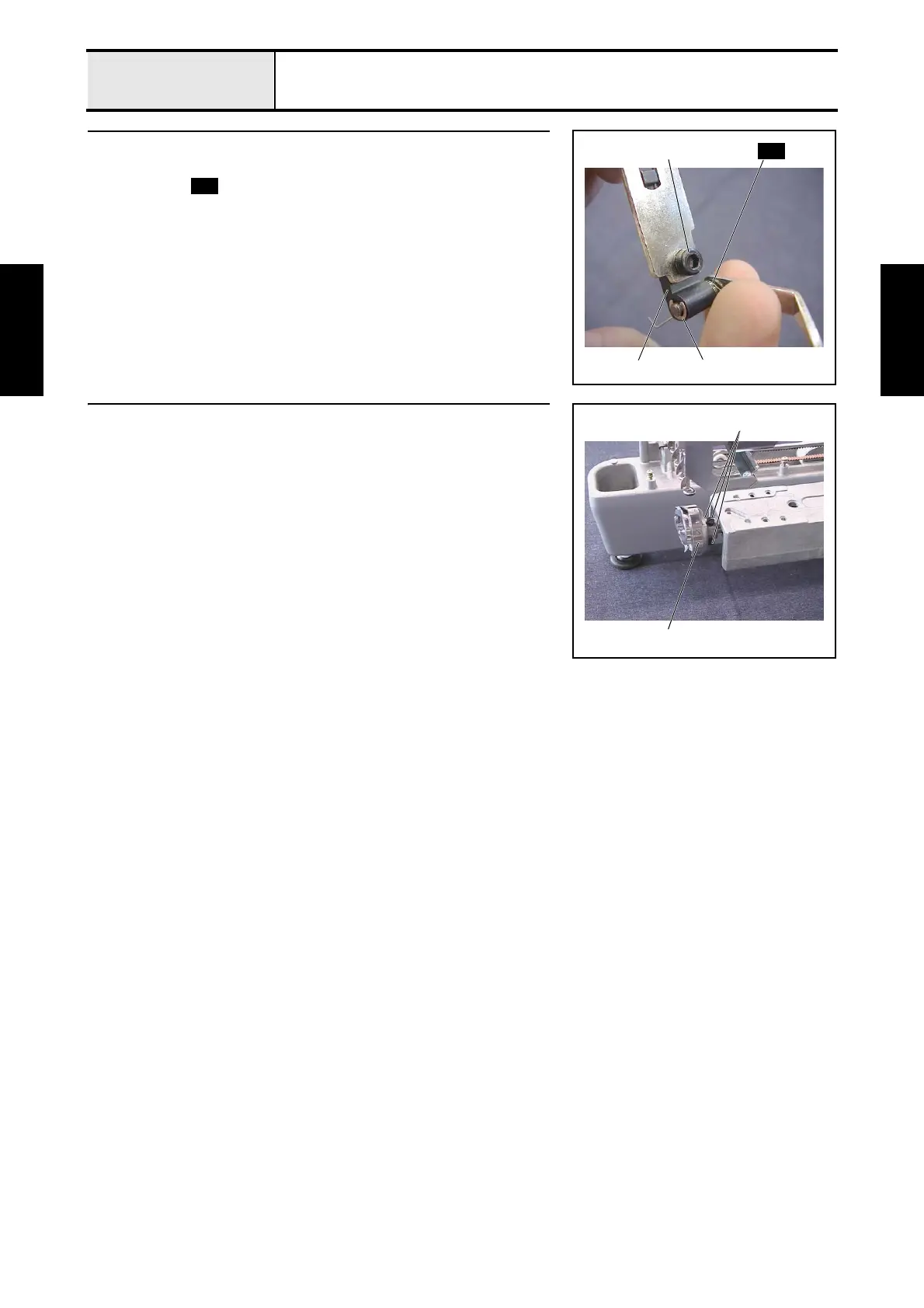

18 Picker bracket disassembly
1. Remove the retaining ring E2, and then remove the picker assembly and
the spring .
2. Remove the screw 1, and then remove the picker holder 1 from the
picker bracket.
Retaining ring E2
S541
1
S54
19 Rotary hook removal
1. Remove the 3 screws 1, and then remove the rotary hook 1 from the
lower shaft.
1
1
