Feed unit
Main unit
Disassembly Disassembly

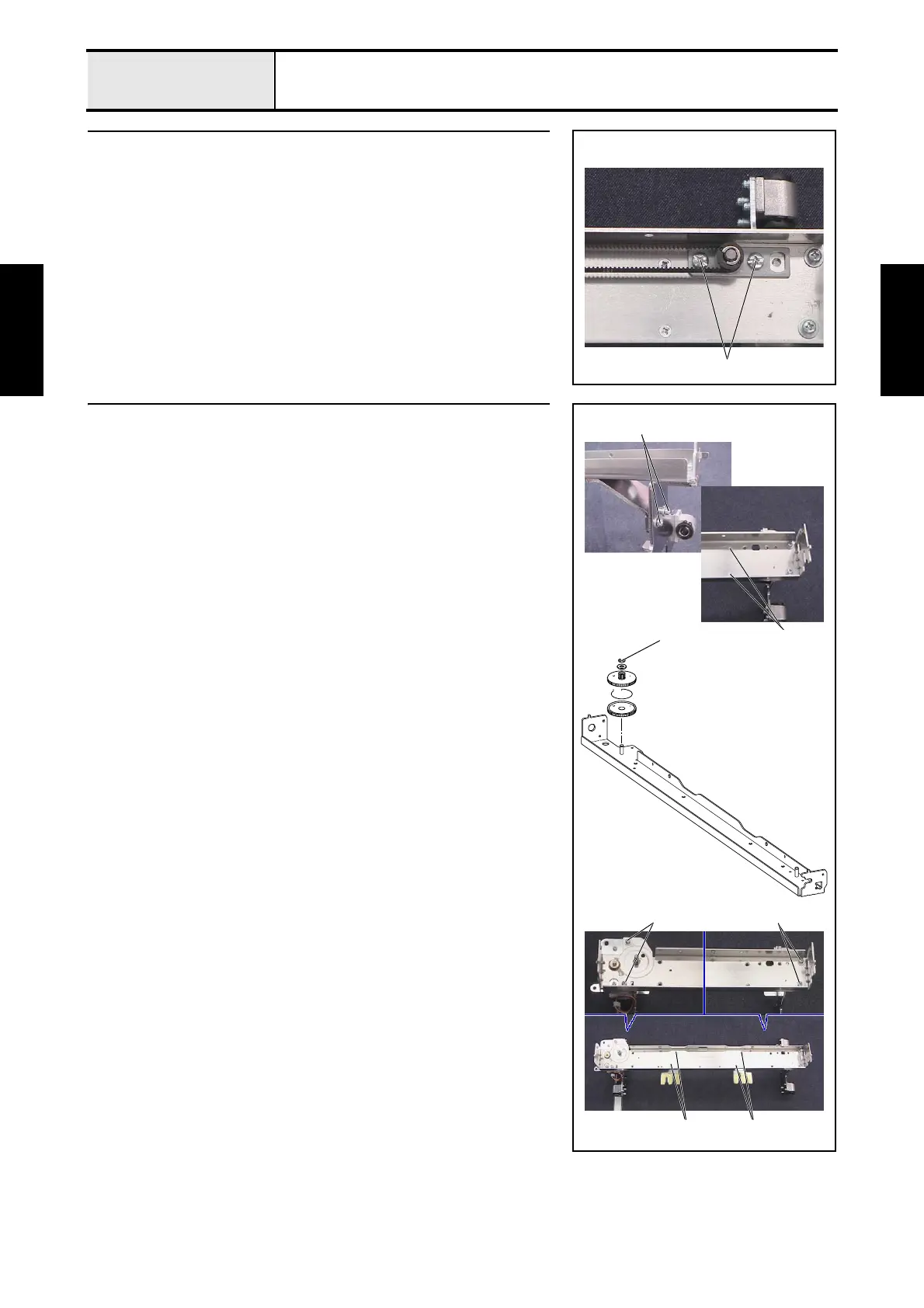

16 T-belt (Y-drive) removal
1. Remove the 2 screws 1, and then remove the tension pulley plate
assembly and the T-belt.
1
17 Feed frame disassembly
1. Remove the 4 screws (1 2, 2 each), and then remove the Y-carriage RB.
2. Remove the retaining ring E4, plain washer (M6), washer, Y-driving gear
pulley A, spring for gear, and Y-driving gear pulley B.
3. Remove the 4 screws 3, and then remove the Y-carriage R assembly and
the Y-carriage L assembly.
4. Remove the 4 screws 4, and then remove the cylinder connection L/R.
2
1
3 3
4 4
Retaining rings E4
