BRAVO analyzer - Overview 3
3.6 Docking station
The docking station is an optional item. It provides for:
• a data transfer (up-/downloading data) via Ethernet network (wired network)
between BRAVO and the data station on which OPUS is installed
• recharging the battery inside BRAVO and the spare battery which is stored
inside the docking station
• storing the measuring tip which is currently not used and the reference sample
for the PQ test
• data transfer via USB stick

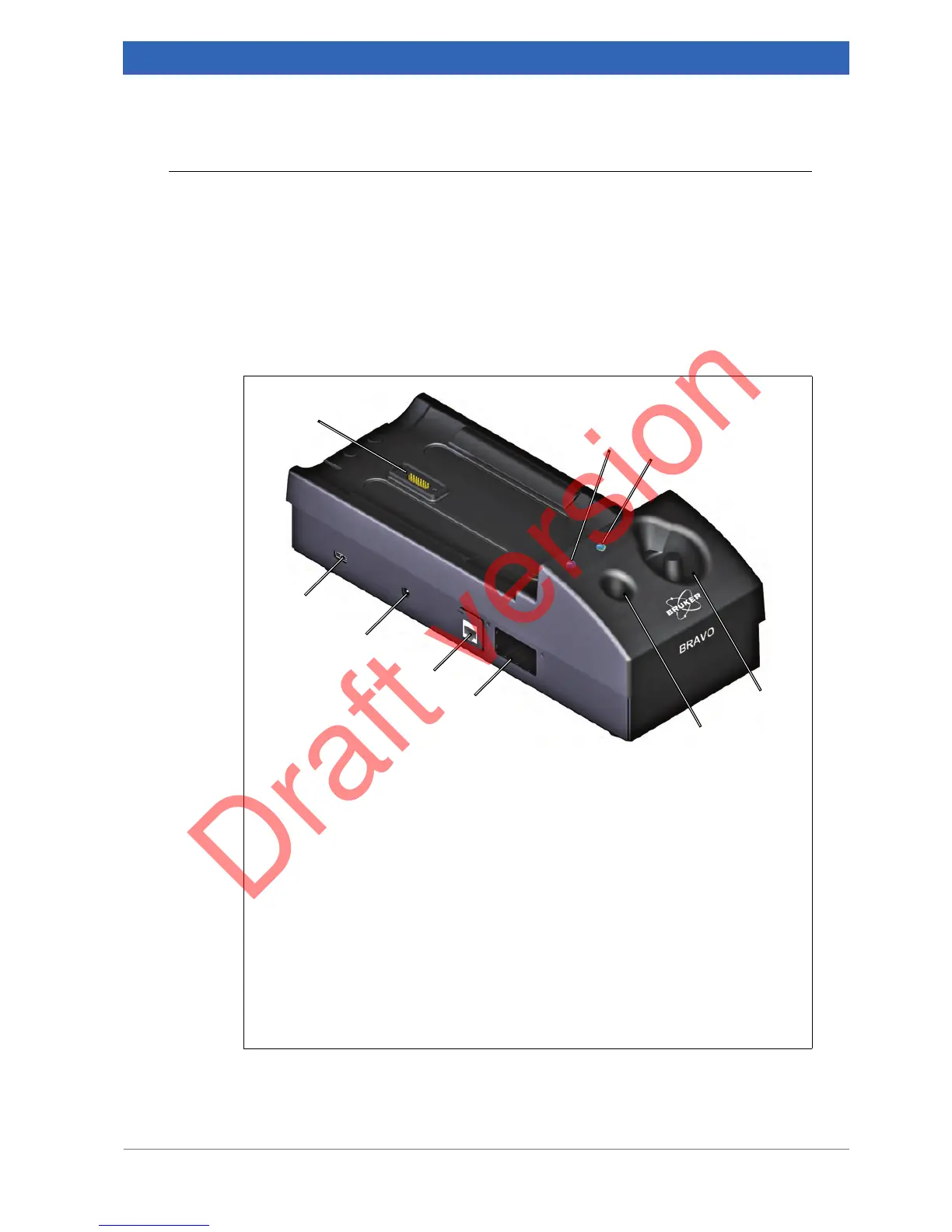

① - Contact bar for connecting with BRAVO
② - Blue lamp indicates whether the electric contact with BRAVO is established
③ - Green lamp indicates the current state of charge of the battery which is inside
BRAVO
④ - Indentation intended for the storage of the measuring tip
⑤ - Indentation intended for the storage of the reference sample or a vial
⑥ - Compartment for the spare battery (for storing and recharging the spare bat-
tery)
⑦ - Ethernet port for connecting the data cable in case the instrument is
connected to a wired network
⑧ - Low-voltage socket for connecting the low-voltage cable to establish the
power supply
⑨ - USB port for connecting an USB stick
