BRAVO Analyzer - User Manual Bruker Optik GmbH
Operation 4

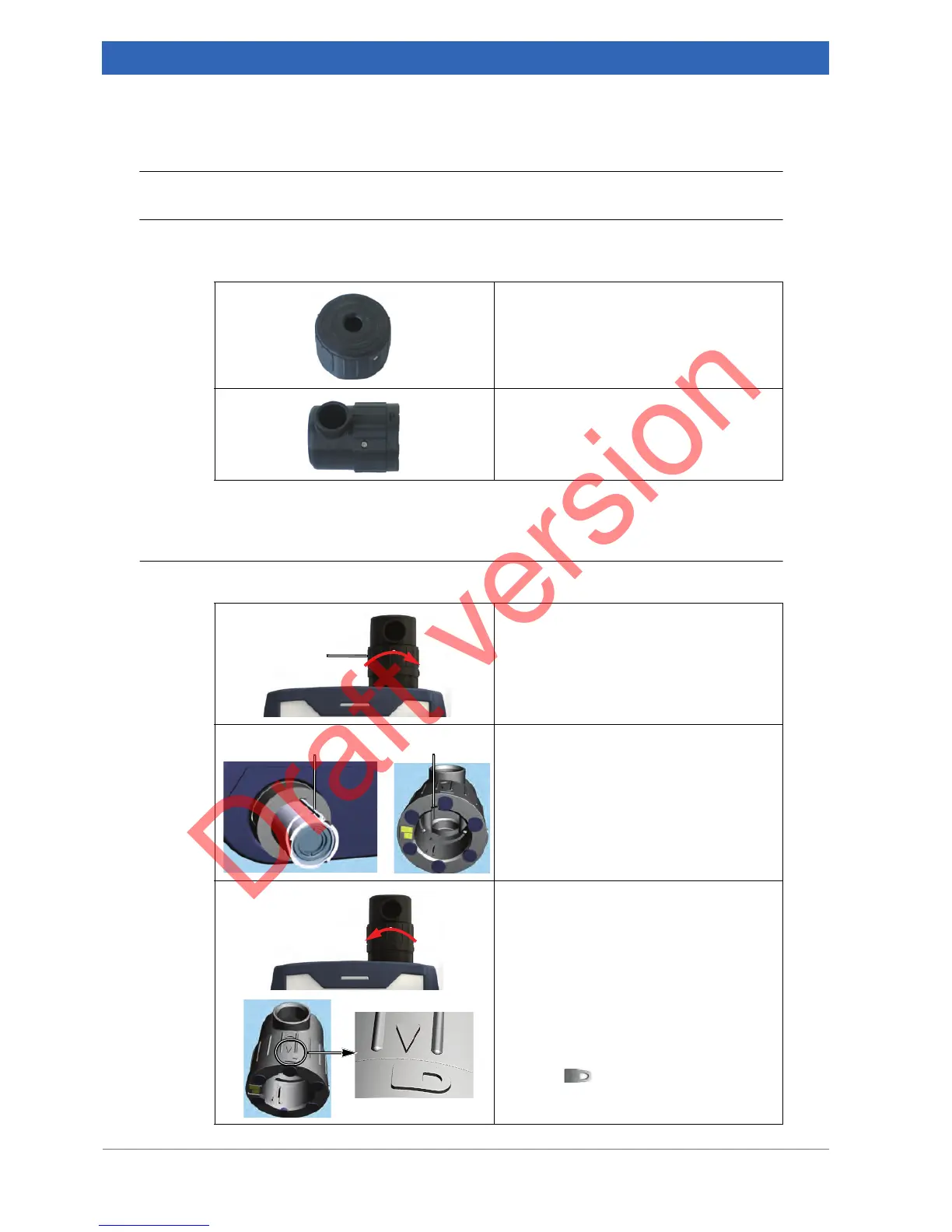

4.4 Exchanging the measuring tip
General information
Depending on the type of container in which the sample material is filled, there are two
different types of measuring tips:
☞ For additional information about the available measuring tips, see section 3.3.
Exchange procedure
Depending on the type of sample container, install the appropriate measuring tip.
Measuring tip for bags
➣ Use this measuring tip for samples
being filled in a plastic bag, in a barrel
etc.
Measuring tip for vials
➣ Use this measuring tip for measuring
liquid or solid samples being filled in
a vial.
1. Removing a measuring tip
Rotate the bayonet socket ① a quarter
turn. The direction of rotation is indicated
by the red rotation arrow in the left image.
Take off the measuring tip.
2. Installing a
measuring
tip
Fit the measuring tip on the objective unit
with the groove of the measuring tip
③
being in alignment with the tongue of the
objective unit
②.
Rotate the bayonet socket until it
engages. The direction of rotation is indi-
cated by the red rotation arrow in the left
image.
Note: The bayonet coupling is properly
engaged when the arrow is in line with the
lock icon .
