Installation and Connections
MATRIX CUBE - 23 -

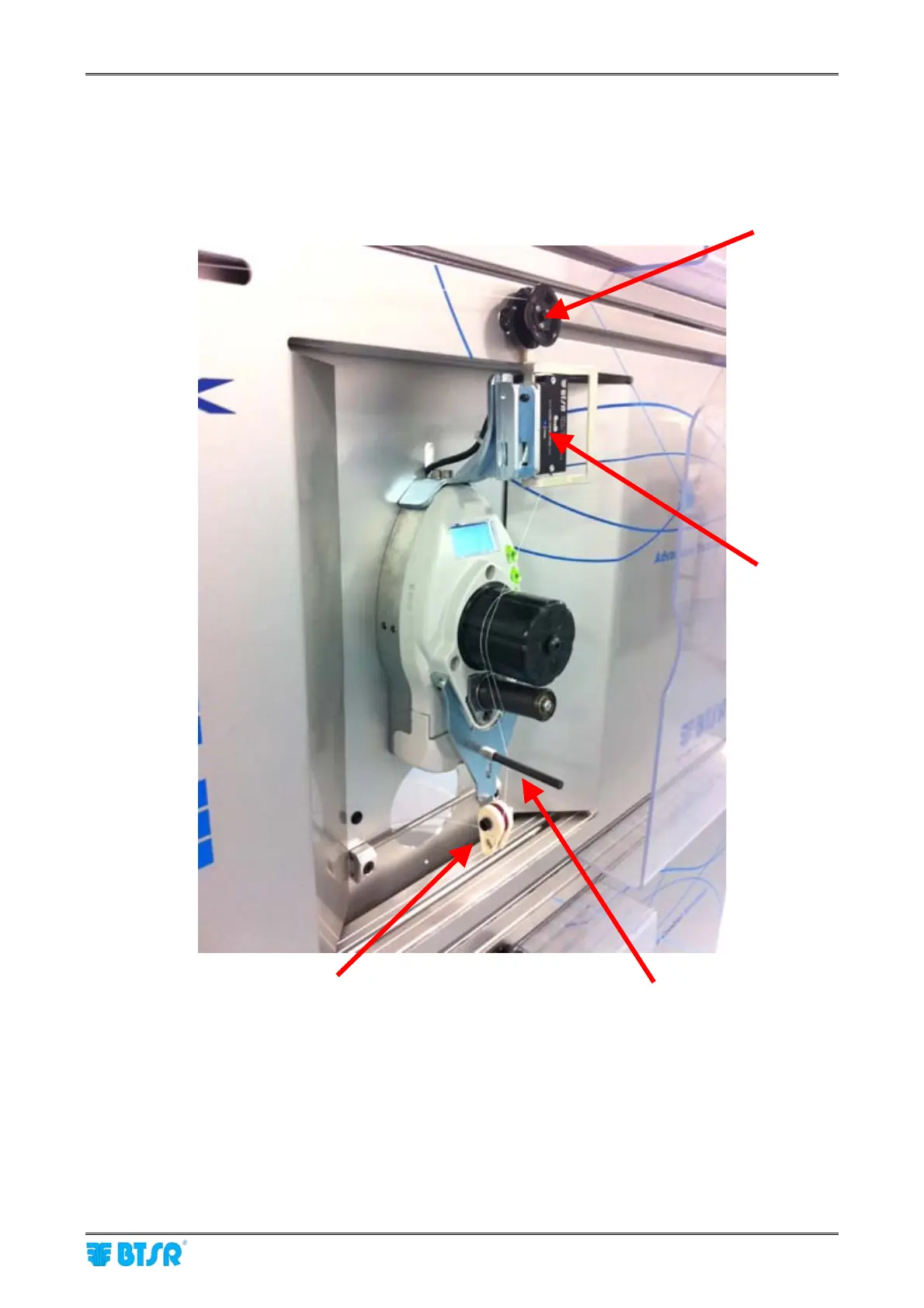

2) Thread up yarn into the DIAPER FEEDER device as indicated on the following figure:
2a - Insert the yarn into the yarn way sheave (P1)
2b - Set the yarn to the right of the black pretension ceramic bar (P2)
2c - Make 3 coils around the DIAPER FEEDER device wheel (clockwise direction)
2d - Thread the yarn over the loading cell of TS44.. tension sensor
2e - Thread the yarn on the wheel (R1)
If necessary, you may ad just the coil separator following the procedure described on paragraph
5.1.3 Coil separator adjustment (Section 5)
Yarn way sheave (P1)
Black ceramic bar (P2)
TS44..
Wheel (R1)
