Installation and Connections
MATRIX CUBE - 25 -

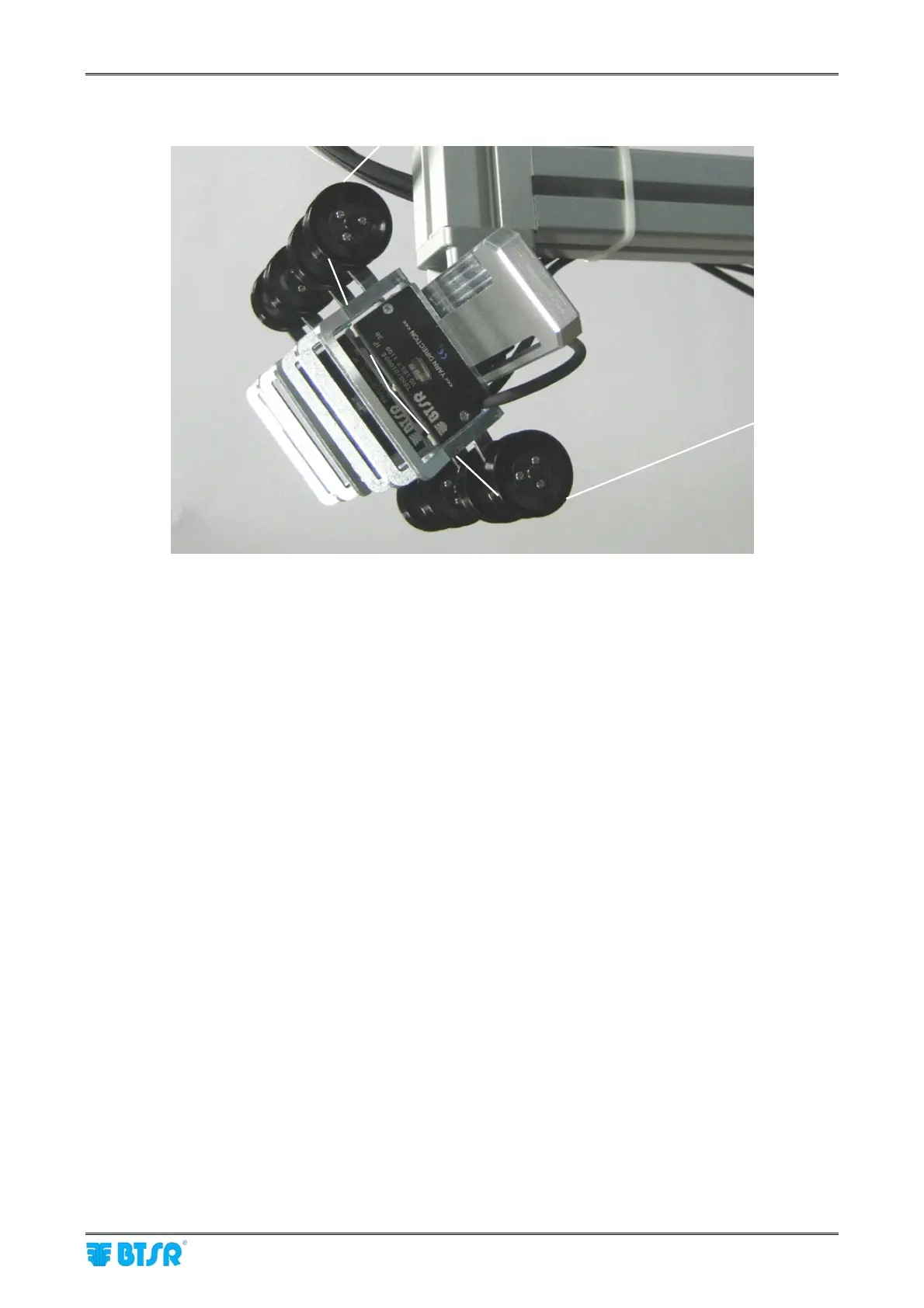

6) Thread the yarn over the loading cell of TS55 sensor, as indicated on the following figure:
7) Repeat steps 1) to 6), to thread the remaining yarns.
Pay attention not to exchange the yarns along the path!
The yarn fed by DIAPER FEEDER device no. 1 shall pass over the TS55 sensor no. 1, and so on.
For DIAPER FEEDER and sensors numbering, please refer to Section 2 (SETUP
→
IDENTIFY
procedure).
