2-54 2002 Buell X1: Chassis
HOME

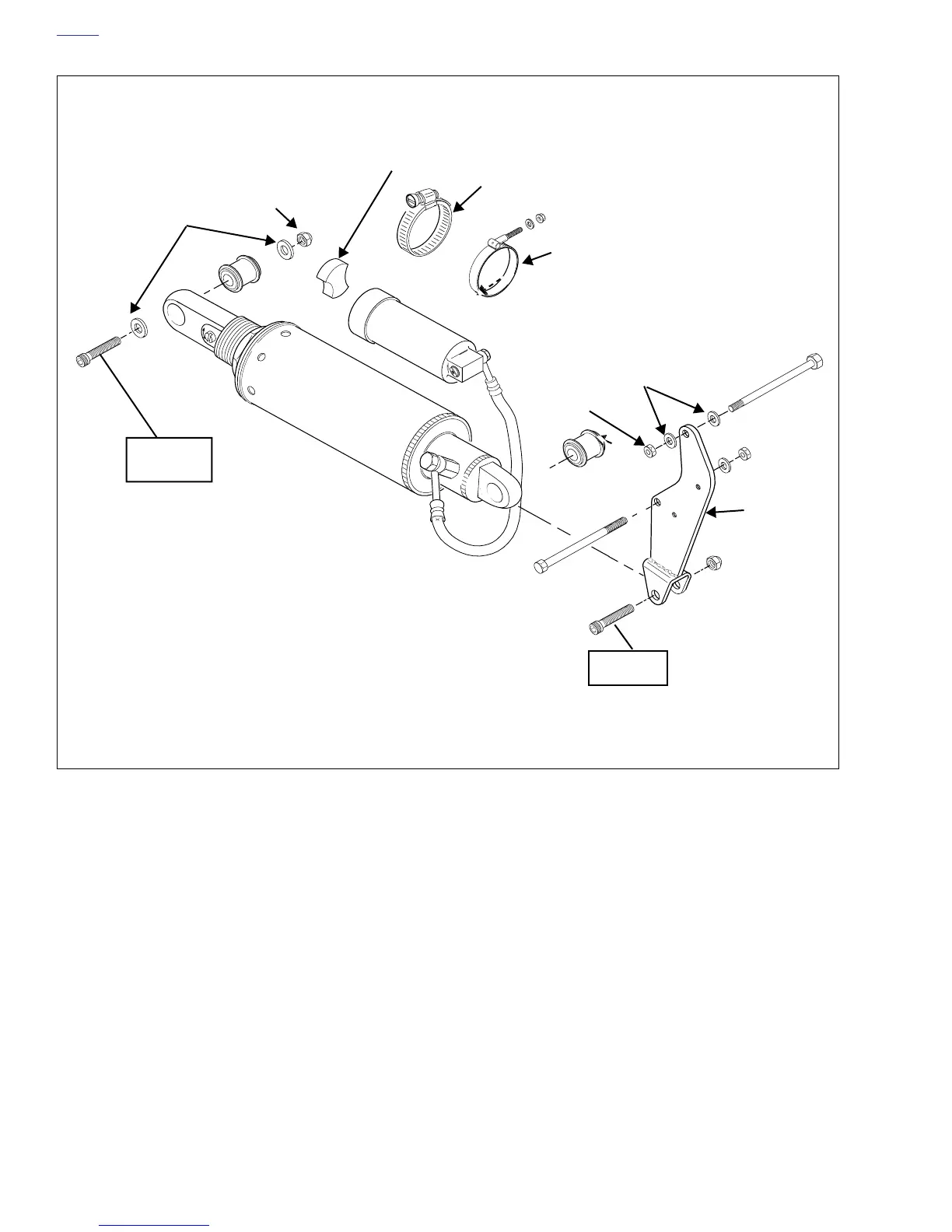

Figure 2-87. Rear Shock Absorber
b0918x2x
Rear Reservoir Clamp
Front Reservoir
Clamp
Nylon
40-45 ft-lbs
(54-61 Nm)
Front
Shock
Mount
Reservoir Mount Block
Metal Locknut (2)
30-33 ft-lbs
(41-45 Nm)
Washers (3)
Locknut (2)
Washers
