Buell X1 2002 - Speedometer Sensor

7-40 2002 Buell X1: Electrical
HOME
SPEEDOMETER SENSOR 7.16
REMOVAL
1. See
Figure 7-54. Remove bolt (1) to detach speedome-
ter sensor (2) from crankcase.
2. See
Figure 7-55. Disconnect 3-place Deutsch connector
[65] under battery tray.
INSTALLATION
1. See
Figure 7-54. Install bolt (1) to attach speedometer
sensor (2) to crankcase.
2. Connect speedometer sensor connector [65] to wiring
harness.

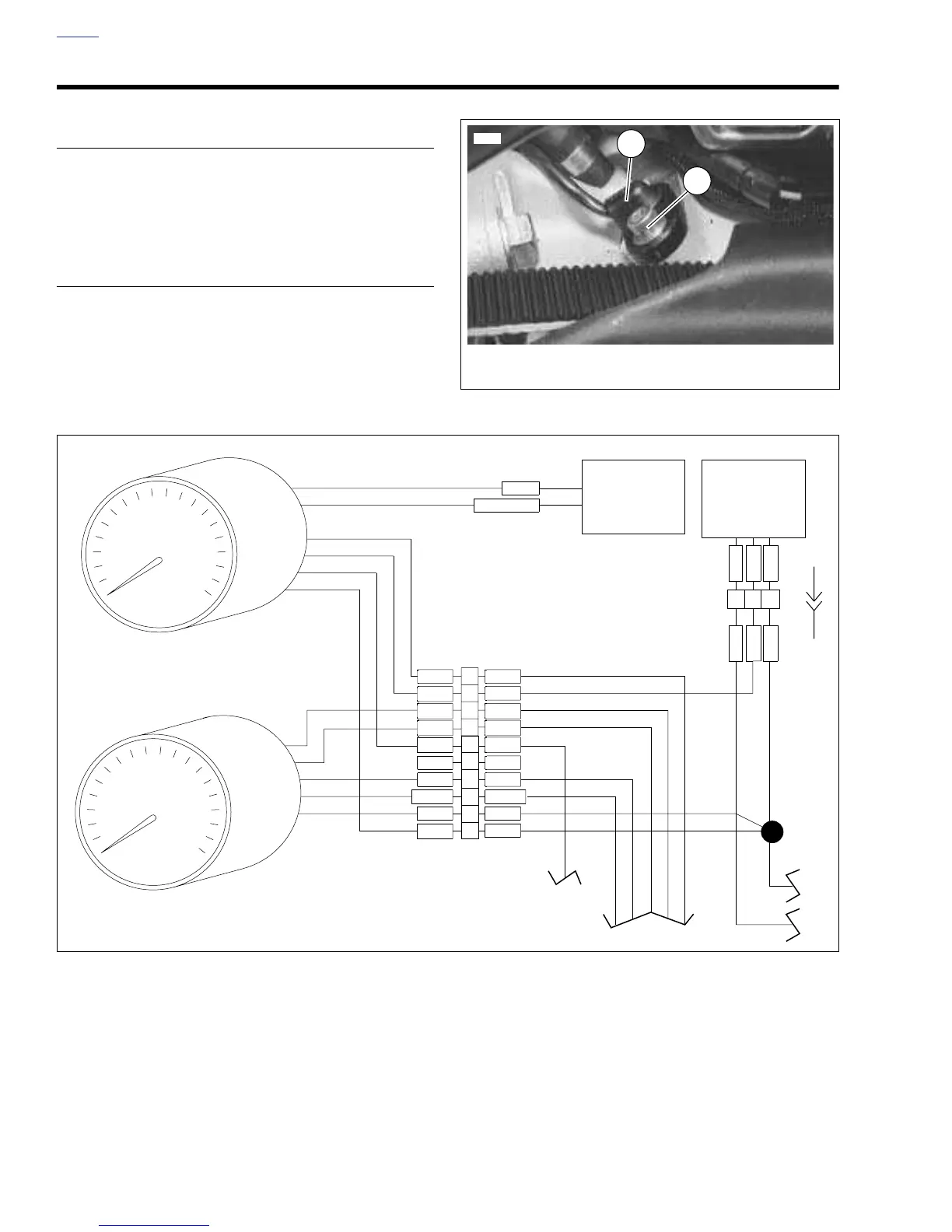

Figure 7-54. Speedometer Sensor
1
6991
2
1. Bolt
2. Speedometer Sensor
Figure 7-55. Speedometer Sensor Wiring
2
3
4
O/W
1
W
O/W
BKBK
5
6
7
8
9
10
OO
Y/R Y/R
R
--
PK PK
BK/Y BK/Y
BK
BK
BK
LT BE/W
W
ABC
BK
W
GY
BK
W
R
R
Speedometer
b0670x2x
Tachometer
Odometer
Reset
Button
Speedometer
Sensor
Instrument
Connector
[39]
Speedometer Sensor
Connector [65]
