Buell X1 2002 - Trunk

2002 Buell X1: Chassis 2-77
HOME
TRUNK 2.37
REMOVAL
1. See
Figure 2-128. Detach data link connector [91A] from
trunk.
2. See
Figure 2-126. Remove two screws and washers (1)
and nuts and washers (2) securing front of trunk (4) to
tail section (5).
3. Remove two screws and washers (3) securing trunk (4)
to tail section (5) under edge of tail section.
4. See Figure 2-127. Remove screws and washers (1) from
indentation in license plate bracket (2).
5. Push down on center of trunk until trunk pops free of tail
section.
INSTALLATION
1. See
Figure 2-126. Position trunk (4) in tail section (5).
2. Secure front of trunk (4) to tail section (5) with two
screws and washers (1) and washers and nuts (2).
3. Secure trunk (4) to tail section (5) with two screws and
washers (3) under edge of tail section.
4. See
Figure 2-127. Secure trunk to license plate bracket
(2) with screws and washers (1).
5. See
Figure 2-128. Attach data link connector [91A] to
trunk.

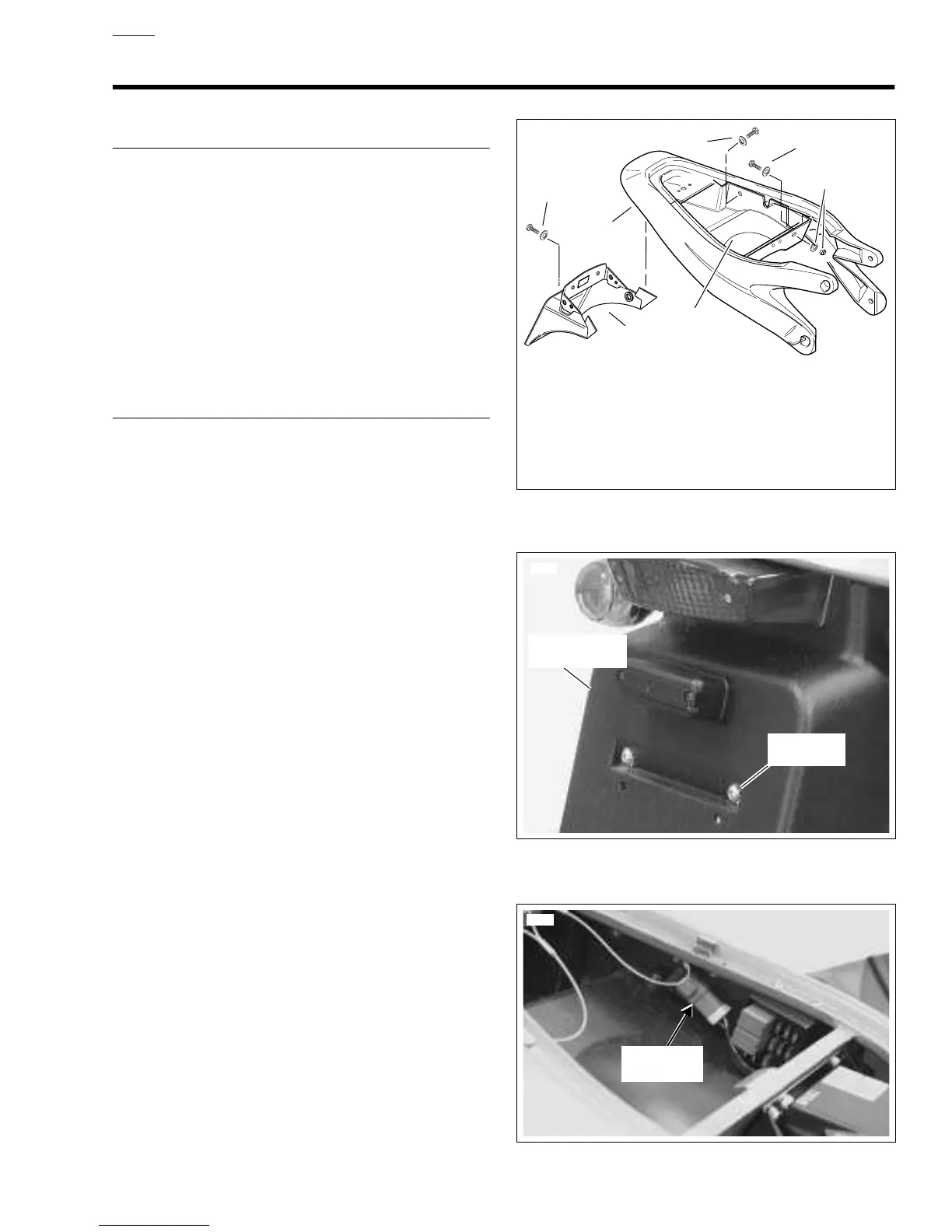

Figure 2-126. Tail Section with Trunk
Figure 2-127. License Plate Bracket
Figure 2-128. Data Link Location
b0623x2x
1. Screw and Washer (2)
2. Washer and Nut (2)
3. Screw and Washer (2)
4. Trunk
5. Tail Section
6. Screw and Washer (2)
7. License Plate Bracket
6
5
4
7
3
1
2
6885
License
Plate Bracket
Screw and
Washer (2)
Data
Link [91A]
7987
