2002 Buell X1: Fuel System 4-13
HOME
BREAKOUT BOX 4.7
GENERAL
The BREAKOUT BOX (Part No. HD-42682) splices into the
main harness. Used in conjunction with a DVOM, it allows cir-
cuit diagnosis of wiring harness and connections without hav-
ing to probe with sharp objects.
INSTALLATION
1. See
Figure 4-13. Detach seat. Remove two screws and
washers (3) to free ECM from ECM mounting bracket.
2. Depress latches on each side of connectors [10] (black)
and [11] (gray).
3. See
Figure 4-14. Attach Breakout Box (1) to black con-
nector [10].
a. Attach black connector from Breakout Box to corre-
sponding black ECM connector.
b. Attach black connector from the wiring harness to
black connector on Breakout Box.
4. Attach Breakout Box to gray connector [11].
a. Attach gray connector from Breakout Box to corre-
sponding gray ECM connector.
b. Attach gray connector from the wiring harness to
gray connector on Breakout Box.
REMOVAL
1. See
Figure 4-14. Depress latches on each side of con-
nectors [10] (black) and [11] (gray).
2. Detach Breakout Box connectors from ECM connectors.
3. Detach Breakout Box connectors from wiring harness.
4. Reattach ECM connectors to wiring harness.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation and startle the rider, causing
loss of control which could result in death or serious
injury.
5. Attach ECM to bracket with two screws. Reinstall seat.

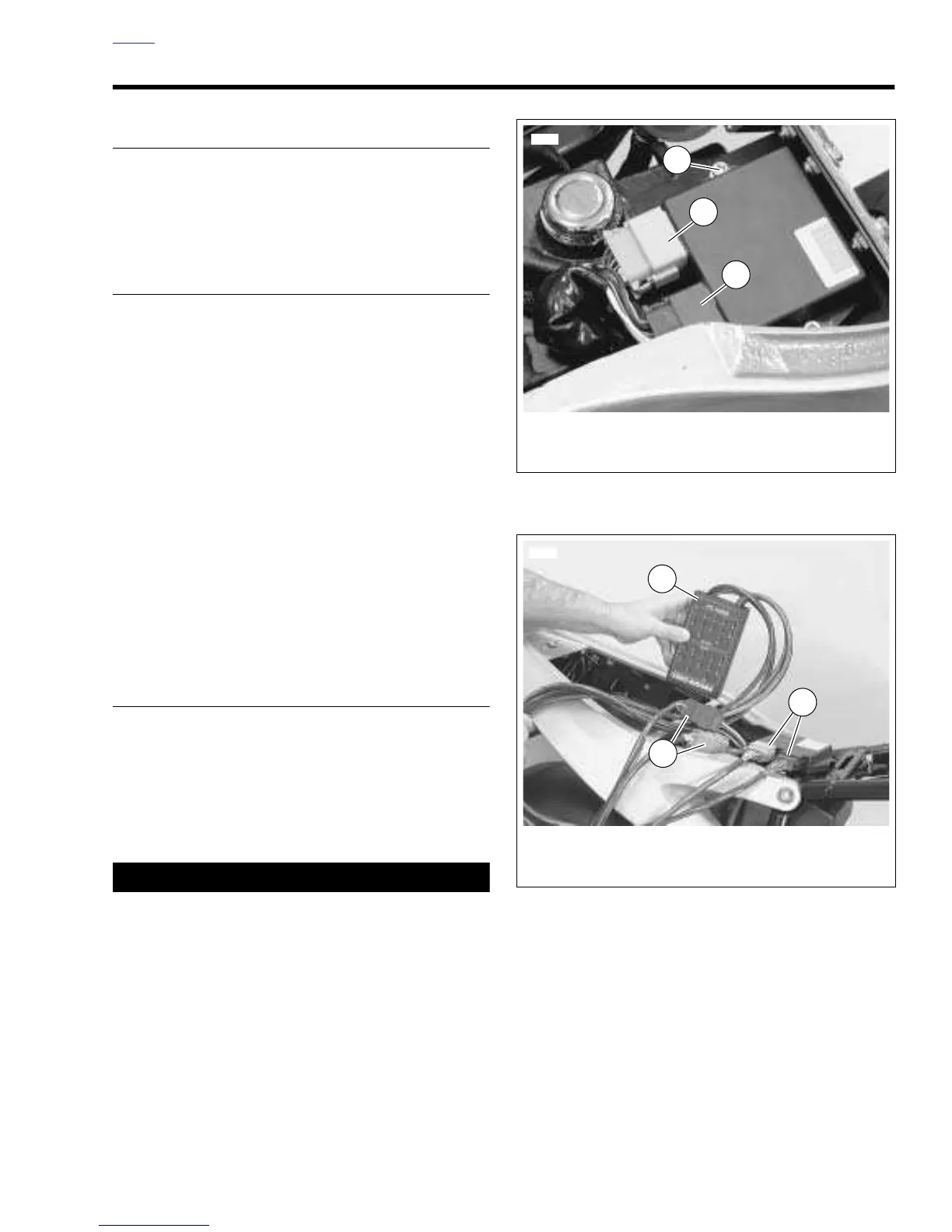

Figure 4-13. ECM Connectors
Figure 4-14. Installed Breakout Box
