SPEEDOMETER PERFORMANCE CHECK 7.19
GENERAL
See
Figure 7-64. Use the SPEEDOMETER TESTER (Part
No. HD-41354) for speedometer diagnostics. These diagnos-
tics may include:
● Checking speedometer operation.
● Testing speedometer needle sweeping action.
The tester generates a simulated speedometer sensor signal.
This signal aids in determining whether speedometer
replacement is necessary. It can also be used to simulate
running engine conditions for ignition system troubleshooting.
NOTES
● Use the following procedures in conjunction with the
manual supplied with the speedometer tester.
● Te st results may be inaccurate if tester battery is low.
TESTING
NOTE
The SPEEDOMETER TESTER (Part No. HD-41354) cannot
be used to verify the calibration of a speedometer and it will
not verify the speedometer’s function to support legal pro-
ceedings. It’s purpose is to verify speedometer function when
performing service diagnosis or repair. It can also assist in
determining if speedometer replacement is necessary.
Speedometer Operation Test
1. See
Figure 7-65. Locate the 3-place speedometer con-
nector [65] under the battery tray and disconnect. Attach
speedometer tester connector.
2. Place speedometer tester power switch in the ON posi-
tion. Place signal switch in the OUT position.
3. Turn vehicle ignition switch ON.
4. Begin test.
a. Press ENTER on the tester keypad.
b. Enter a frequency from
Tabl e 7-7. Note that different
markets use different frequencies.
c. Verify that speedometer display reads the corre-
sponding speed. To change the test frequency,
press CLEAR to cancel and enter the new fre-
quency. Press ENTER to begin and reverify.
NOTE
The speedometer should be accurate within 0-4 MPH (0-
6.5 KPH).

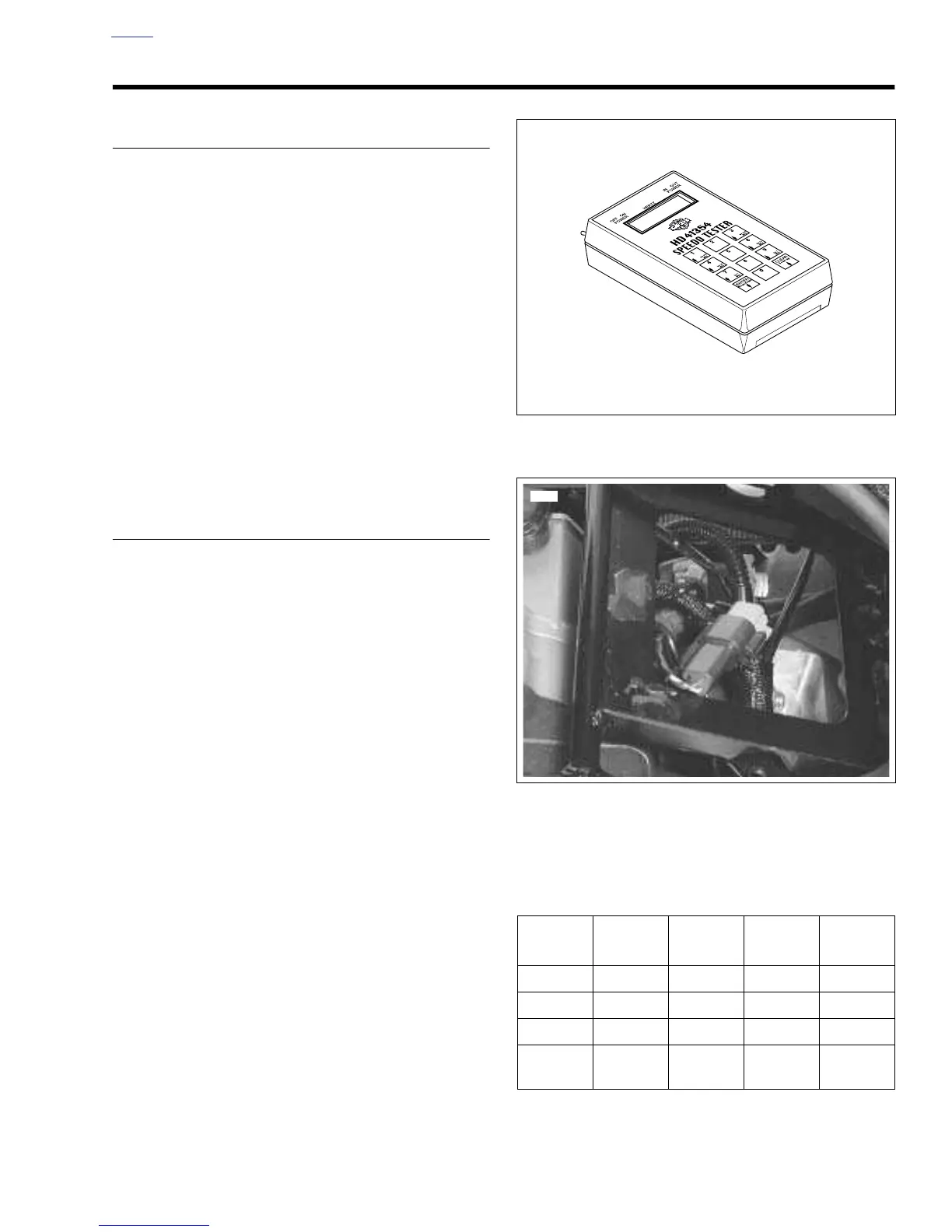

Figure 7-64. Speedometer Tester (Part No. HD-41354)
Figure 7-65. Speedometer Sensor Connector
(Battery Removed For Illustration Purposes Only)
Table 7-7. Speedometer Test
Frequency in Hertz (Hz)
MARKET
20 MPH
(30 KPH)
40 MPH
(60 KPH)
60 MPH
(100 KPH)
80 MPH
(130 KPH)
USA 432 864 1296 1728
ENG 362 725 1088 1454
AUS, EUR 340 680 1134 1474
CAN,
JPN, NZ
405 810 1350 1755
