TIRE SPECIFICATIONS 2.2
GENERAL
11WARNING1WARNING
Tires must be correctly matched to wheel rims. Only the
tires listed in the fitment tables below can be used for
replacement. Mismatching tires and rims can cause dam-
age to the tire bead during mounting. Using tires other
than those specified can adversely affect motorcycle
handling and could result in death or serious injury.
Tire sizes are molded on the sidewall. Rim size and contour
are marked on the rim’s exterior surface. See
Figure 2-1.
Example: MT 3.5 x 17.0 DOT
● MT designates the rim contour.
● 3.5 is the width of the bead seat measured in inches.
● 17.0 is the normal diameter of the rim in inches, mea-
sured at the bead seat diameter.
● DOT means that the rim meets Department of Transpor-
tation Federal Motor Vehicle Safety Standards.
See the tables below.

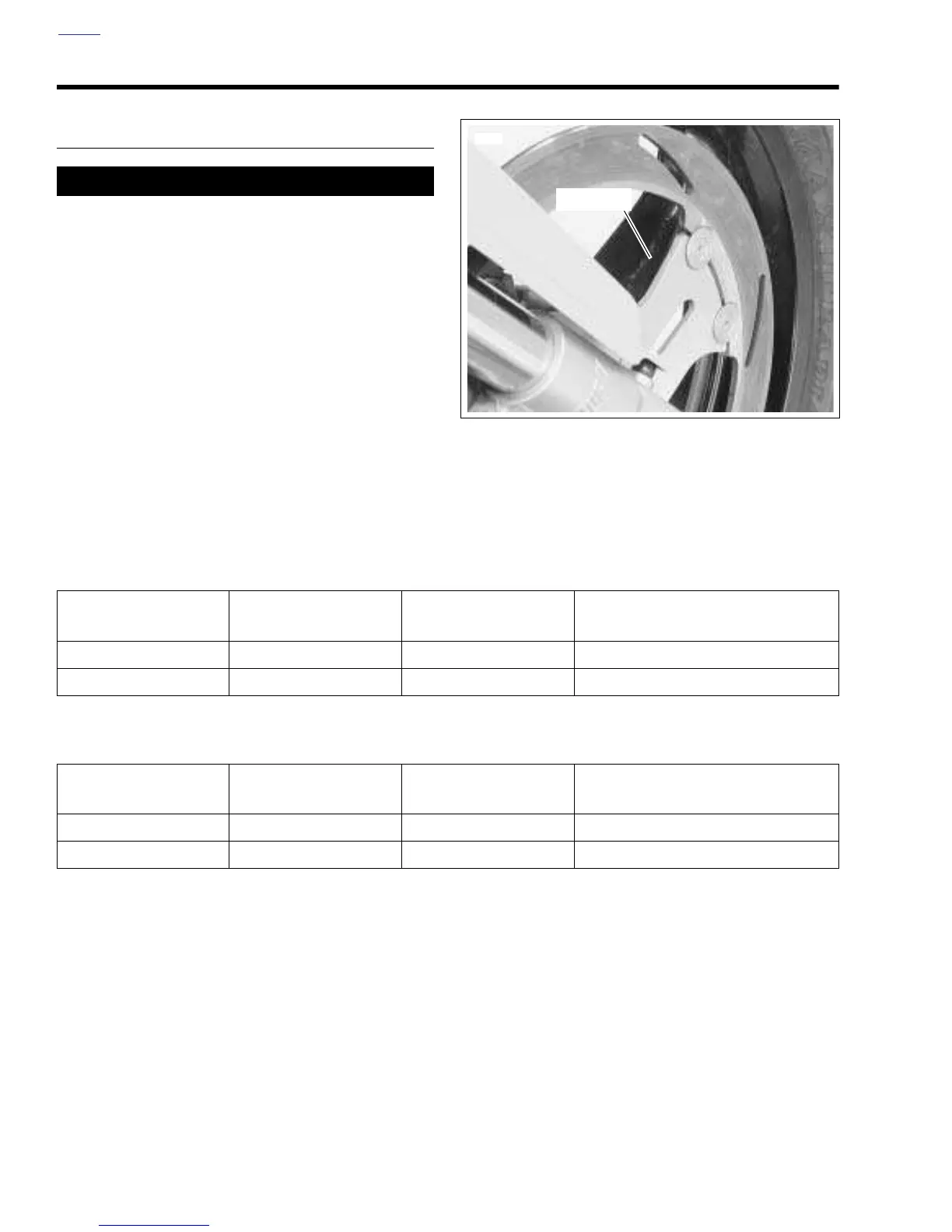

Figure 2-1. Rim Markings
Markings
7040
Table 2-1. Tire Fitment-Tubeless Cast Wheels
WHEEL SIZE
& POSITION
CONTOUR &
RIM SIZE
RIM VALVE
HOLE DIAMETER
DUNLOP SPORTMAX RADIAL II
TIRE SIZE
17 in. – Front MT 3.5 x 17.0 DOT 0.33 in. 120/70 ZR17 D207F
17 in. – Rear MT 5.0 x 17.0 DOT 0.33 in. 170/60 ZR17 D207
Table 2-2. Tire Fitment-Tubeless Aluminum P/M Wheels
WHEEL SIZE
& POSITION
CONTOUR &
RIM SIZE
RIM VALVE
HOLE DIAMETER
DUNLOP SPORTMAX RADIAL II
TIRE SIZE
17 in. – Front MT 3.5 x 17.0 DOT 0.33 in. 120/70 ZR17 D207F
17 in. – Rear MT 5.5 x 17.0 DOT 0.33 in. 170/60 ZR17 D207
