ELECTRONIC CONTROL MODULE 4.29
REMOVAL
1. Remove seat. See
2.40 SEAT.
2. See Figure 4-68. Remove two screws and washers (3) to
detach ECM from bracket.
3. Unplug ECM connectors [10] and [11].
INSTALLATION
1. See
Figure 4-68. Attach ECM connectors [10] and [11].
2. Align ECM with bracket mounting holes. Install using two
screws and washers (3).
3. If installing a new ECM, calibrate throttle position sensor
using SCANALYZER (Part No. HD-41325). See
4.36
THROTTLE POSITION SENSOR.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation and startle the rider, causing
loss of control which could result in death or serious
injury.
4. Install seat. See
2.40 SEAT.

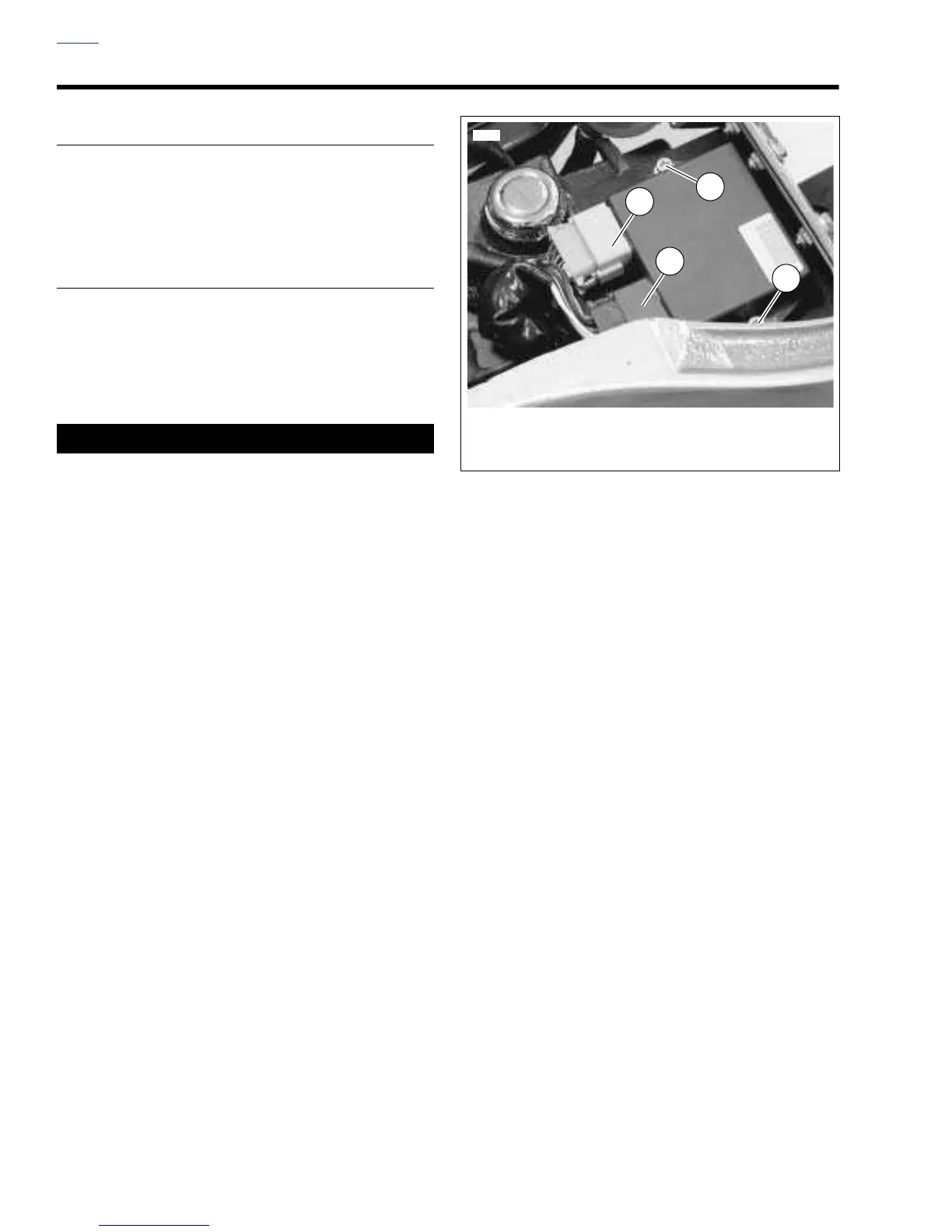

Figure 4-68. ECM
1. ECM Connector [10] (Black)
2. ECM Connector [11] (Gray)
3. Screw and Washer (2)
6935
1
2
3
3
