6-24 2002 Buell X1: Drive/Transmission
HOME
MAINSHAFT AND COUNTERSHAFT 6.9
DISASSEMBLY
1. Remove transmission assembly. See
6.7 TRANSMIS-
SION CASE

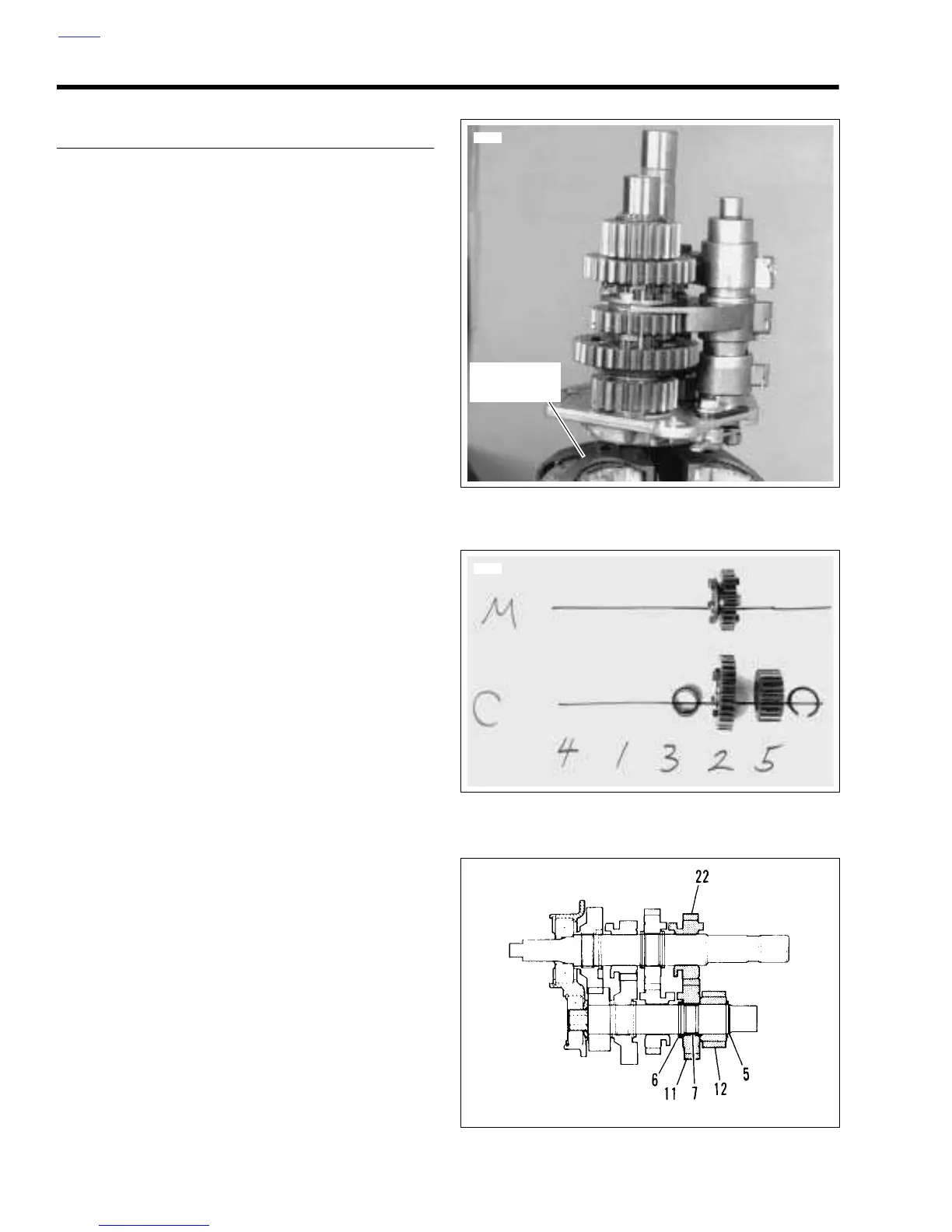

. See Figure 6-36. Clamp transmission
assembly in a vise, with protective jaws, to work on dis-
assembly.
2. Remove shifter forks and drum as described under 6.8
SHIFTER FORKS AND DRUM.
NOTE
As the transmission runs, each part develops a certain wear
pattern and a kind of “set” with its mating parts. For this rea-
son, it is important that each component be reinstalled in its
original location and facing its original direction.
3. See Figure 6-37. As each component is removed, place
it on a clean surface in the exact order of removal.
See
Figure 6-38. Using RETAINING RING PLIERS (Part
No. J-5586) remove and discard retaining ring (5) next to
countershaft 5th gear (12). Slide countershaft 5th (12),
mainshaft 2nd (22) and countershaft 2nd (11) off end of
shafts.
Figure 6-36.
Figure 6-37.
Figure 6-38.
3552
Protective
Jaws
3559
xlh0626
