BELT GUARDS 2.33
REMOVAL
1. See
Figure 2-117. Remove two screws (1) and washers
(2) securing lower belt guard (3) to swingarm.
2. Remove lower belt guard (3), stone guard (4) and well-
nuts (5).
INSTALLATION
1. See
Figure 2-118. Position stone guard (4) with wellnuts
(5) and lower belt guard (3) on swingarm.
2. Secure with two screws (1) and washers (2).

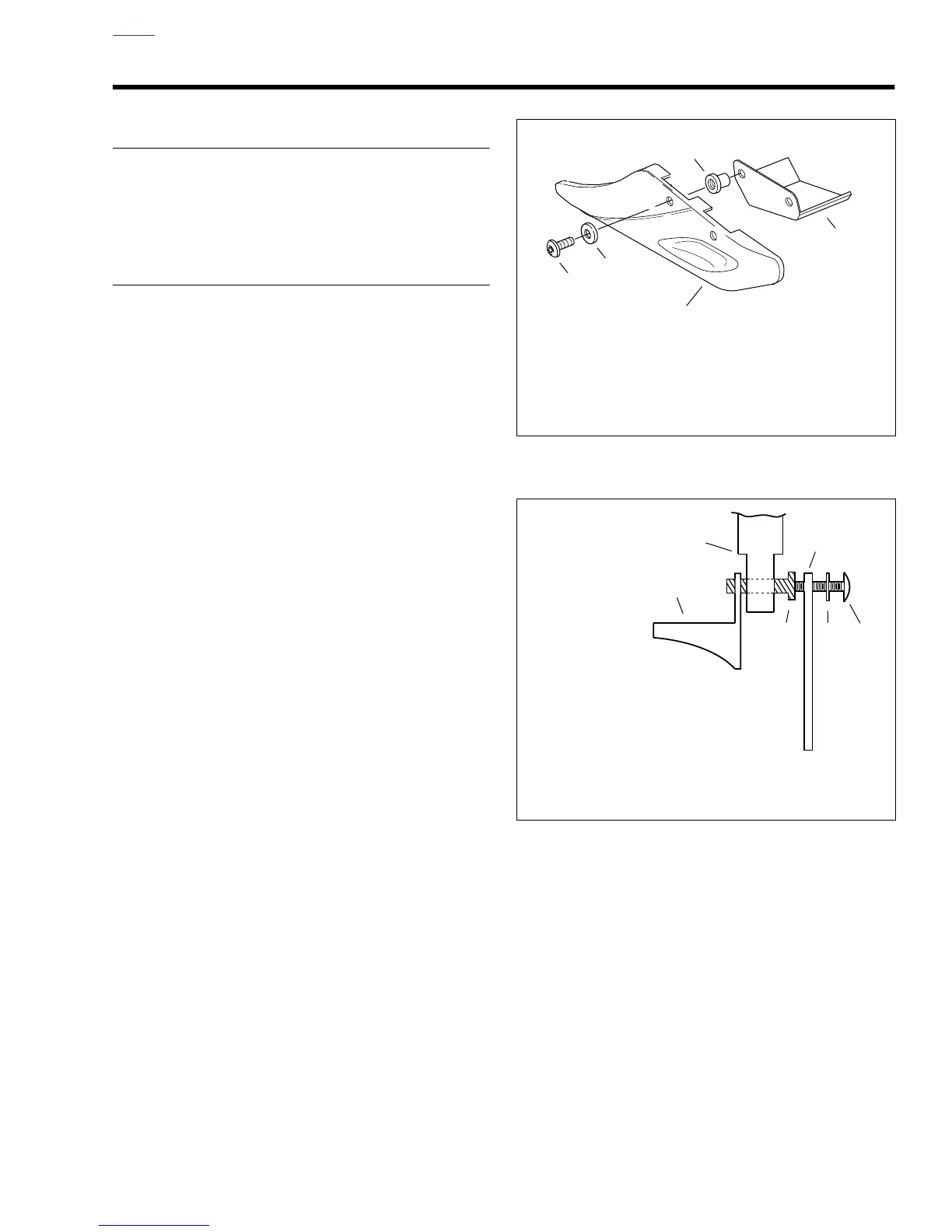

Figure 2-117. Belt Guard and Stone Guard Installation
Figure 2-118. Stone Guard and Belt Guard Mounting
b0612a2x
1. Screw (2)
2. Washer (2)
3. Lower Belt Guard
4. Stone Guard
5. Wellnut (2)
1
4
3
2
5
1. Screw (2)
2. Washer (2)
3. Lower Belt Guard
4. Stone Guard
5. Wellnut (2)
2 1
3
5
4
Swingarm
b0729x2x
