Buell X1 2002 - Rear Fender

2-72 2002 Buell X1: Chassis
HOME
REAR FENDER 2.32
REMOVAL
1. See
Figure 2-115. Loosen two bolts (1) securing footrest
mounts (2) on both sides.
2. See
Figure 2-116. Remove two screws (1) and washers
(2) from right side wellnuts (4).
3. Remove screw (5) and washer (6) from front wellnut (7).
4. Remove screw (8) washer (9) and clamp from left side.
5. Pull fender (3) over rear tire.
INSTALLATION
1. See
Figure 2-115. Position fender (3) over tire, making
sure that the brake line (4) is on the inside of the fender
as shown.
2. Have someone sit on the vehicle to compress the motor-
cycle’s suspension.
3. See
Figure 2-116. Install hardware in reverse order.
Apply LOCTITE THREADLOCKER 243 (blue) to all
screws.
4. Attach footrest mounts on both sides. Tighten bolts to 13-
16 ft-lbs (18-22 Nm).

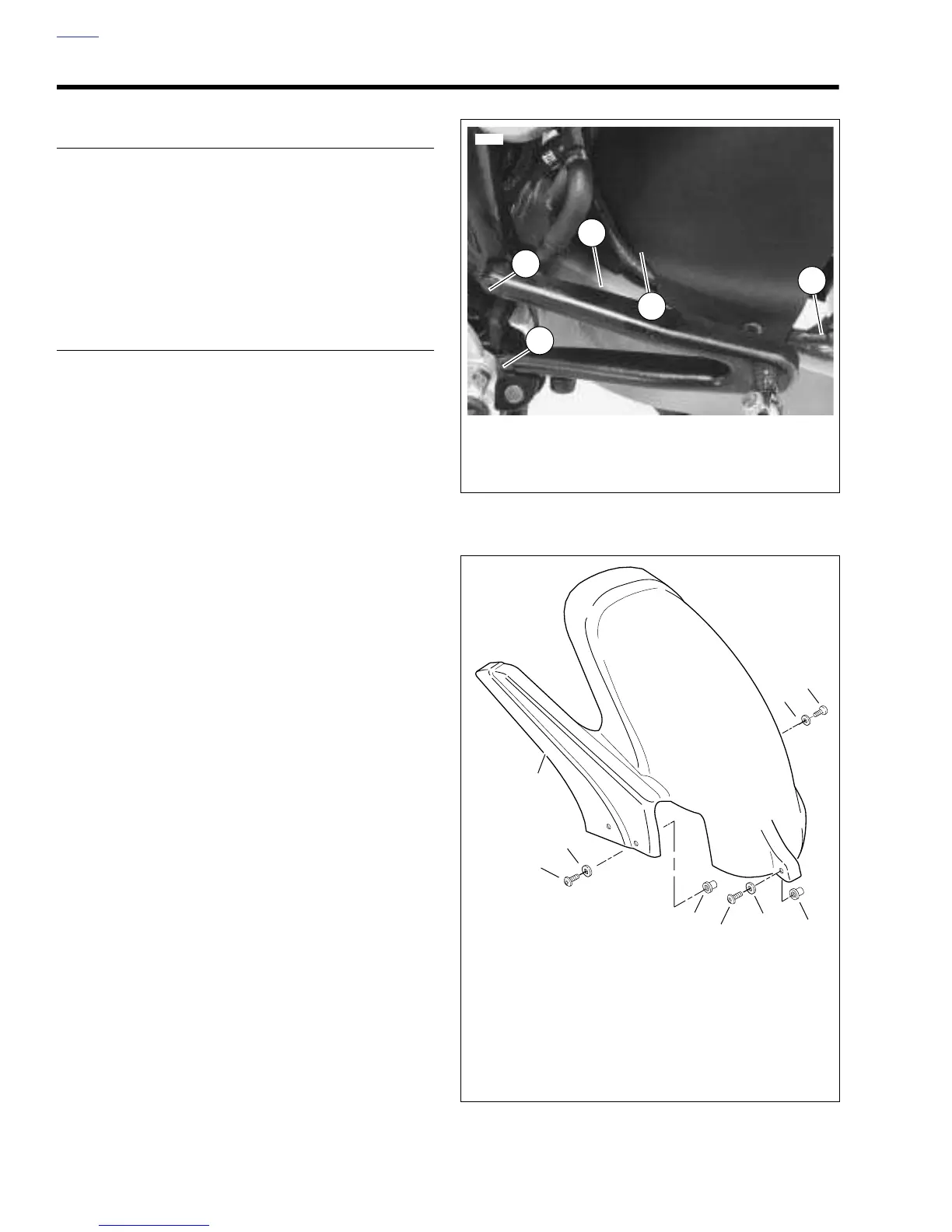

Figure 2-115. Rear Fender With Brake Line (Left Side)
Figure 2-116. Rear Fender
1
2
6820
1. Bolts (2)
2. Passenger Footrest Mount
3. Fender
4. Brake Line
1
4
3
1. Screw (2)
2. Washer (2)
3. Fender
4. Wellnut (2)
5. Screw
6. Washer
7. Wellnut
8. Screw
9. Washer
b0608x2x
1
2
3
4
5
6
7
8
9
