2002 Buell X1: Drive/Transmission 6-25
HOME

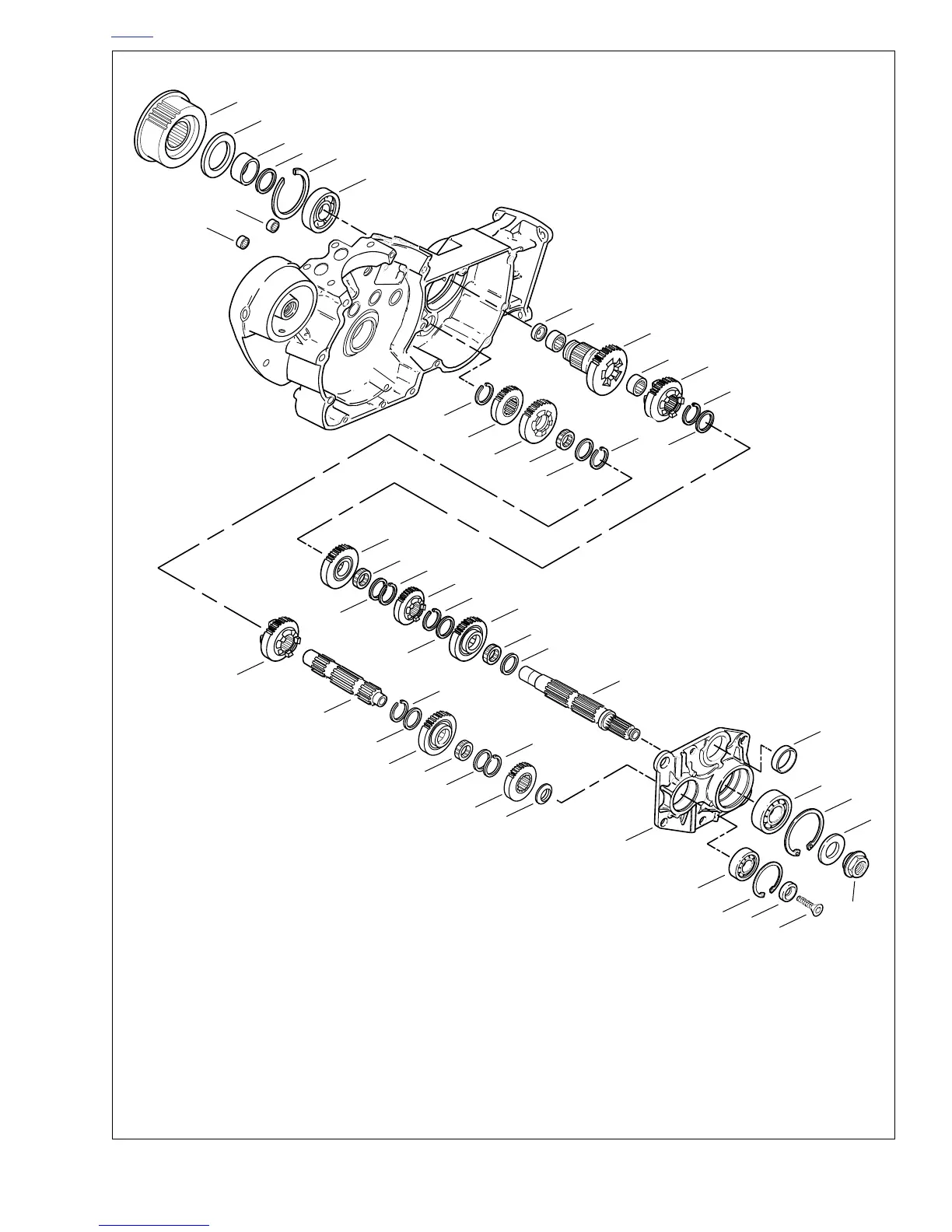

Figure 6-39. Transmission Assembly
1. Bearing
2. Door, Access
3. Spacer, Bevel
4. Gear, Countershaft 4th
5. Ring, Retaining (7)
6. Washer, Thrust (6)
7. Bearing, Split (4)
8. Gear, Countershaft 1st
9. Countershaft
10. Gear, Countershaft 3rd
11. Gear, Countershaft 2nd
12. Gear, Countershaft 5th
13. Bearing, Closed (counter-
shaft)
14. Sprocket, Belt
15. Seal, Oil
16. Spacer (Belt Drive)
17. Ring, Quad
18. Ring, Retaining
19. Bearing, Ball
20. Bearing, Needle
21. Gear, Mainshaft 5th
22. Gear, Mainshaft 2nd
23. Gear, Mainshaft 3rd
24. Gear, Mainshaft 1st
25. Gear, Mainshaft 4th
26. Spacer
27. Mainshaft
28. Bearing
29. Ring, Retaining
30. Seal
31. Retention Collar
32. TORX Screw
33. Ring, Retaining
34. Nut, Mainshaft
35. Washer, Spring
36. Bushin
g
