2-60 2002 Buell X1: Chassis
HOME
5. Route idle and throttle control cables.
a. See
Figure 2-93. Cables must be routed forward
from throttle control grip, forward of upper triple
clamp and to the left.
b. See Figure 2-94. Continue between the left side of
frame steering head and left frame tube. Cables
should be above and to the left of the D-shaped
washer behind the steering head.
c. See Figure 2-95. Route cables below the fuel tank
and continue downward.
6. Attach throttle cables to throttle body and adjust. See
1.20 THROTTLE CABLES.
● See Figure 2-96. Attach throttle cable clamp to fer-
rules with screw (arrow on clamp points up).
7. Install air cleaner assembly. See
4.42 AIR CLEANER.

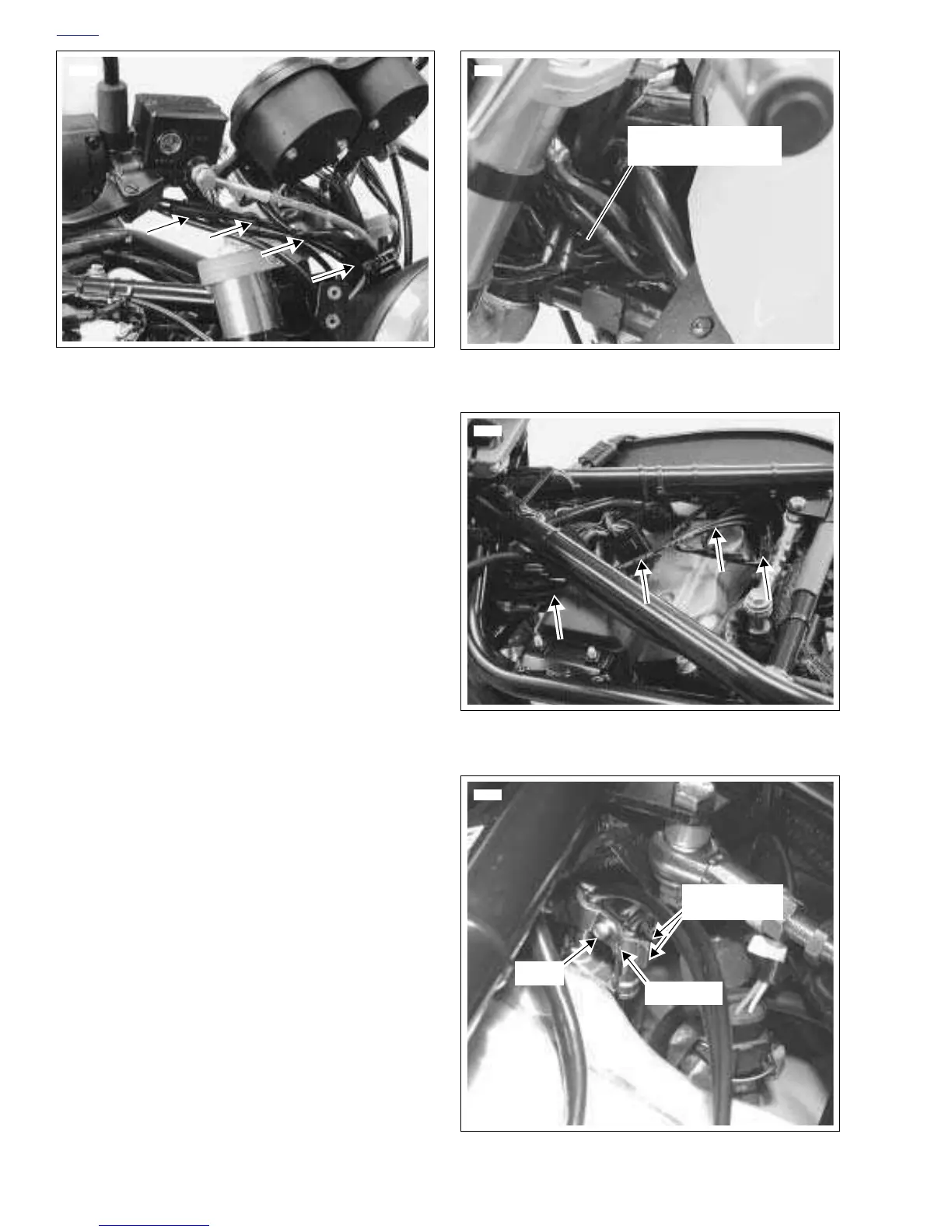

Figure 2-93. Throttle Cable/Handlebar Routing
6855
Figure 2-94. Steering Neck Routing
Figure 2-95. Throttle Body Routing
Figure 2-96. Throttle Cable Clamps
7058
Cables (behind wir-
ing harness)
6856
8204
Throttle Cable
Clamps
Arrow (Up)
Screw
