2-66 2002 Buell X1: Chassis
HOME

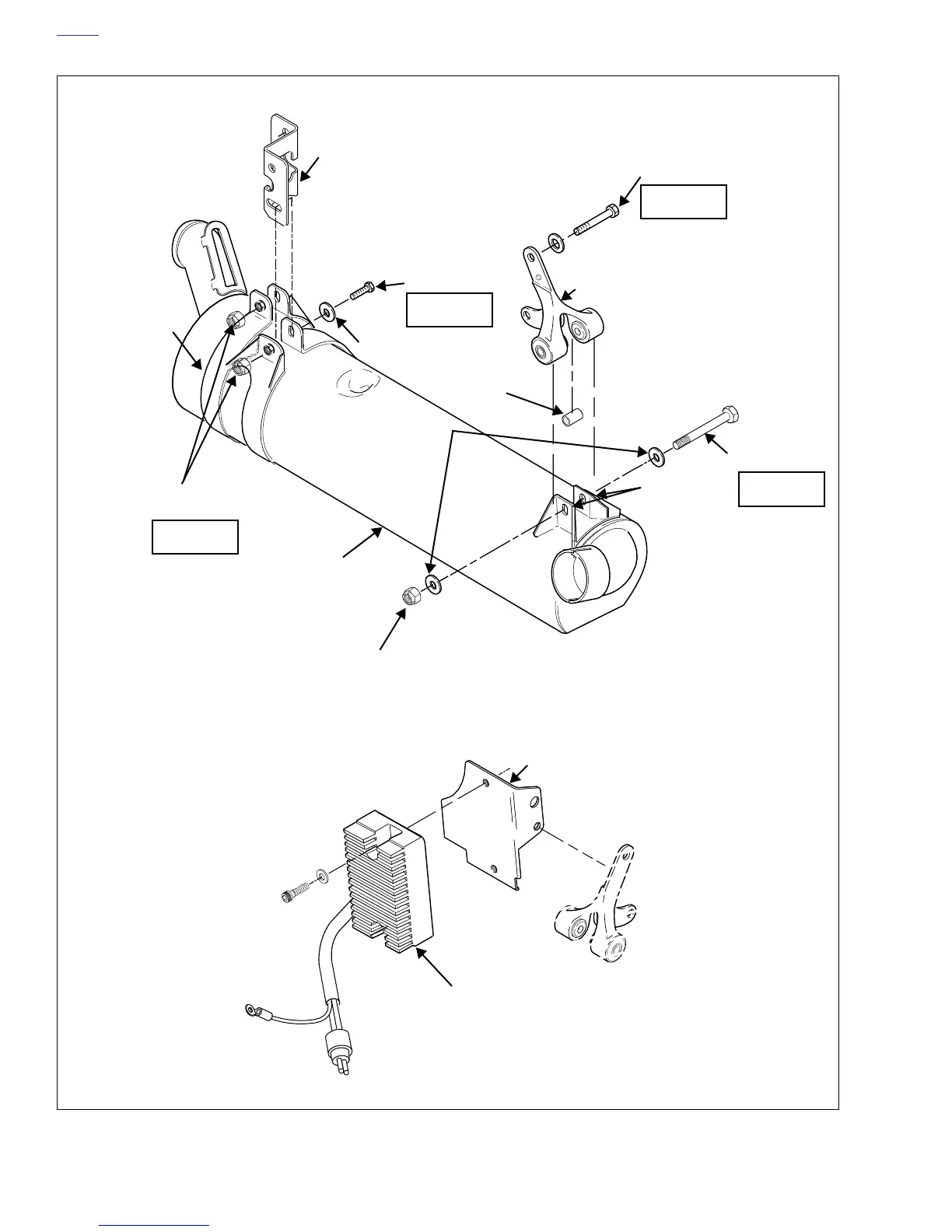

Figure 2-107. Exhaust System
b0835x2x
Header
Support Mount
Grade 8 Bolt
Washers (2)
Metal Locknut
Metal
Bolts (2)
Washer (2)
Z Bracket
Muffler
Voltage
Regulator
Voltage Regulator
Mounting Bracket
Header Support Mount
Bolts (2)
Rear Muffler
Mount Bracket
Mount
Tabs
Locknuts (2)
Spacer
20-22 ft-lbs
(27-30 Nm)
22-24 ft-lbs
(30-33 Nm)
22-24 ft-lbs
(30-33 Nm)
30-33 ft-lbs
(41-45 Nm)
