4-42 2002 Buell X1: Fuel System
HOME

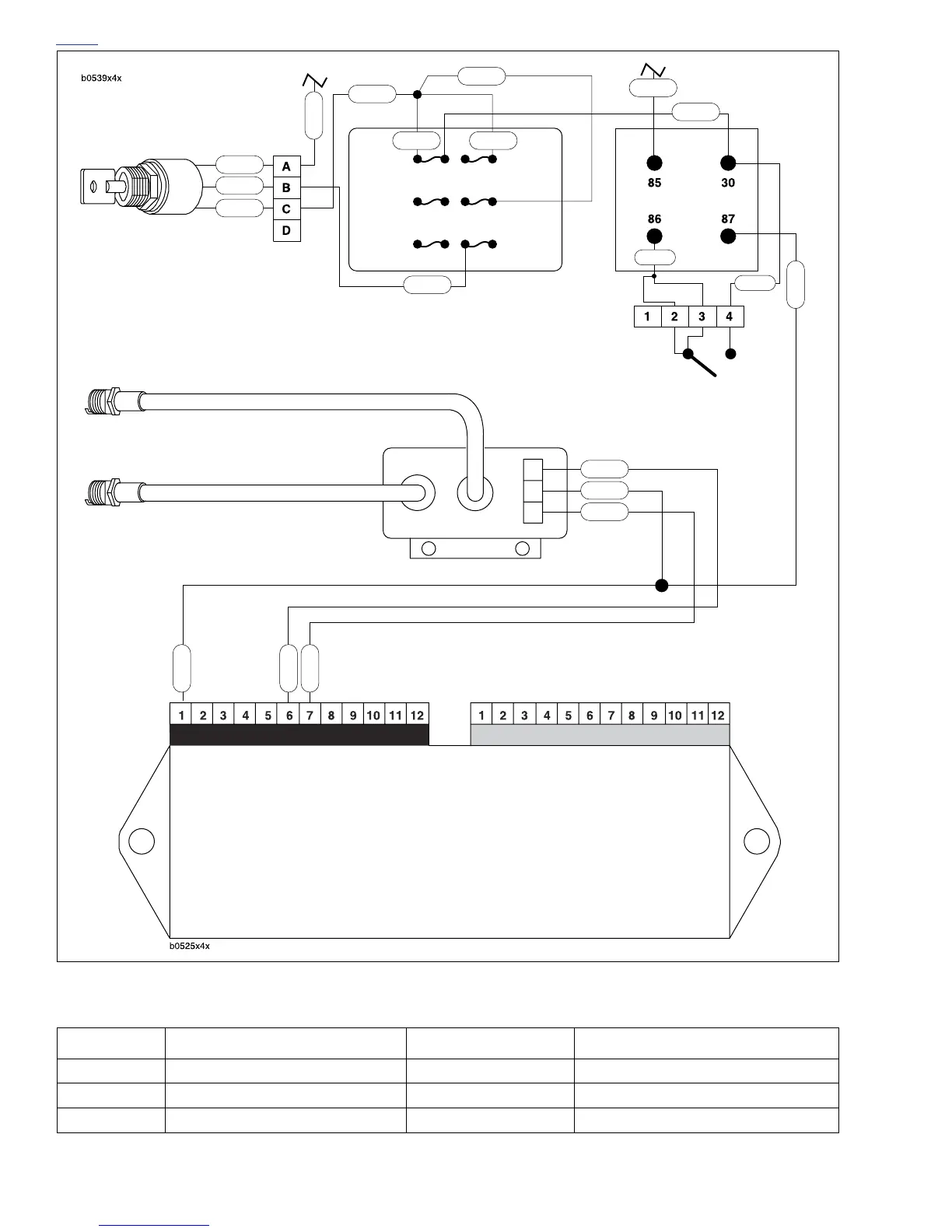

Figure 4-39. Ignition Coil Circuit
Table 4-13. Wire Harness Connectors in Figure 4-39.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[22] Right handlebar switch 4-place under fuel cell
[83] Coil 3-place Packard under fuel cell, left side
b0544x4x
ABC
FR
Ignition Coil [83]
Electronic Control Module
(ECM)
Connector [10] Connector [11]
GY
GY
BE/O
BE/O
R
R
R/GY
R/BK
R/GY
R/BK
R/BK
R/BK R/BK
GY/O
Ignition 20A
Memory 15A
Spare 15A
Lights 15A
Instruments 15A
Accessory 15A
Ignition
Switch
[33]
Engine Stop
Switch [22]
TN/W
Ignition Relay
W/BK
GY/O
To Main Circuit
Breaker
To Starter
Interlock Circuit
GY
Y/BE
Y/BE
