4-50 2002 Buell X1: Fuel System
HOME

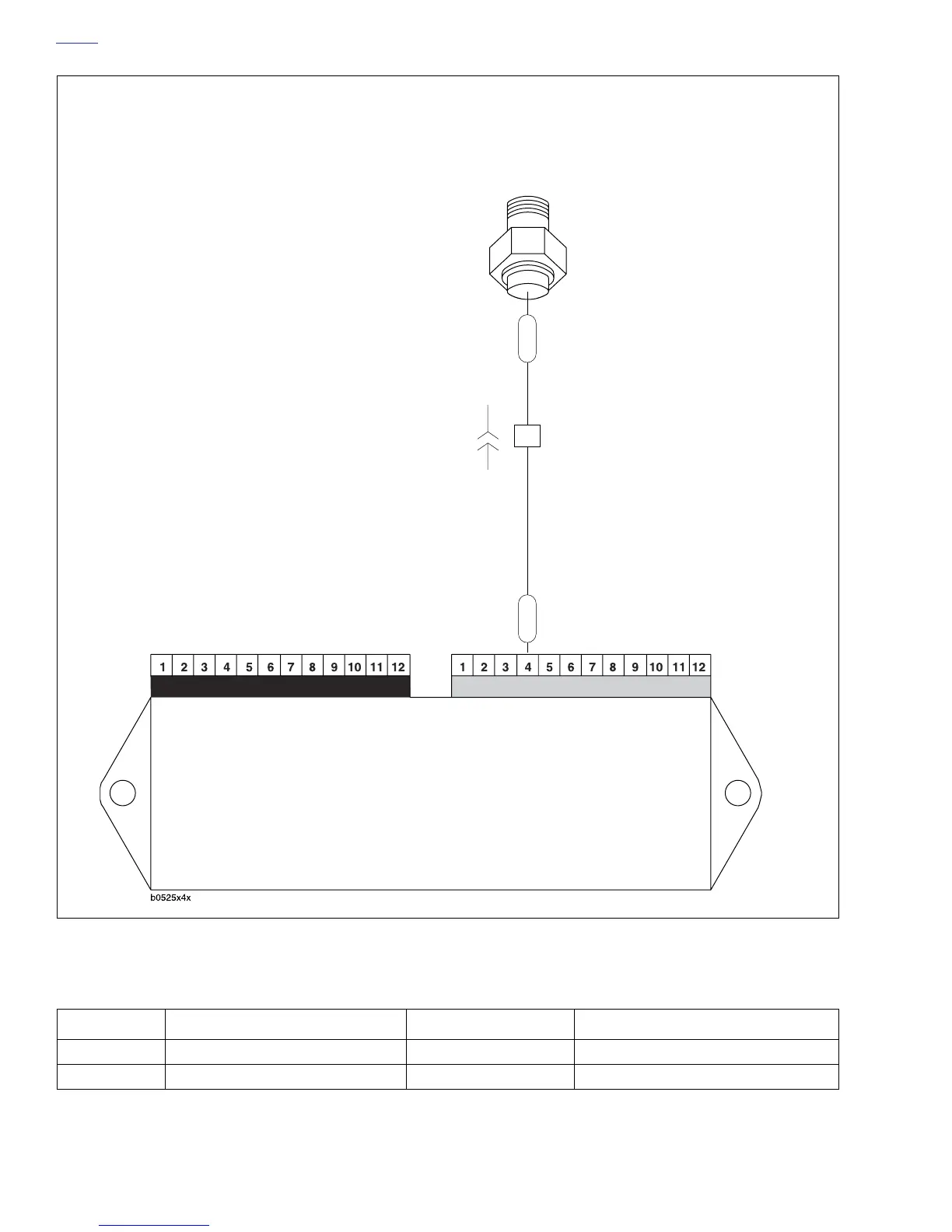

Figure 4-45. Oxygen Sensor Circuit
b0529x4x
Oxygen
Sensor [137]
Electronic Control Module
(ECM)
Connector [10] Connector [11]
V/GYV/GY
1
[137B]
[137A]
Table 4-15. Wire Harness Connectors in
Figure 4-45.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under seat
[137] Oxygen sensor 1-place above starter
