2002 Buell X1: Fuel System 4-55
HOME

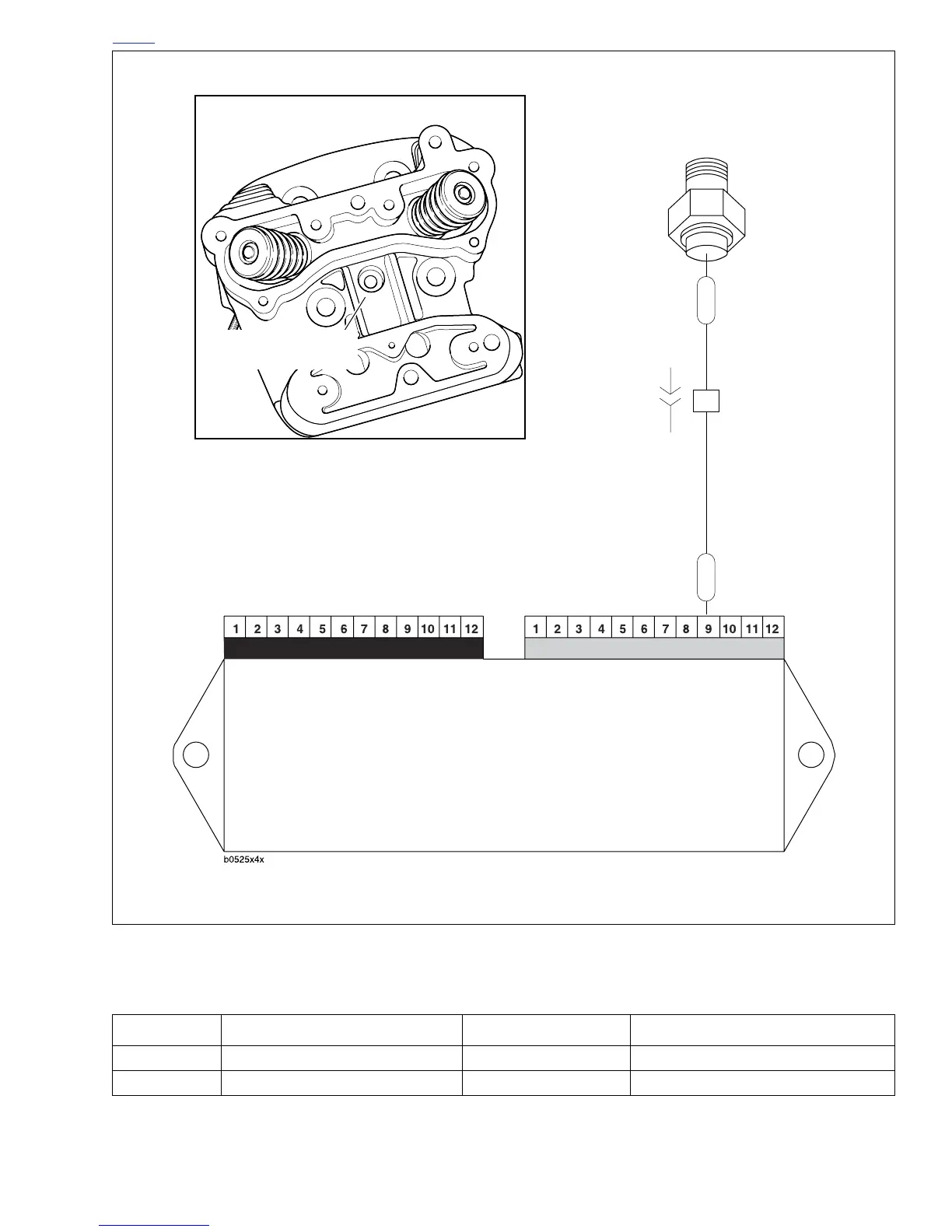

Figure 4-46. Engine Temperature Sensor Circuit
b0529x4x
Engine
Temperature
Sensor [90]
PK/Y
Electronic Control Module
(ECM)
Connector [10] Connector [11]
PK/Y
1
Engine Temperature
Sensor Location
b0801x4x
[90A]
[90B]
REAR CYLINDER
Table 4-17. Wire Harness Connectors in Figure 4-46.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under seat
[90] Engine temperature sensor 1-place bullet above rear cylinder head, left side
